Brake Control Power Supply: Components

WARNING: This page is about a different variant/trim than selected.

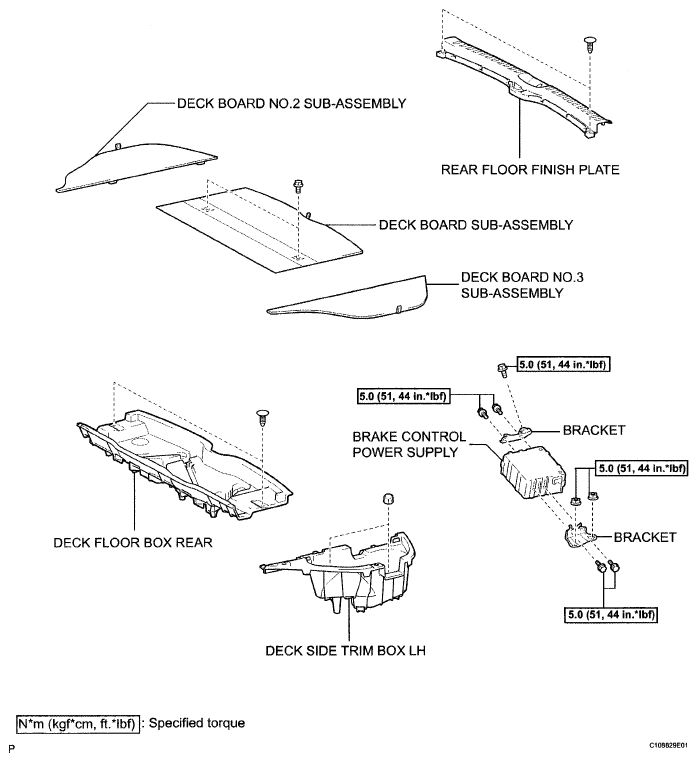

Fig 1: Identifying Brake Control Power Supply Replacement Components With Torque Specifications (1 Of 2)
G05202844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

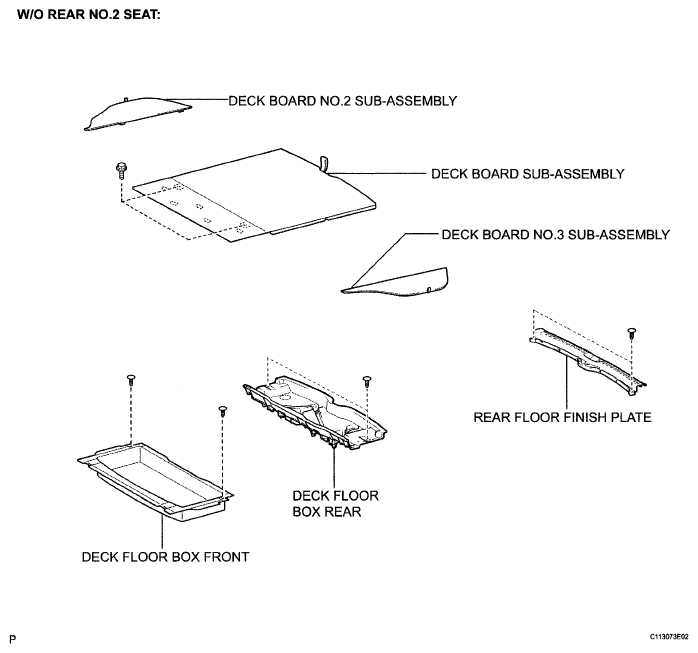

Fig 2: Identifying Brake Control Power Supply Replacement Components (2 Of 2)
G05202825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
