Cruise Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

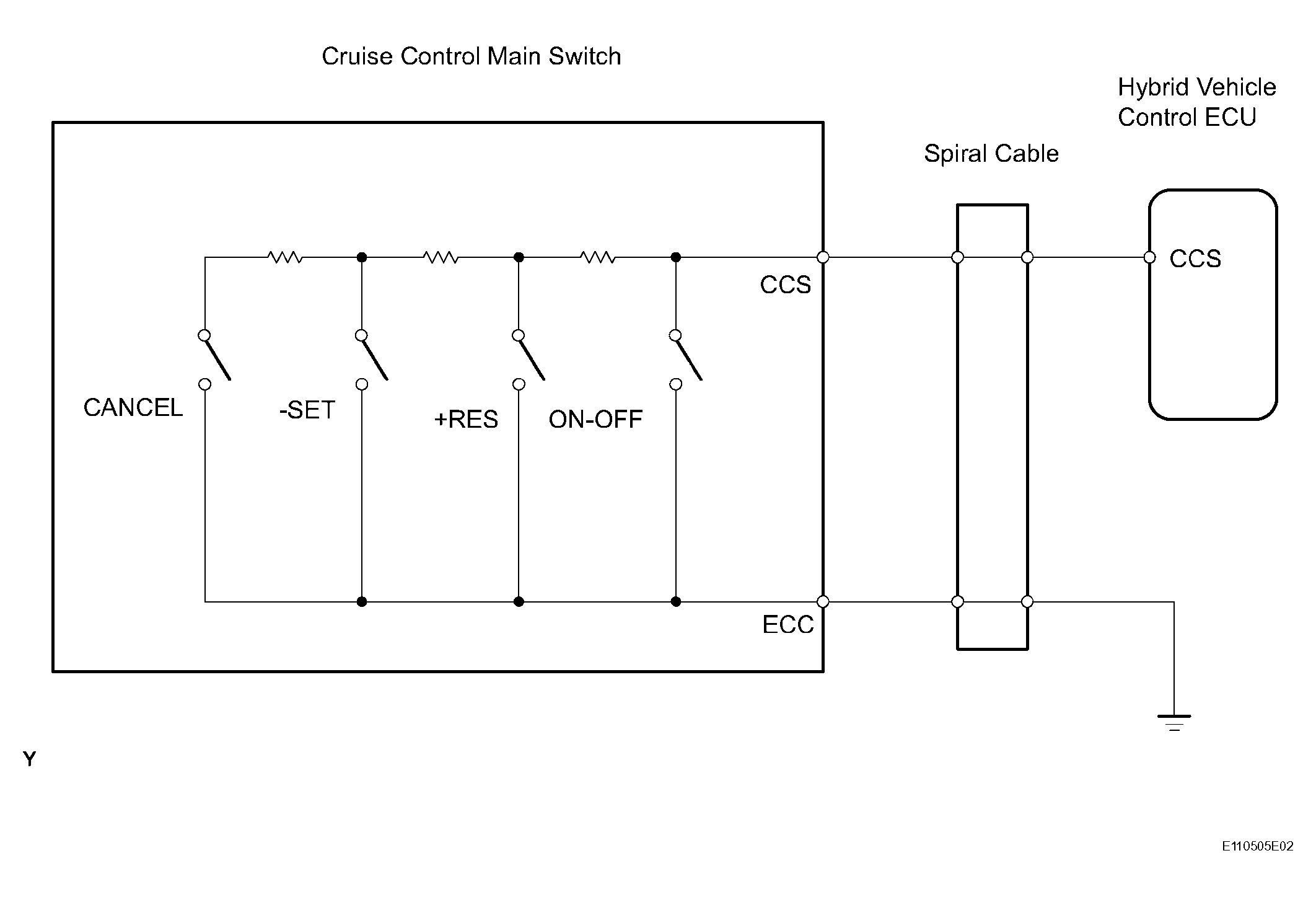

Fig 1: Identifying Cruise Control Switch Circuit Diagram
G04475755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
