DTC Check / Clear

WARNING: This page is about a different car, the 2007 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Read DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester (with CAN VIM) operator's manual for further details.

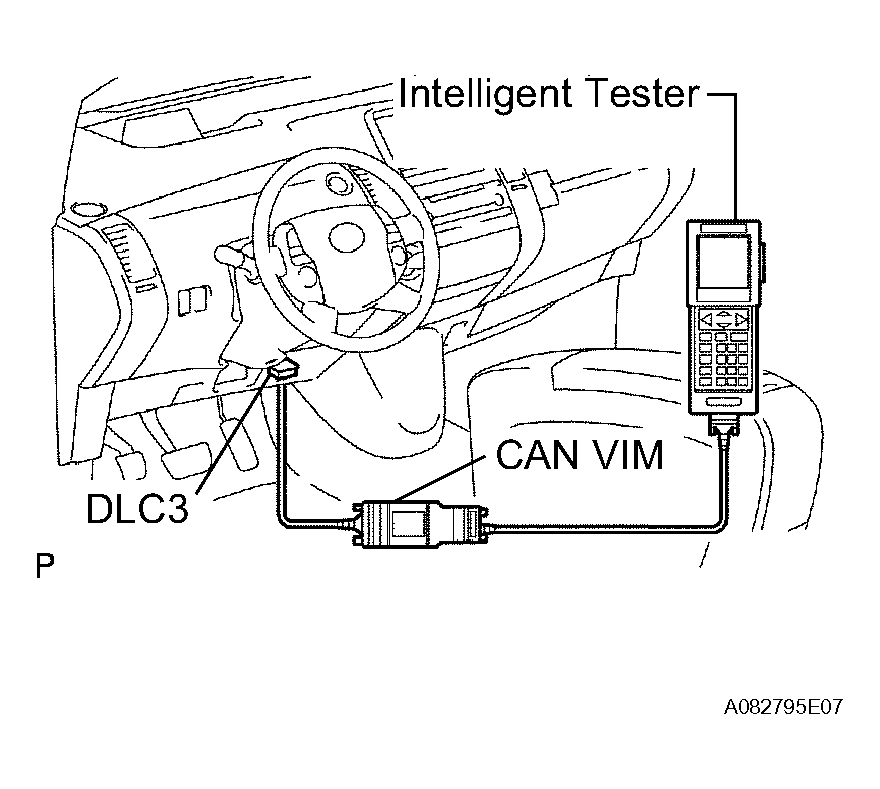

  Fig 1: Connecting Intelligent Tester Cable (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC CLEAR
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Erase the DTCs by following the direction on the tester screen.
  HINT:

  Refer to the intelligent tester (with CAN VIM) operator's manual for further details.

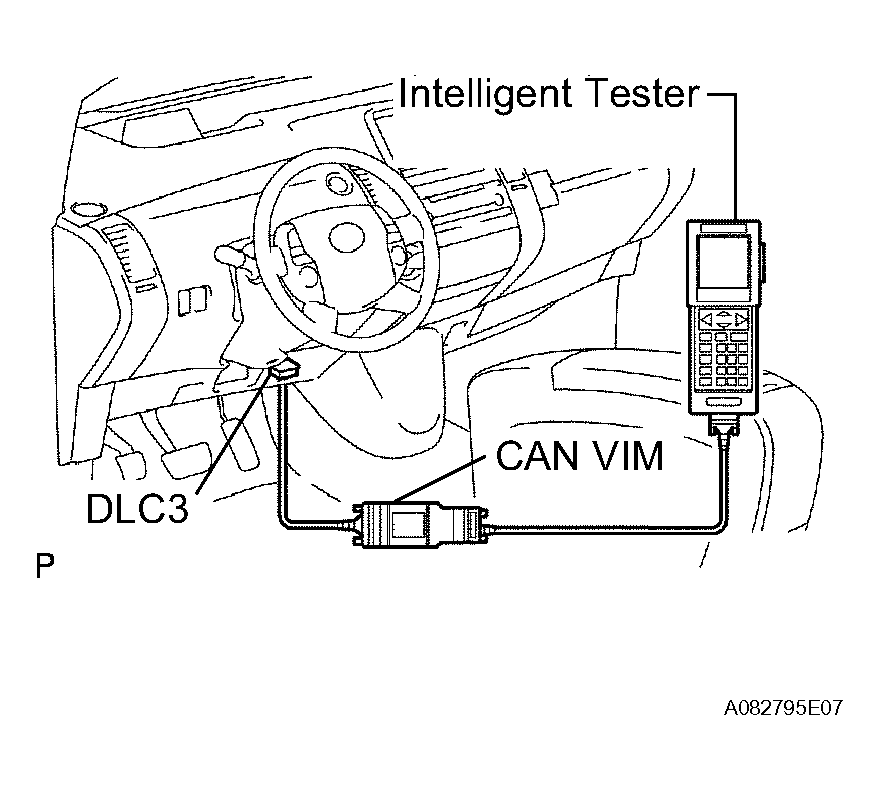

  Fig 2: Connecting Intelligent Tester Cable (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
