Throttle Body: Components

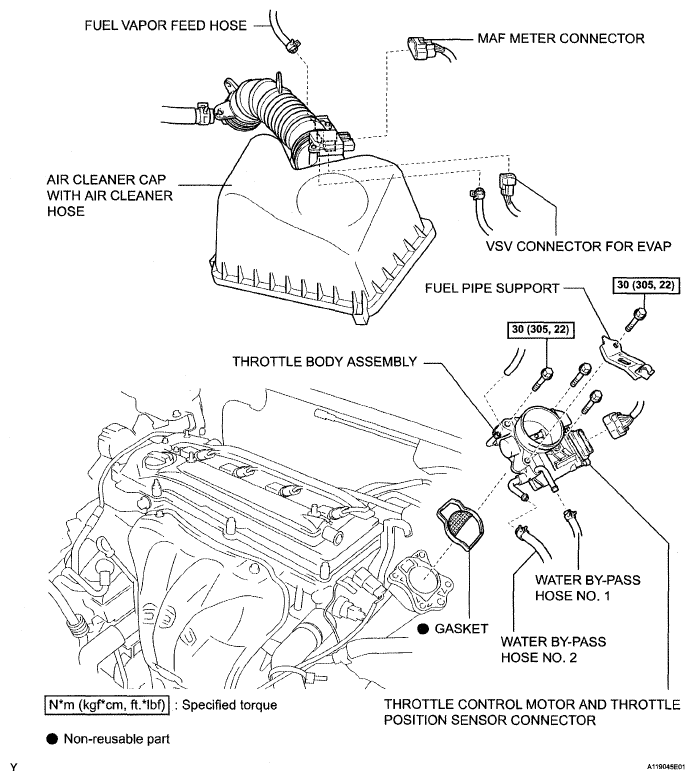

Fig 1: Throttle Body Replacement Components With Torque Specifications

G05245484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
