Ultrasonic Sensor: Components

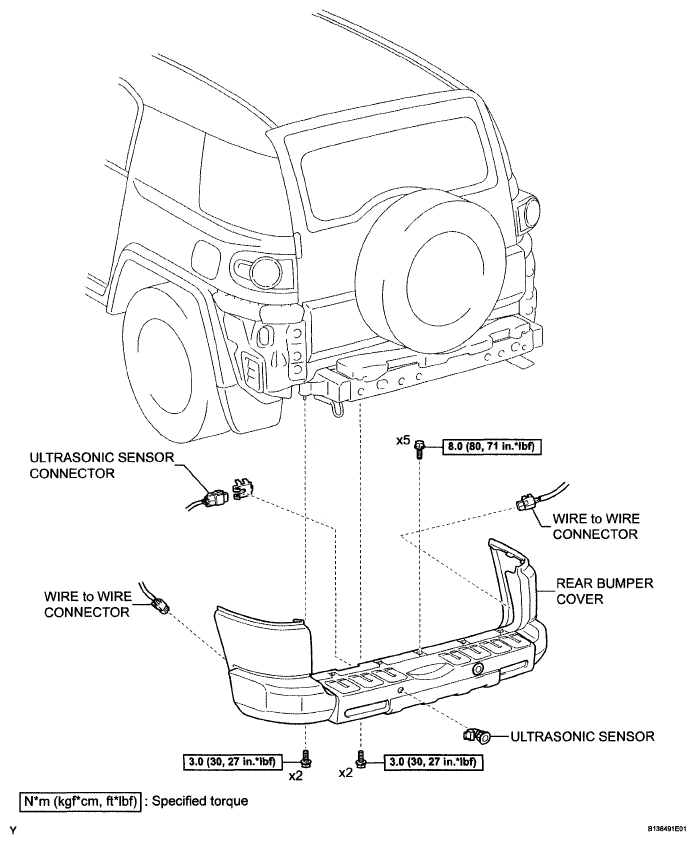

Fig 1: Ultrasonic Sensor Replacement Components With Torque Specifications

G05114213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
