Inspection Procedure

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the supplemental restraint system (See PRECAUTION ).
  1. CHECK ILLUMINATION
    1. Check if the illumination for the radio receiver, steering pad switch, or others (back sonar switch, hazard switch, etc.) comes on when the light control switch is turned to the HEAD or TAIL position.

      Result

      RESULT REFERENCE

      Result Proceed to
      Illumination comes on for all components except steering pad switch. A
      Illumination comes on for all components except radio receiver. B
      No Illumination comes on (radio receiver, back sonar switch, hazard switch, etc.). C

    B:  GO TO LIGHTING SYSTEM

    C:  Go to step  6

    A: Go TO NEXT STEP

  2. INSPECT STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch assembly connector.
    2. Connect the positive (+) lead to terminal ILL+ and the negative (-) lead to terminal EAU of the steering pad switch assembly connector.
      Fig 1: Identifying Steering Pad Switch Assembly Connector
      G05114048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check if the illumination for the steering pad switch assembly comes on.

      OK: Illumination for the steering pad switch assembly comes on.

    NG: REPLACE STEERING PAD SWITCH ASSEMBLY

    OK: Go TO NEXT STEP

  3. INSPECT SPIRAL CABLE
    1. Disconnect the E17 steering pad switch assembly and spiral cable connectors.

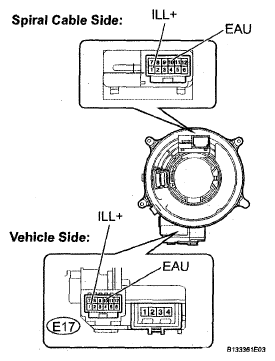

      Fig 2: Identifying Spiral Cable Connector Terminals
      G05114049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester connection Specified condition
      Terminal 10 (EAU) main switch side - EAU (E17-10) Below 1 Ω
      Terminal 1 (ILL+) main switch side - ILL+ (E17-1) Below 1 Ω
      NOTE: The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the page shown in the brackets.

      HINT:

    3. Reconnect the steering pad switch assembly connector.
    4. Reconnect the spiral cable connector.

    NG: REPLACE SPIRAL CABLE

    OK: Go TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (BATTERY - SPIRAL CABLE)
    1. Disconnect the E17 spiral cable connector.
      Fig 3: Identifying Spiral Cable Connector Terminals
      G05114050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester connection Condition Specified condition
      E17-1 (ILL+) - Body ground Light control SW TAIL or HEAD 11 to 14 V
    3. Reconnect the spiral cable connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - RADIO RECEIVER)
    1. Disconnect the E43 receiver connector.
    2. Disconnect the E17 spiral cable connector.
      Fig 4: Identifying Spiral Cable & Radio Receiver Connector Terminals
      G05114051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      E43-6 (SWG) - E17-10 (SWG) Below 1 Ω
      E43-6 (SWG) or E17-10 (SWG) - Body ground 10 kΩ or higher
    4. Reconnect the receiver connector.
    5. Reconnect the spiral cable connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE RADIO RECEIVER

  6. CHECK HARNESS AND CONNECTOR (BATTERY - RADIO RECEIVER)
    1. Disconnect the E41 receiver connector.
      Fig 5: Identifying Radio Receiver Connector Terminals
      G05114052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester connection Condition Specified condition
      E41-10 (ILL+) - Body ground Light control SW TAIL or HEAD 11 to 14 V
    3. Reconnect the receiver connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go TO NEXT STEP

  7. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - LIGHT CONTROL RHEOSTAT)
    1. Disconnect the E42 receiver connector.
    2. Disconnect the E4 light control rheostat connector.
      Fig 6: Identifying Radio Receiver & Light Control Rheostat Connector Terminals
      G05114053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      E42-6 (ILL-) - E4-3 (-) Below 1 Ω
      E42-6 (ILL-) or E4-3 (-) - Body ground 10 kΩ or higher
    4. Reconnect the receiver connector.
    5. Reconnect the light control rheostat connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: RADIO RECEIVER
