System Diagram

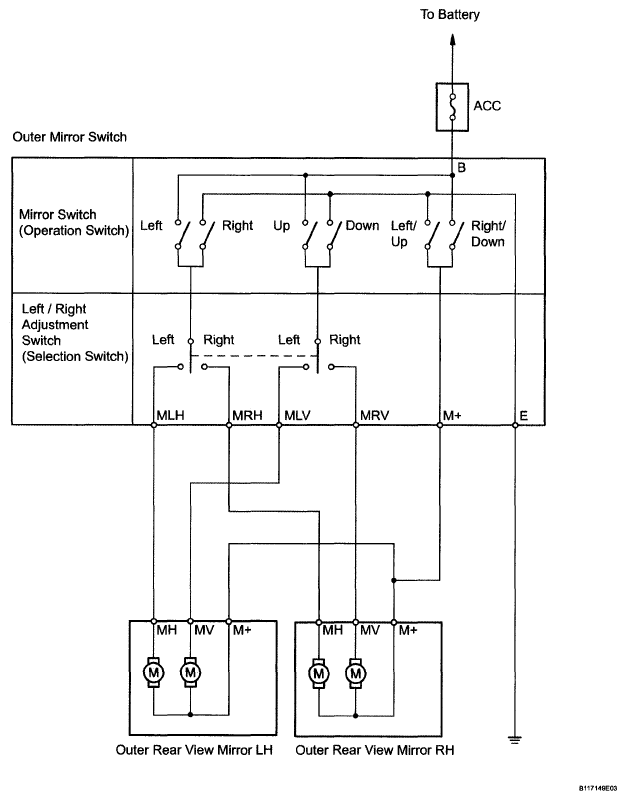

Fig 1: Identifying Power Mirror Control System Diagram

G05114397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
