Inspection Procedure

OK:

Each function of wireless door lock control system operates normally using transmitter switches  (see ON-VEHICLE INSPECTION  ).

OK: END

NG: Go TO NEXT STEP

1. After replacing the transmitter battery, check that the doors can be locked and unlocked using the transmitter switches.

   OK:

   Doors can be locked and unlocked with transmitter.

OK: END (TRANSMITTER BATTERY DEFECTIVE)

NG: Go TO NEXT STEP

1. Switch to self-diagnostic mode by operating the ignition key cylinder.
   1. Make sure the vehicle is in its initial condition. Then insert the key into the ignition key cylinder and remove it.
   2. Within 5 seconds of removing the key, insert the key into the ignition key cylinder (ignition switch OFF). Then turn the ignition switch ON and OFF.
   3. Within 30 seconds of turning the ignition switch OFF, perform the following operation 9 times: turn the ignition switch ON and OFF.
      NOTE: If the system cannot enter self-diagnostic mode, the system returns to normal mode.

      HINT:

      • Turning the ignition switch ON after the above operations have been completed ends self-diagnostic mode.
      • Do not lock or unlock doors during self-diagnostic mode.
2. Check that the system has switched to self-diagnostic mode by checking the wireless door lock buzzer sound.

   OK:

   Buzzer pattern is same as  Fig 1 .

NG:  Go to step  8

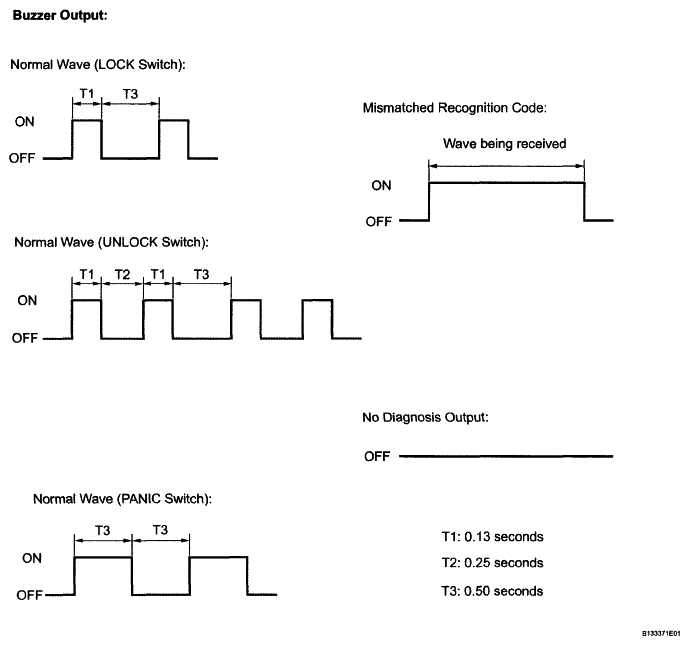

Fig 1: Identifying Buzzer Output Graph (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Buzzer Output Graph (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go TO NEXT STEP

1. Check the diagnostic outputs when the door control transmitter switch is held down. The diagnostic outputs can be checked by the wireless door lock buzzer sound.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Unmatching recognition code Is output	A
   Normal waves (buzzer patterns) for LOCK and UNLOCK switches are output	B
   No diagnosis outputs	C

B: REPLACE MAIN BODY ECU

C:  Go to step  6

A: Go TO NEXT STEP

1. Check that the system can be switched to rewrite mode or add mode, and that a recognition code can be registered.

   OK:

   Recognition code can be registered.

NG:  Go to step  12

OK: END

1. When a new or normally functioning door lock control transmitter switch for the same vehicle type is held down, check that an unmatching recognition code is output.

   OK:

   Unmatching recognition code is output.

OK: REPLACE DOOR CONTROL TRANSMITTER MODULE

NG: Go TO NEXT STEP

1. After replacing the door control receiver, check that the doors can be locked and unlocked by using the transmitter LOCK and UNLOCK switches.

   OK:

   Doors can be locked and unlocked with transmitter.

NG: REPLACE MAIN BODY ECU

OK: END

Result

B:  Go to step  3

A: Go TO NEXT STEP

1. Remove the unlock warning switch.
   Fig 3: Identifying Unlock Warning Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   1-2	Not pushed	10 kΩ or higher
   	Pushed	Below 1 Ω

NG: REPLACE UNLOCK WARNING SWITCH ASSEMBLY

OK: Go TO NEXT STEP

1. Disconnect the E7 main body ECU connector.
2. Disconnect the E23 door control receiver connector.
   Fig 4: Identifying E7 Main Body ECU & E23 Door Control Receiver Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   E7-4 (RDA) - E23-2 (RDA)	Below 1 Ω
   E7-4 (RDA) or E23-2 (RDA) - Body ground	10 kΩ or higher
   E7-3 (PRG) - E23-3 (PRG)	Below 1 Ω
   E7-3 (PRG) or E23-3 (PRG) - Body ground	10 kΩ or higher

4. Reconnect the main body ECU connector.
5. Reconnect the door control receiver connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go TO NEXT STEP

1. Measure the voltage of the connector.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   E23-2 (RDA) - Body ground	Transmitter switch ON → OFF (No key in ignition key cylinder, all doors closed)	Below 1V → Pulse generation → Below 1V

OK: REPLACE MAIN BODY ECU

Fig 5: Identifying Door Control Receiver Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go TO NEXT STEP

1. Check that the doors can be locked and unlocked by using the transmitter LOCK and UNLOCK switches.

   OK:

   Doors can be locked and unlocked with transmitter.

NG: REPLACE DOOR CONTROL RECEIVER

OK: END (DOOR CONTROL TRANSMITTER MODULE DEFECTIVE)
