Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR
    1. Separate type amplifier:

      Disconnect the connectors shown in the illustration on the left from the stereo component amplifier and speakers.

    2. Built-in type amplifier:

      Disconnect the connectors shown in the illustration on the left from the radio receiver and speakers.

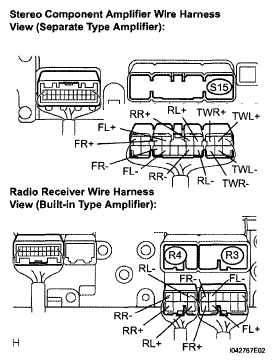

      Fig 1: Disconnecting Connectors From Stereo Component Amplifier And Speakers
      G05196167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate type amplifier:

      Measure the resistance between each speaker and the stereo component amplifier to check for an open circuit in the wire harness.

      Standard resistance: Below 1 Ω

      Fig 2: Identifying Front No.1 Speaker Connector Terminals
      G05196168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Built-in type amplifier:

      Measure the resistance between each speaker and the radio receiver to check for an open circuit in the wire harness.

      Standard resistance: Below 1 Ω

      Fig 3: Identifying Front No.2 Speaker Connector Terminals
      G05196169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance between each speaker and body ground to check for a short circuit in the wire harness.

      Standard resistance: 10 kΩ or higher

      Fig 4: Identifying Rear Speaker Connector Terminals
      G05196170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: GO TO NEXT STEP.

  2. INSPECT FRONT NO. 1 SPEAKER
    1. Resistance check.
      1. Measure the resistance between the terminals of the speaker.

        Standard resistance:

        Separate Type Amplifier: 2.3 to 2.9 Ω

        Built-in Type Amplifier: 3.4 to 4.6 Ω

        NG: REPLACE FRONT NO. 1 SPEAKER

        OK: GO TO NEXT STEP.

  3. INSPECT FRONT NO. 2 SPEAKER
    1. Check that malfunction disappears when another speaker in good condition is installed.

      OK: Malfunction disappears.

      HINT:

      • Connect all the connectors to the speakers.
      • When there is a possibility that either right or left front speaker is detective, inspect by interchanging the right one and the left one.

      OK REPLACE FRONT NO. 2 SPEAKER

      NG: GO TO NEXT STEP.

  4. INSPECT REAR SPEAKER
    1. Resistance check.
      1. Measure the resistance between the terminals of the speaker.

        Standard resistance:

        Separate Type Amplifier: 1.75 to 2.75 Ω

        Built-in Type Amplifier:

        5.1 to 6.9 Ω

        NG: REPLACE REAR SPEAKER

        OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
