Radio Receiver Power Source Circuit: Wiring Diagram

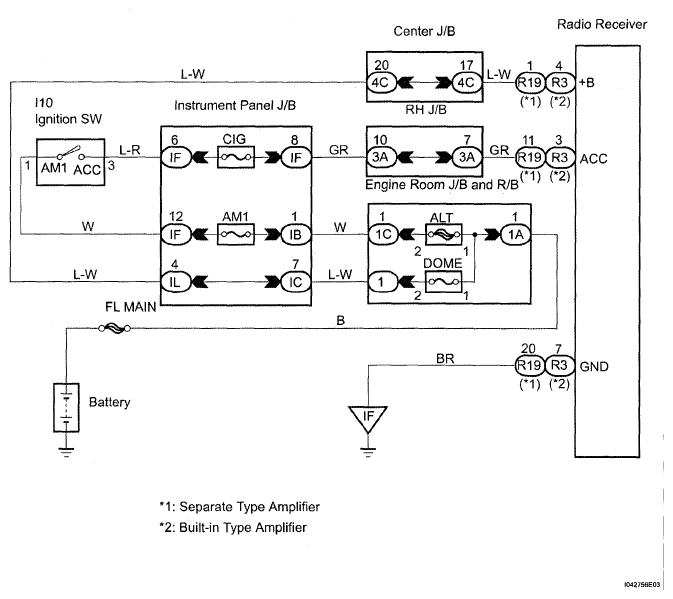

Fig 1: Radio Receiver Power Source Wiring Diagram

G05196185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
