Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HAZARD WARNING SIGNAL SWITCH ASSY
    1. Check the hazard warning switch resistance, as shown in the illustration and table.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Switch Position Specified Condition
    - Switch OFF Below 1 Ω
    2 - 3 Switch ON Below 1 Ω
    4 - 5 Illumination circuit Below 1 Ω
    Fig 1: Checking Hazard Warning Switch Resistance
    G02598432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE HAZARD WARNING SIGNAL SWITCH ASSY
    2. OK: GO TO NEXT STEP
  2. CHECK TURN SIGNAL FLASHER ASSY (See  ON-VEHICLE INSPECTION  )
    1. NG: REPLACE TURN SIGNAL FLASHER ASSY
    2. OK: GO TO NEXT STEP
  3. CHECK WIRE HARNESS (TVIP ECU - TURN SIGNAL FLASHER)
    1. Disconnect the TVIP ECU and turn signal flasher connectors.
    2. Check the resistance between the terminals of the TVIP ECU and turn signal flasher connectors, as shown in the illustration and table.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    HAZD (T3-8) - HAZ(T2-8) Below 1 Ω

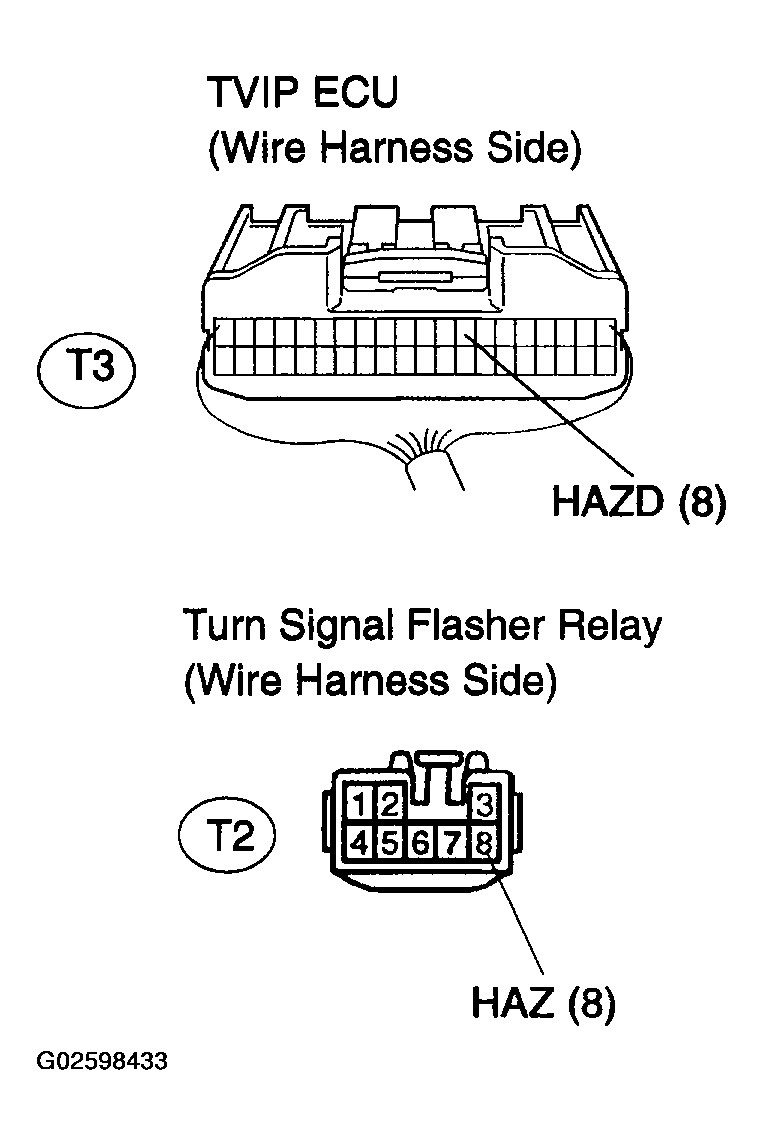

    Fig 2: Checking Wire Harness
    G02598433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  4. CHECK WIRE HARNESS (HAZARD WARNING SIGNAL SWITCH - BODY GROUND)
    1. Disconnect the hazard warning signal switch connector.
    2. Check the resistance between the terminal of the hazard warning signal switch connector and the body ground, as shown in the illustration and table.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    H7-2 - Body ground Below 1 Ω
    Fig 3: Identifying Hazard Warning Switch Connector
    G02598434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP

    CHECK AND REPLACE TVIP ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
