Engine Control System - SFI System Diagnostics, Precautions, Parts Locations, Diagnostic Trouble Code Chart
>>
SFI System
>>
Parts Location
Parts Location

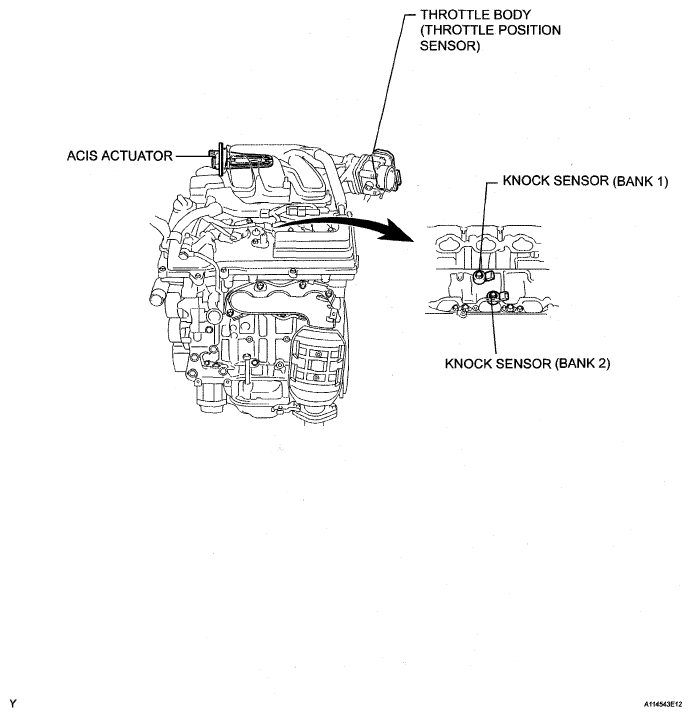

Fig 1: Identifying SFI System Components (1 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

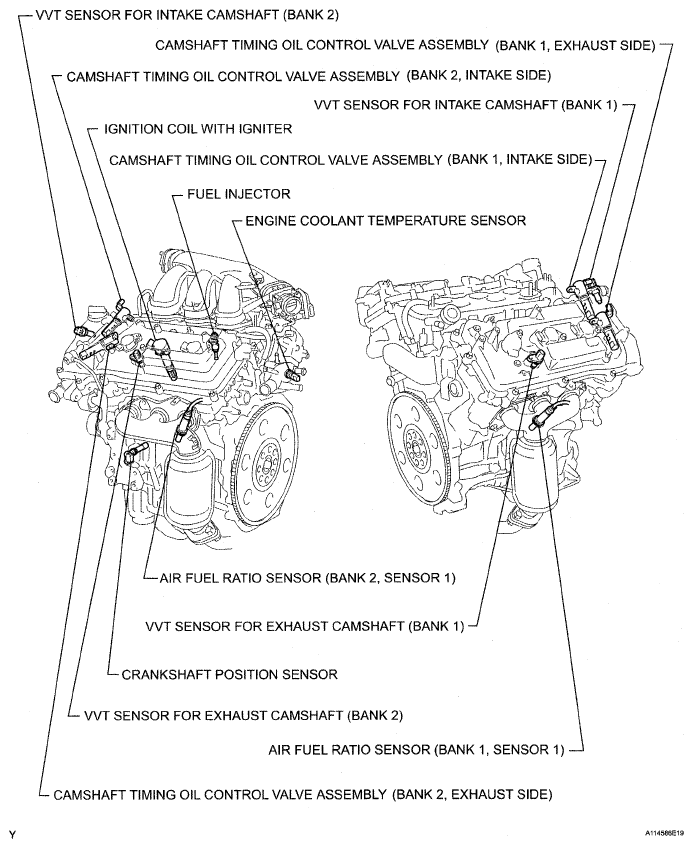

Fig 2: Identifying SFI System Components (2 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

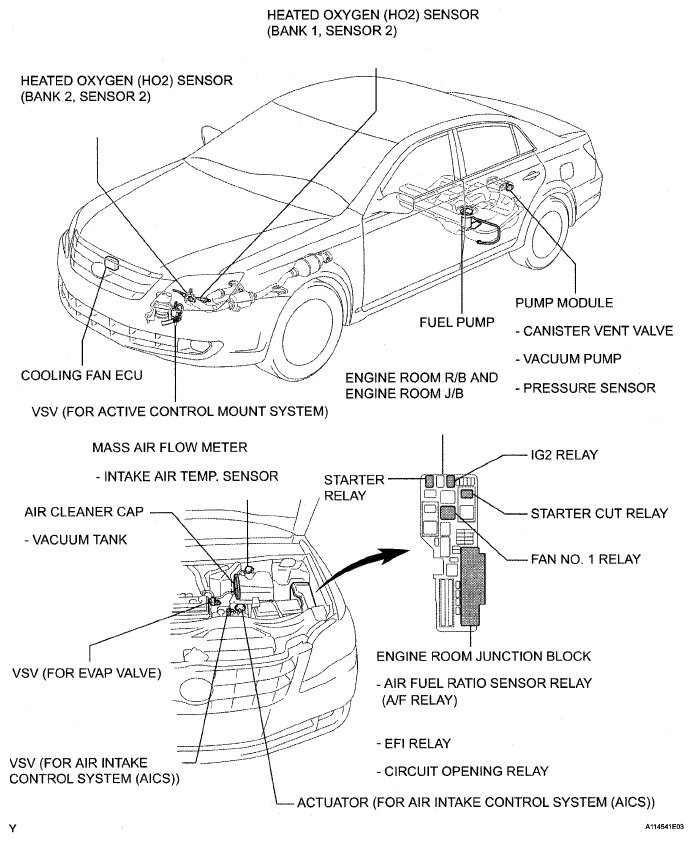

Fig 3: Identifying SFI System Components (3 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

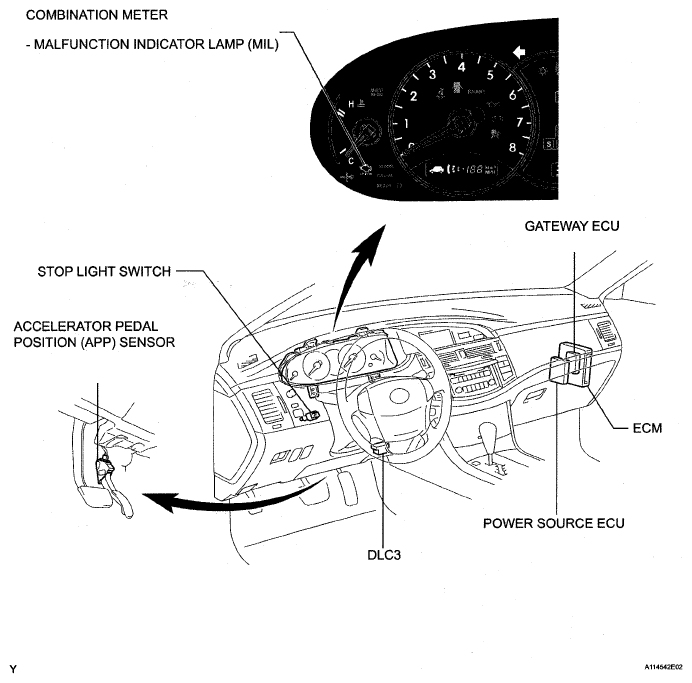

Fig 4: Identifying SFI System Components (4 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
