Home >> Toyota >> 2007 >> Avalon Limited >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System >> Cruise Control System >> Parts Location

Parts Location

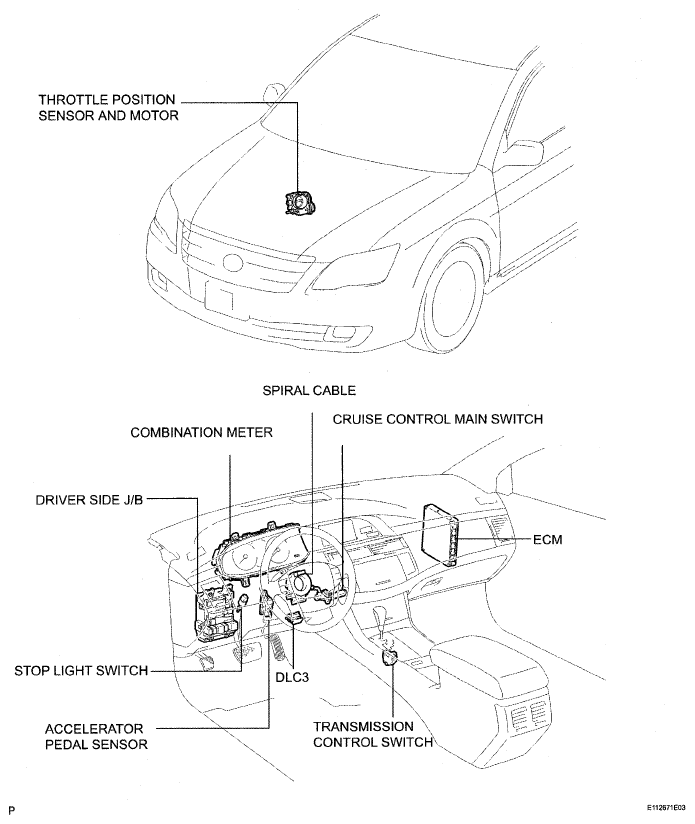

Fig 1: Identifying Cruise Control System Components Location (1 Of 2)
G05005534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

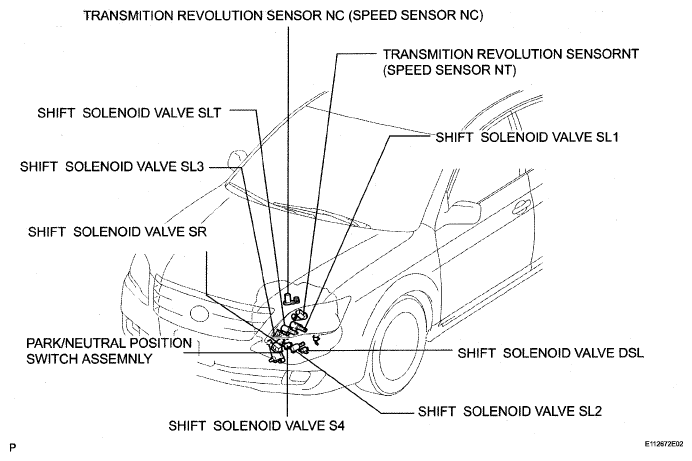

Fig 2: Identifying Cruise Control System Components Location (2 Of 2)
G05005535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
