Crankshaft Position Sensor: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications 1 Of 2)
G04968641Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

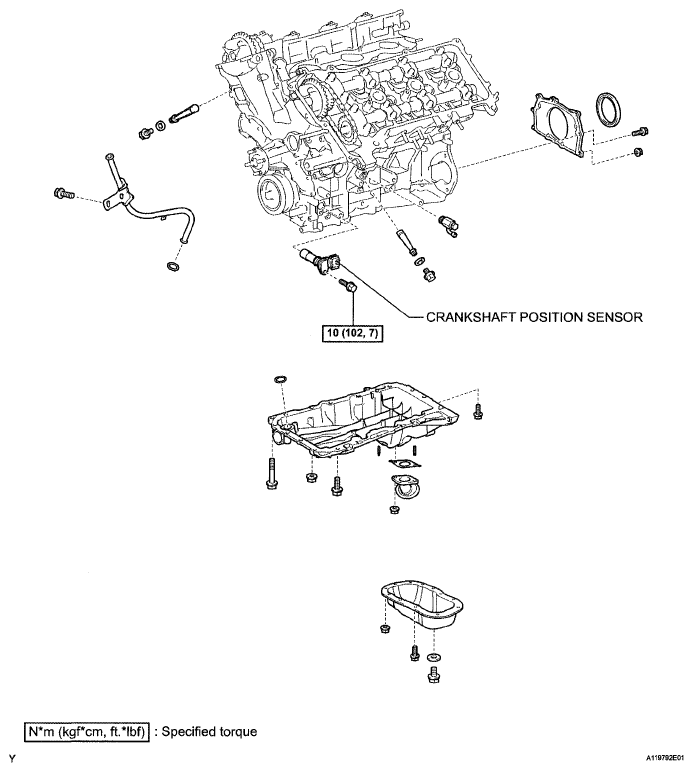

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G04968642Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
