DTC U0122 Lost Communication with Vehicle Dynamics Control Module: Wiring Diagram

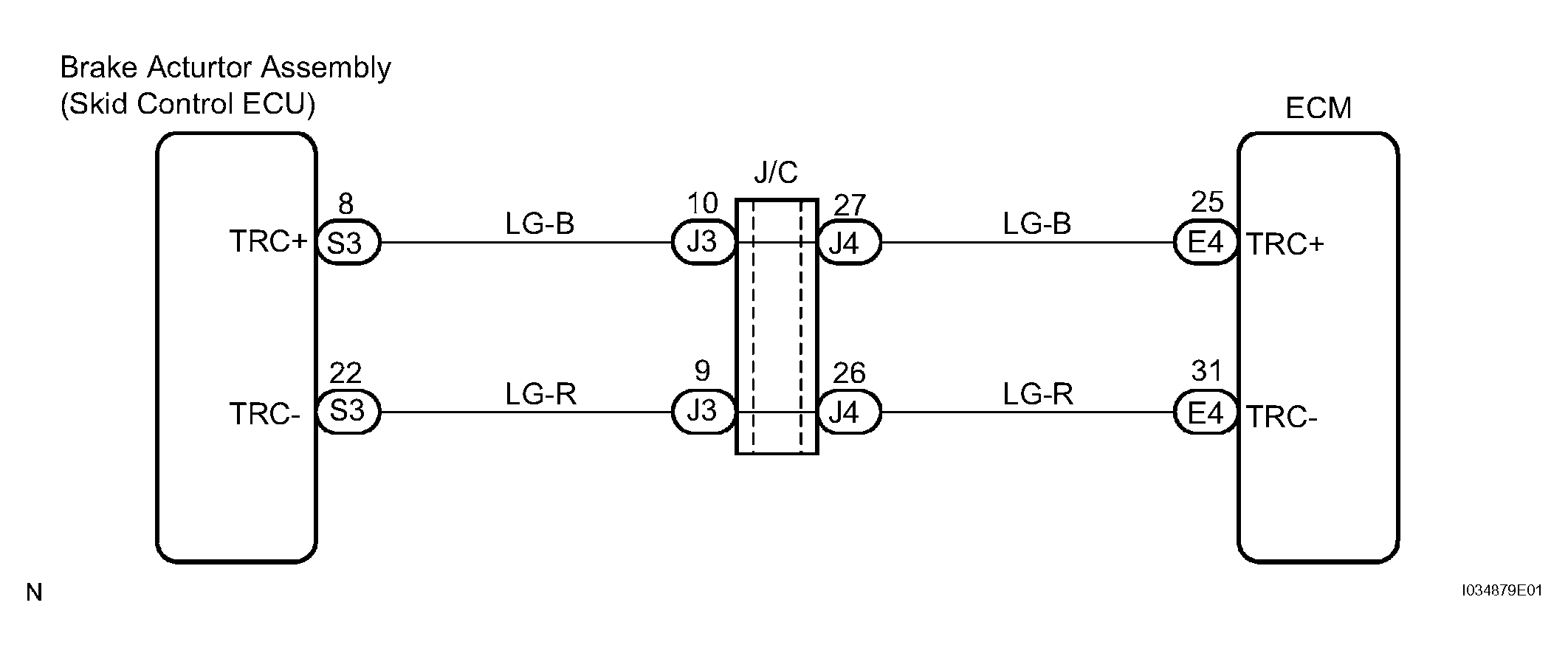

Fig 1: Lost Communication With Vehicle Dynamics Control Module Circuit - Wiring Diagram
G04494805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
