POWER WINDOW CONTROL SYSTEM (w/Jam Protection Function)
>>
Parts Location
Parts Location

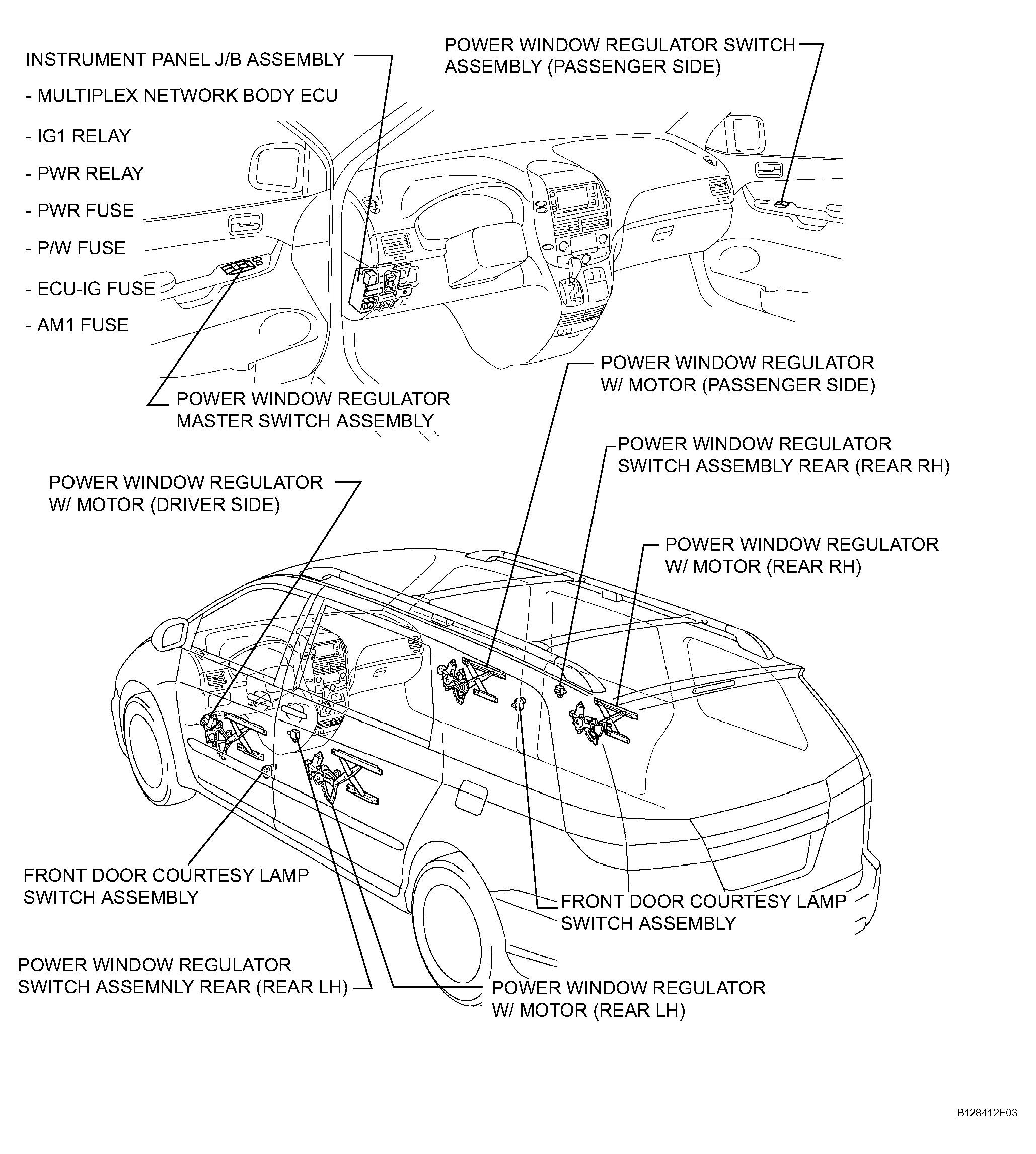

Fig 1: Locating Power Window Control System Parts (W/Jam Protection Function)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
