Home >> Toyota >> 2006 >> Sienna CE >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System >> Cruise Control System >> Cruise Control Switch Circuit >> Wiring Diagram

Cruise Control Switch Circuit: Wiring Diagram

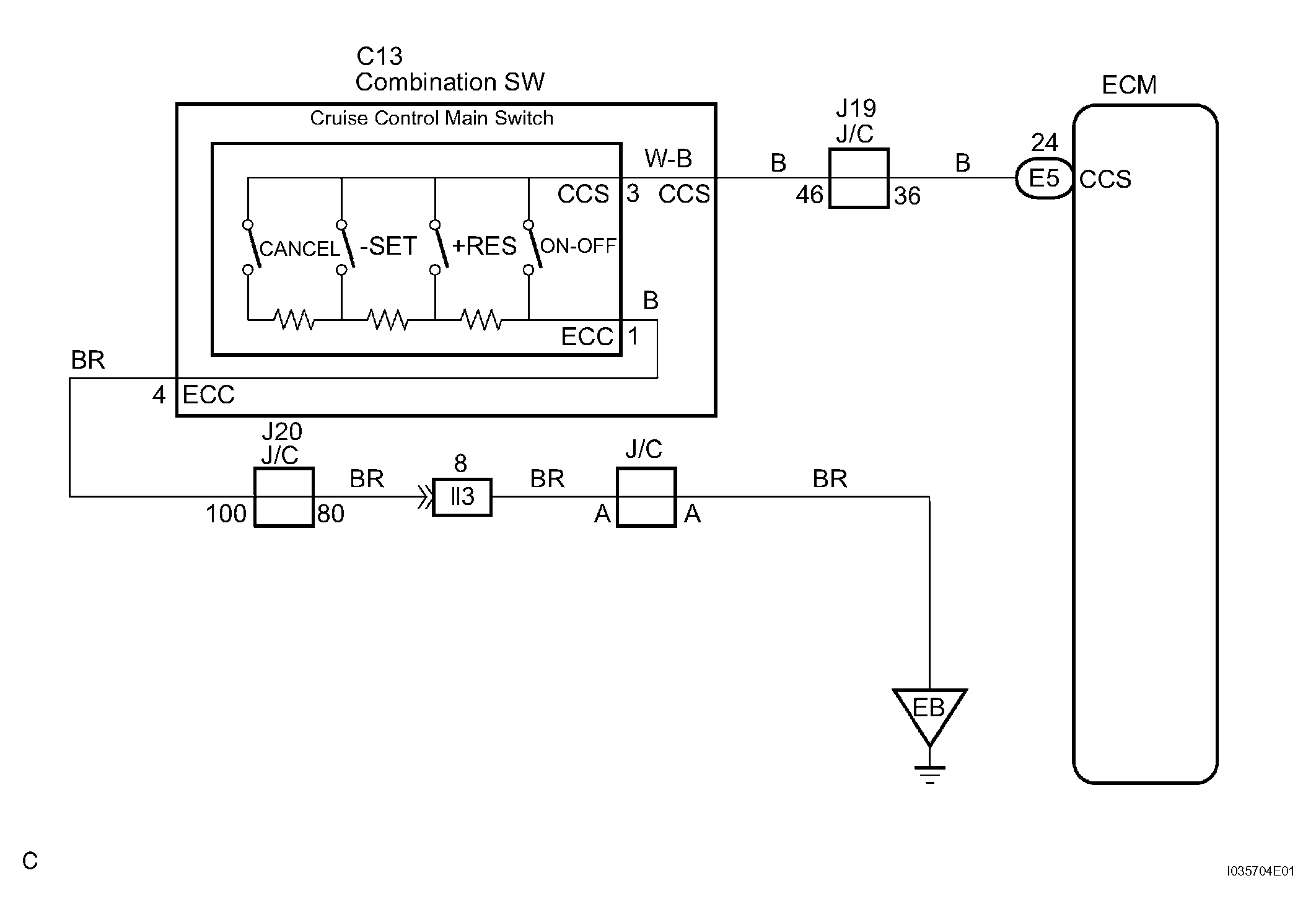

Fig 1: Cruise Control Switch Circuit - Wiring Diagram

G04494752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
