ABS, TRAC, VSC, Downhill Assist Control, Hill-Start Assist Control and Auto LSD: Notes

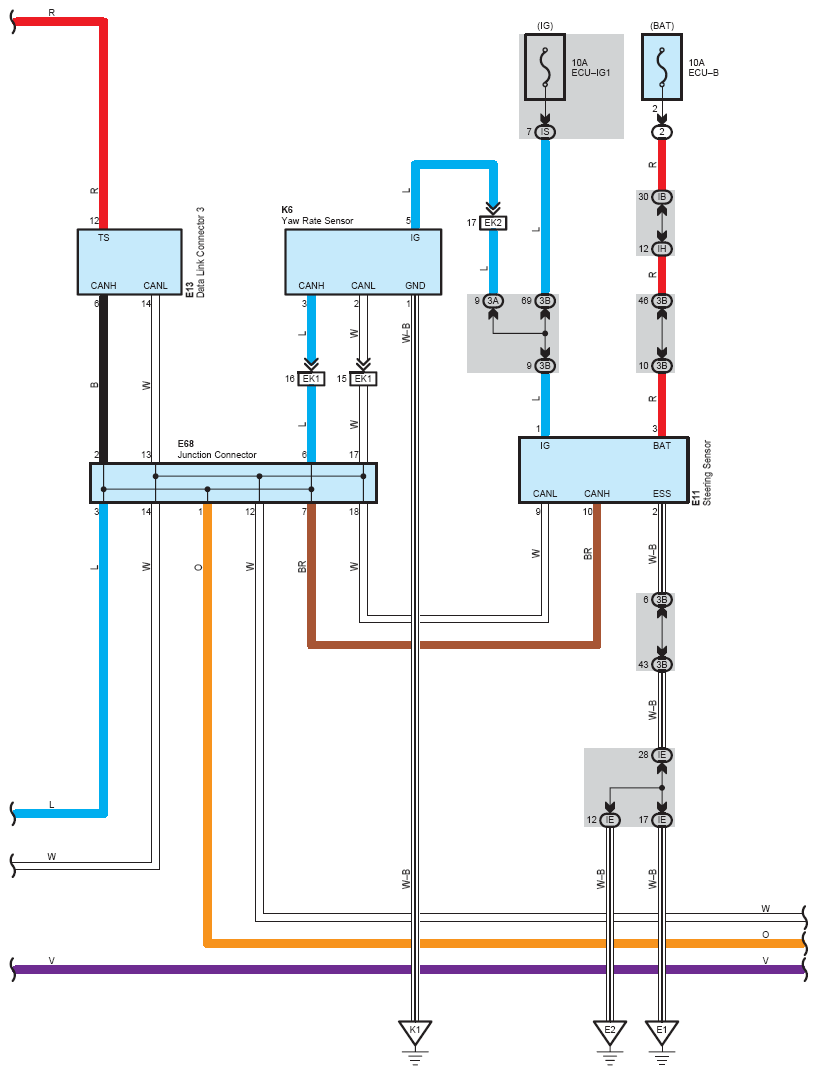

Fig 1: ABS, TRAC, VSC, Downhill Assist Control, Hill-Start Assist Control And Auto LSD System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

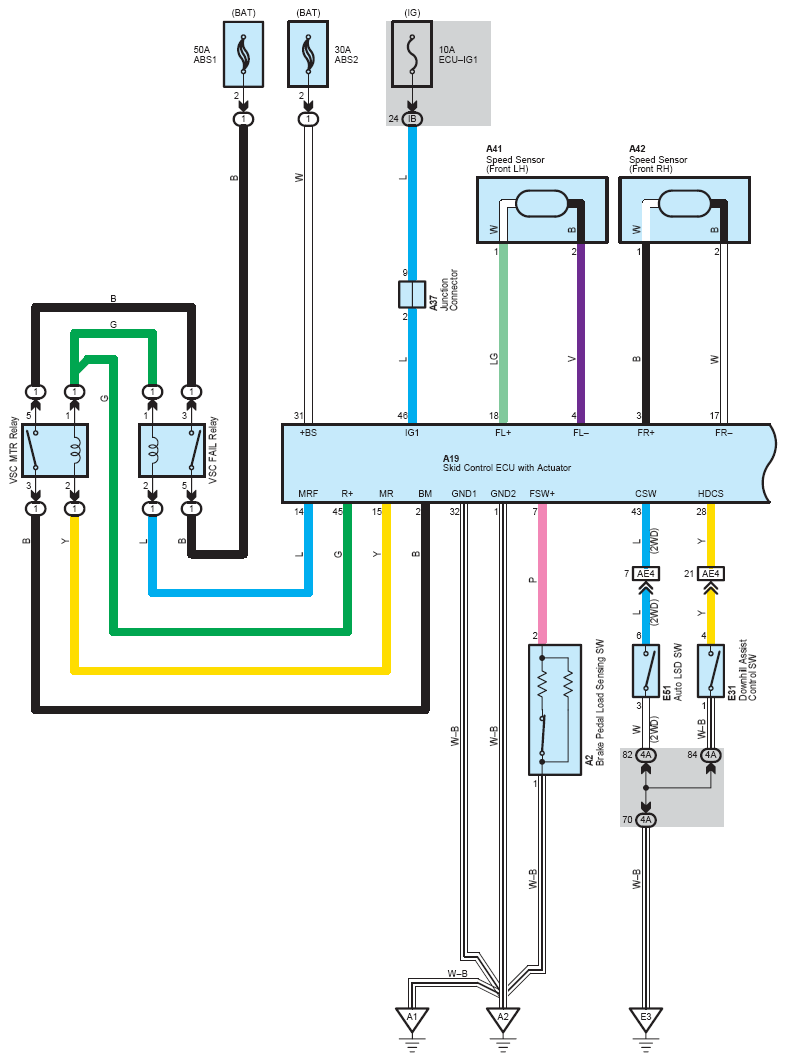

Fig 2: ABS, TRAC, VSC, Downhill Assist Control, Hill-Start Assist Control And Auto LSD System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

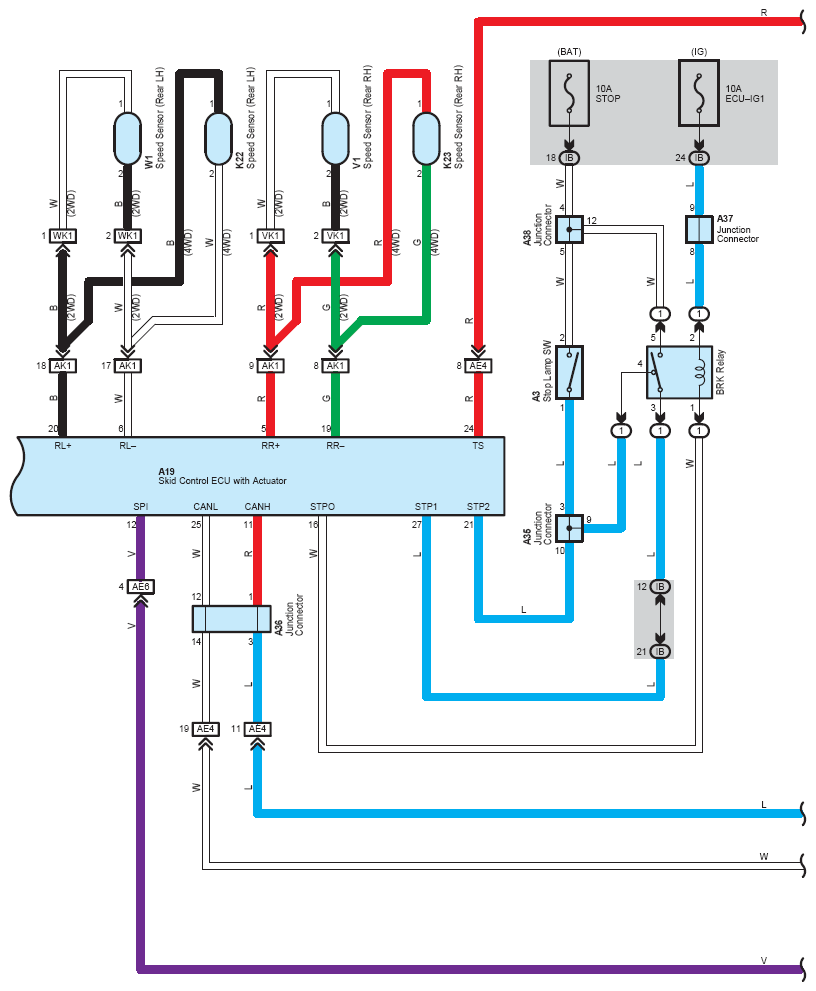

Fig 3: ABS, TRAC, VSC, Downhill Assist Control, Hill-Start Assist Control And Auto LSD System Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

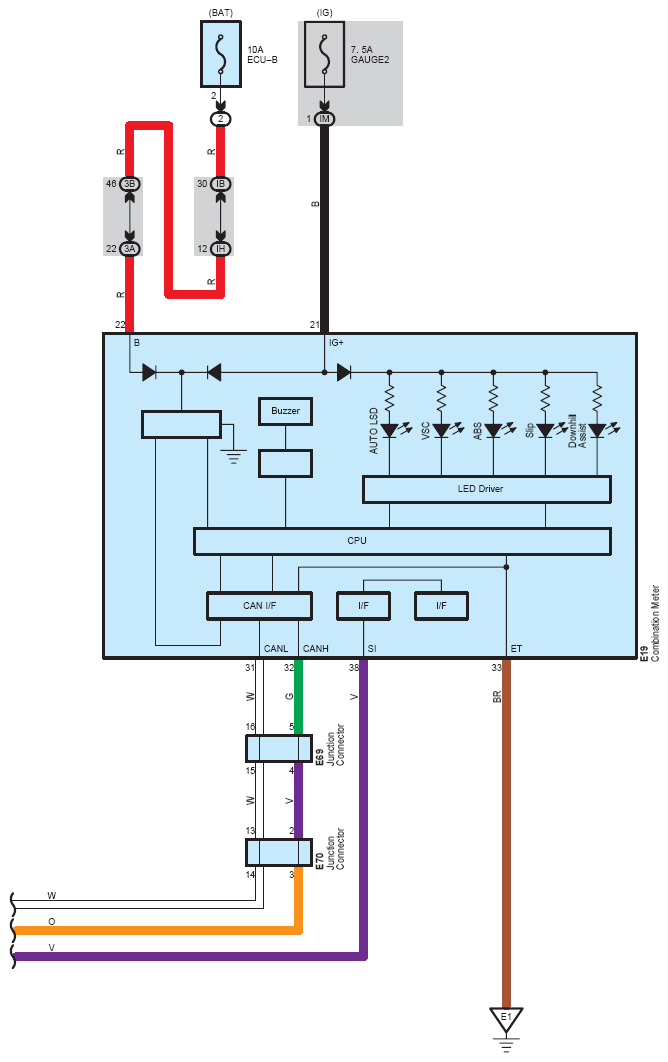

Fig 4: ABS, TRAC, VSC, Downhill Assist Control, Hill-Start Assist Control And Auto LSD System Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
