Radio Receiver: Installation

INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
1. Install the No. 1 radio bracket to the radio receiver with the 4 bolts.

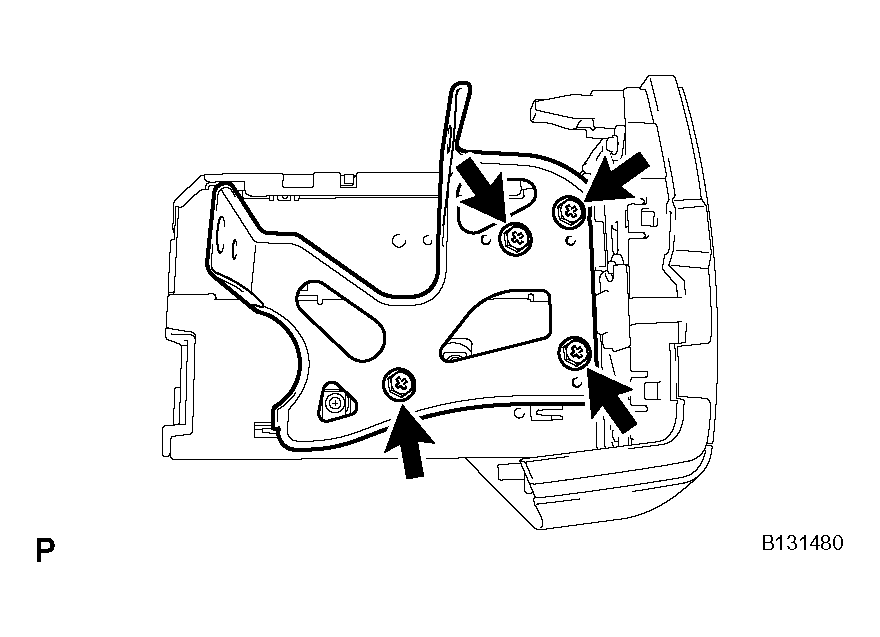

  Fig 1: Installing No. 1 Radio Bracket To Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 2 radio bracket to the radio receiver with the 4 bolts.
3. Connect all the connectors.
4. Attach the 4 claws to install the radio receiver.
5. Install the 4 bolts.

  Fig 2: Installing No. 2 Radio Bracket To Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

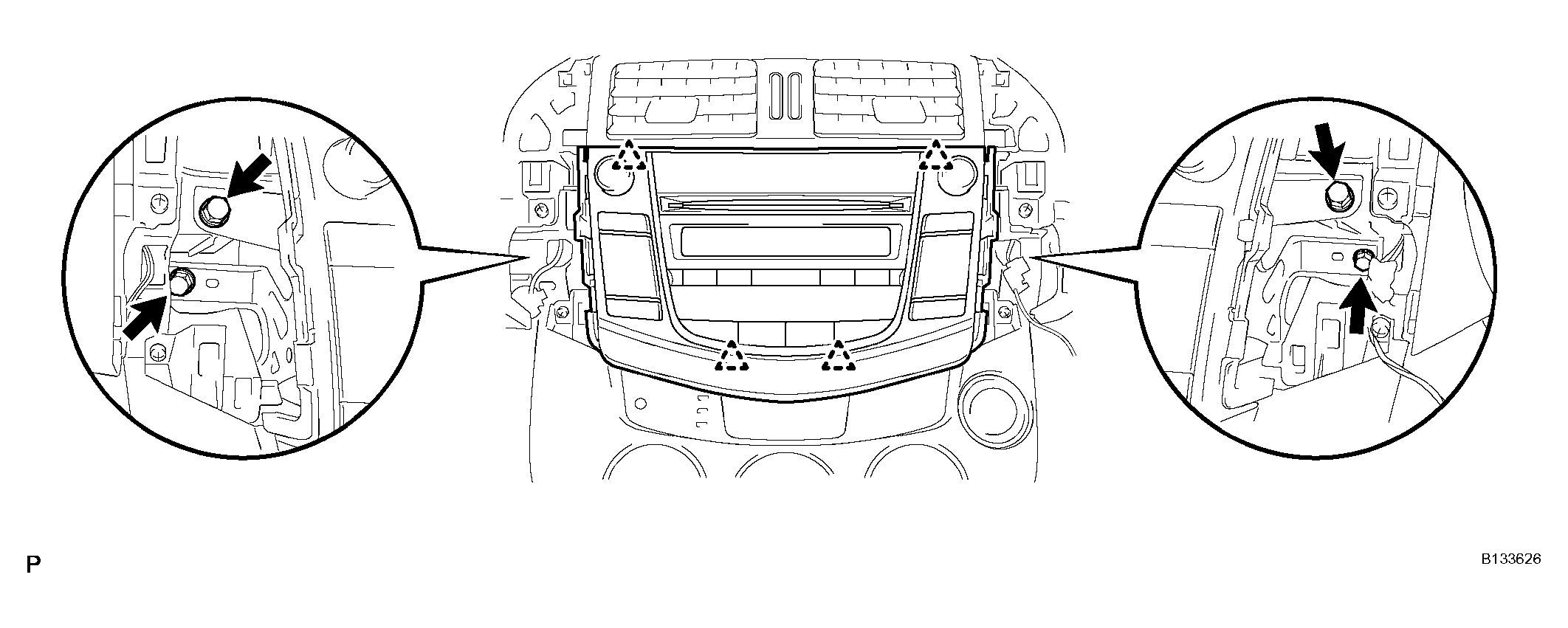

  Fig 3: Installing Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER (See appropriate step(s) under REASSEMBLY )
INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER (See appropriate step(s) under REASSEMBLY )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
