Inspection Procedure

1. Drive the vehicle and check that the function of the speedometer on the combination meter is normal.

   OK: Actual vehicle speed and the speed indicated on the speedometer are the same.

NG: GO TO  METER / GAUGE SYSTEM

OK: Go TO NEXT STEP.

1. Disconnect the E19 meter connector.
2. Disconnect the L13*1 amplifier or E49*2 receiver connector.

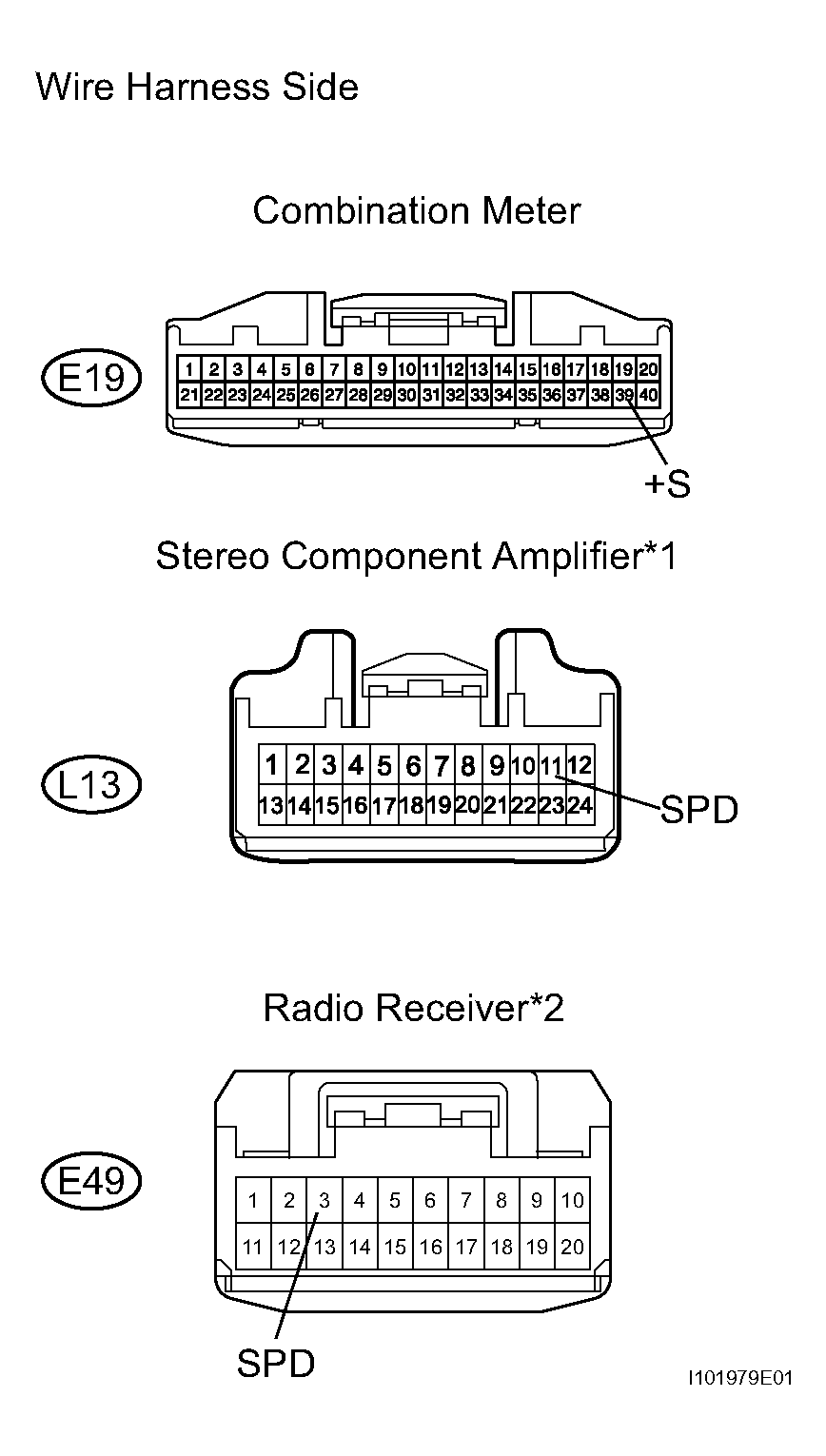

   Fig 1: Identifying E19, L13 & E49 Connectors Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   E19-39 (+S) - L13-11 (SPD)*1	Below 1 Ω
   E19-39 (+S) - E49-3 (SPD)*2	Below 1 Ω

   HINT:

   *1: for Premium sound models

   *2: for Standard models

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
