Shift Control Actuator: Components

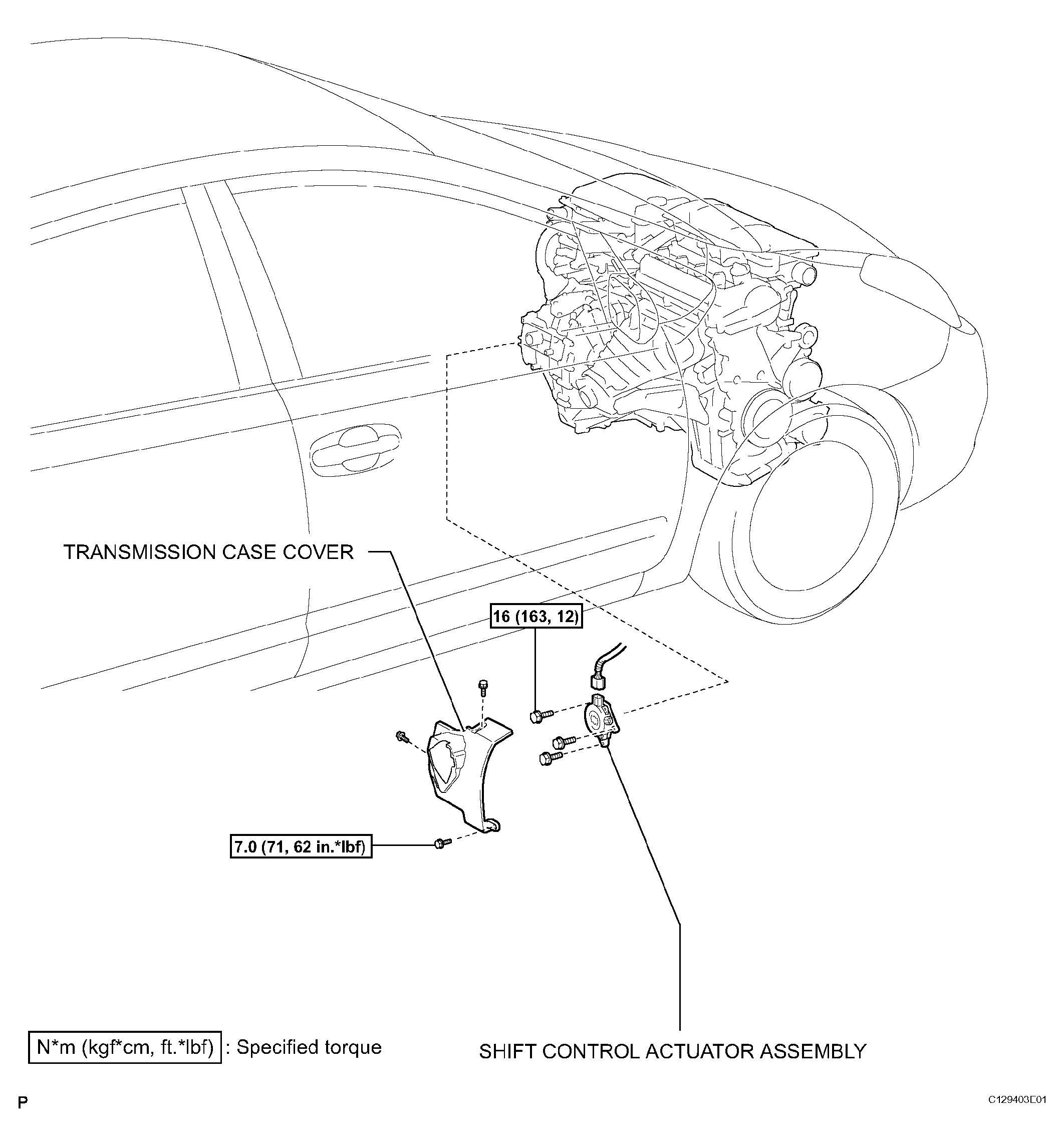

Fig 1: Shift Control Actuator Replacement Components With Torque Specifications

G04474098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
