Gateway ECU Power Source Circuit: Wiring Diagram

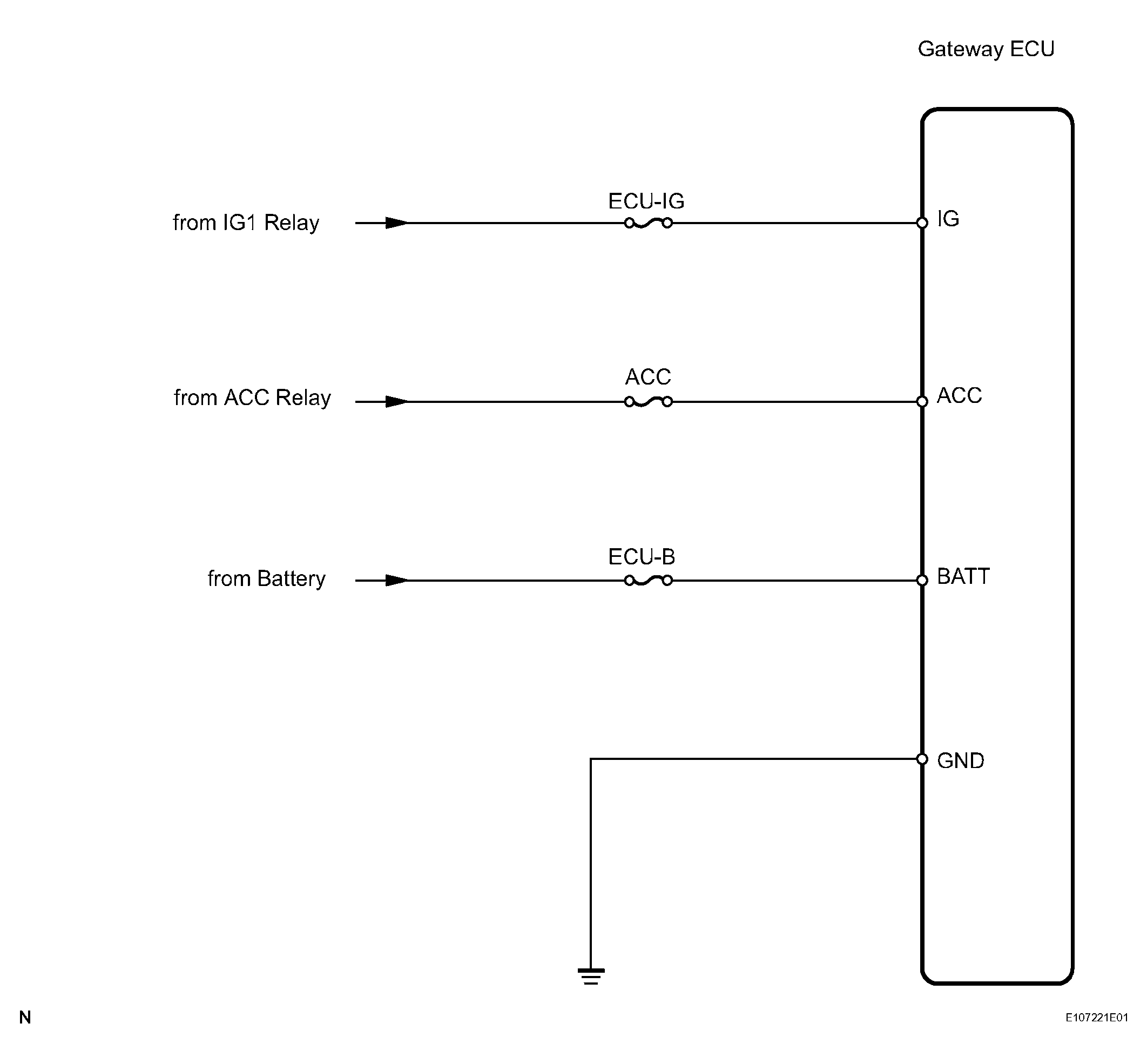

Fig 1: Gateway ECU Power Source Circuit - Wiring Diagram

G04476408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
