COMPRESSOR AND MAGNETIC CLUTCH (for 1ZZ-FE): Installation

INSTALL COMPRESSOR AND MAGNETIC CLUTCH
1. Install the compressor and magnetic clutch with the 3 bolts.
  Torque: 29 N*m (295 kgf*cm, 21 ft.*lbf)

  NOTE: Tighten the bolts in the following order shown in the illustration to install the compressor and magnetic clutch.

  Fig 1: Installing Compressor And Magnetic Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL DISCHARGE HOSE SUB-ASSEMBLY
1. Remove the attached vinyl tape from the hose.
2. Sufficiently apply compressor oil to the new O-ring and fit surface of the compressor and magnetic clutch.
  Compressor oil:

  ND-OIL8 or equivalent
3. Install an O-ring to the discharge hose sub-assembly.
4. Install the discharge hose sub-assembly to the compressor and magnetic clutch with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL SUCTION HOSE SUB-ASSEMBLY
1. Remove the attached vinyl tape from the hose.
2. Sufficiently apply compressor oil to the new O-ring and fit surface of the compressor and magnetic clutch.
  Compressor oil:

  ND-OIL8 or equivalent
3. Install an O-ring to the cooler refrigerant suction hose No. 1.

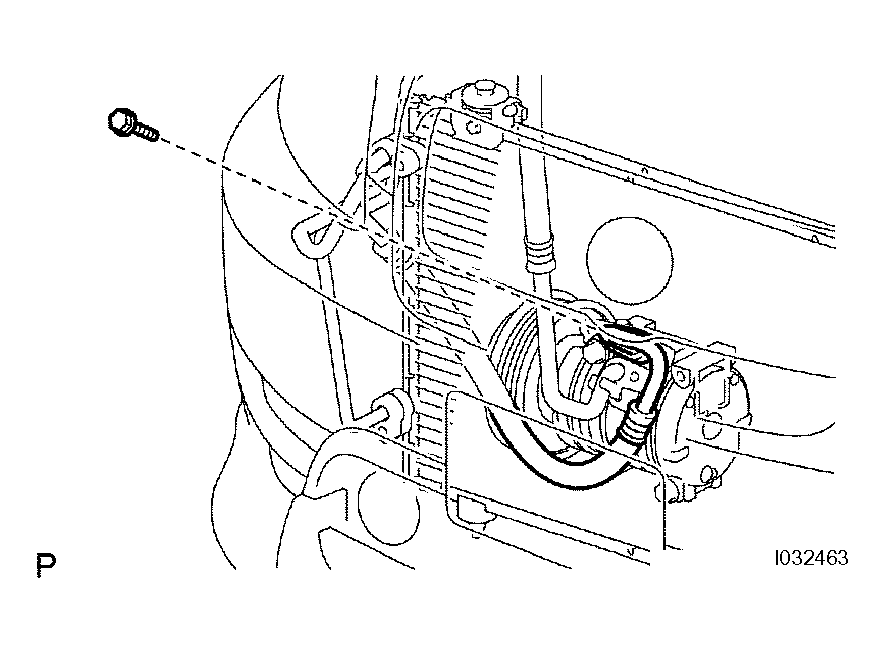

  Fig 2: Installing Discharge Hose Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the cooler refrigerant suction hose No. 1 to the compressor and magnetic clutch with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE
INSPECT LEAKAGE OF REFRIGERANT (See REPLACEMENT )

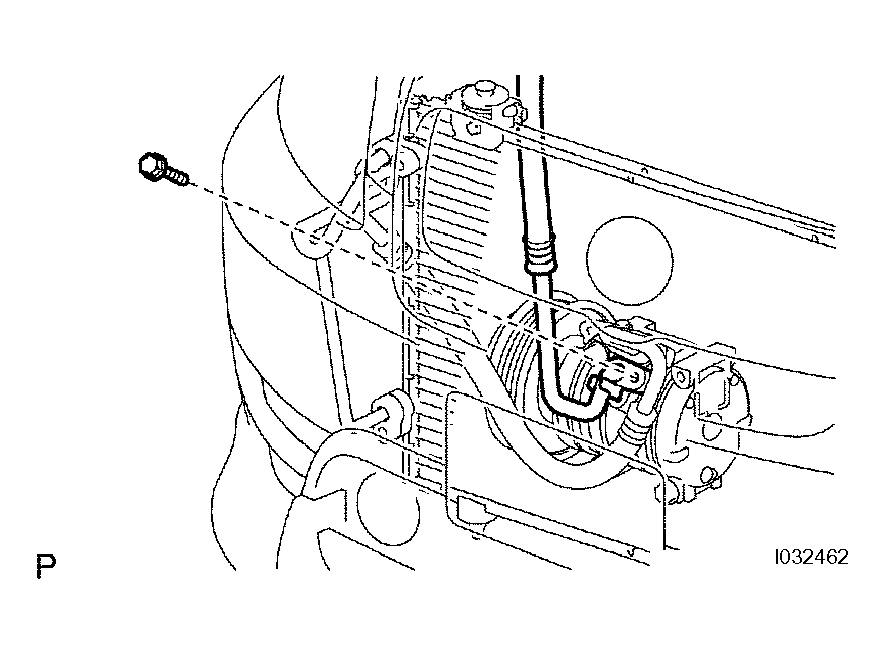

Fig 3: Installing Suction Hose Sub-Assembly
