Inspection Procedure

1. Disconnect the C11 connector.
2. Measure the resistance according to the value(s) in COMBINATION METER ASSEMBLY (RESISTANCE)  .

   Standard resistance

   COMBINATION METER ASSEMBLY (RESISTANCE)



   Tester connection	Condition	Specified condition
   C11-40 - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in COMBINATION METER ASSEMBLY (VOLTAGE)  .

   Standard voltage

   COMBINATION METER ASSEMBLY (VOLTAGE)



   Tester connection	Condition	Specified condition
   C11-1 - Body ground	Always	10 to 14 V
   C11-21 - Body ground	Ignition switch ACC or ON	10 to 14 V

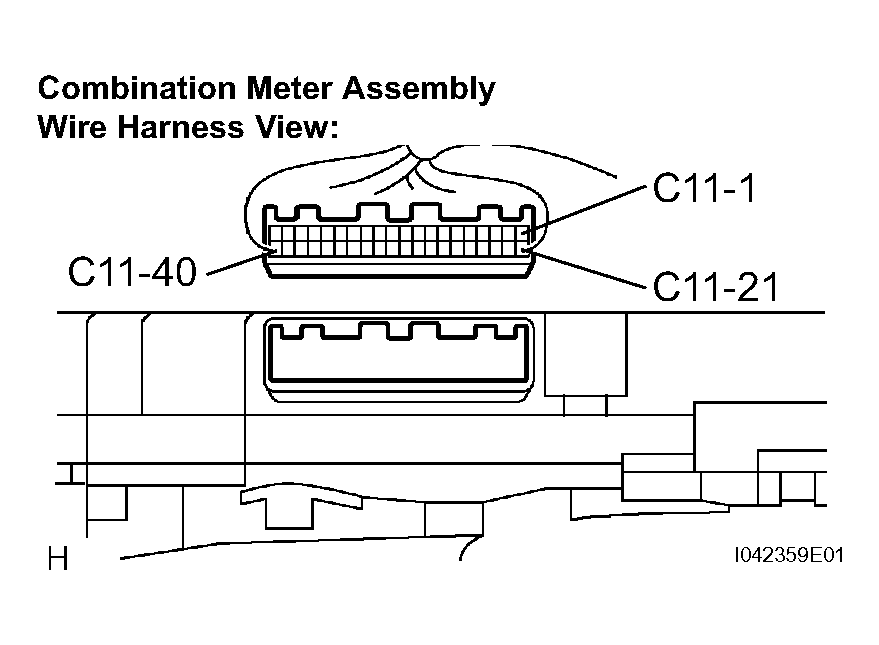

   Fig 1: Inspecting Combination Meter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE COMBINATION METER ASSEMBLY
