On-Vehicle Inspection

CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSEMBLY (for 1ZZ-FE)
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in Fig 1 .

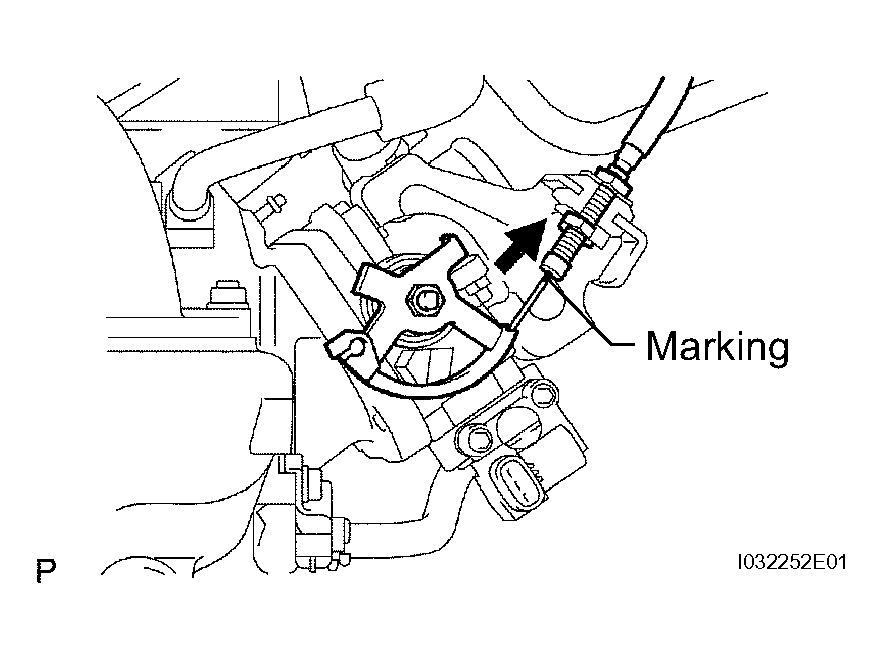

  Fig 1: Putting Mark On Position (1ZZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the wire and check the moved distance of the mark.

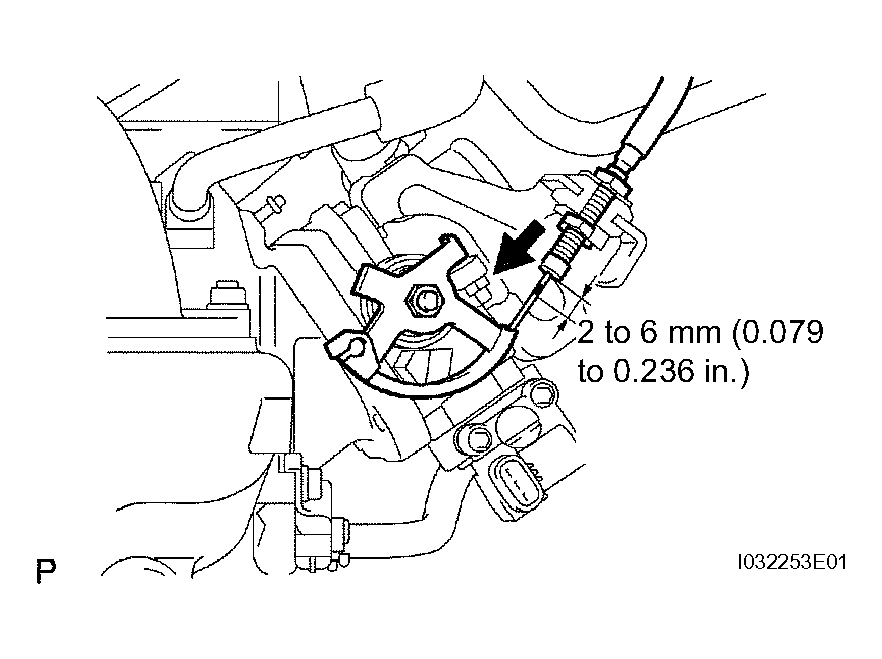

  Fig 2: Checking Moved Distance Of Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSEMBLY (for 1ZZ-FE)
1. Changing the double nut position shown by the arrows, adjust the play to the standard value.
  Standard: 2 to 6 mm (0.079 to 0.236 in.)

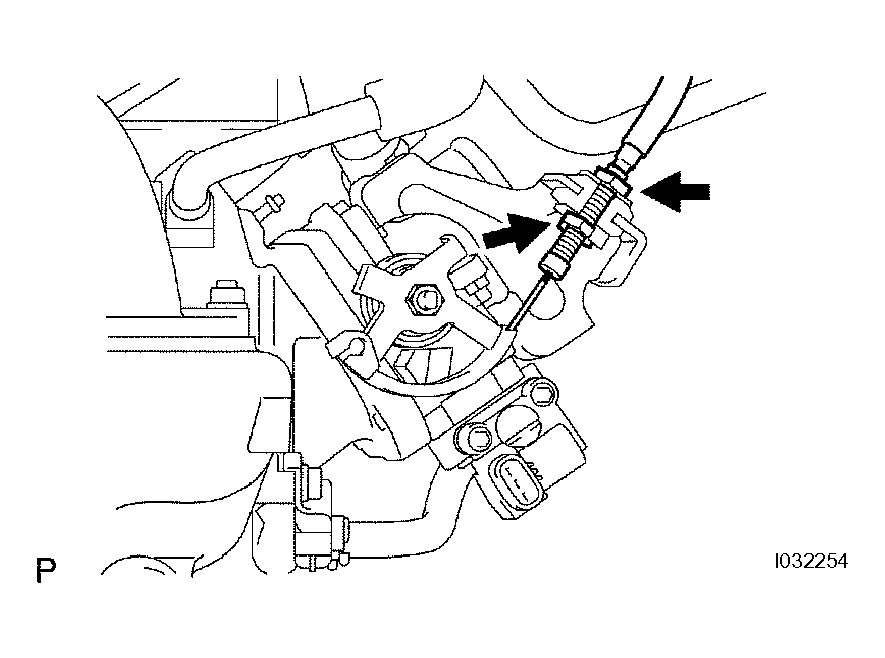

  Fig 3: Adjusting Play In Accelerator Auto Drive Cable Assembly (1ZZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSEMBLY (for 2ZZ-GE)
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in Fig 4 .

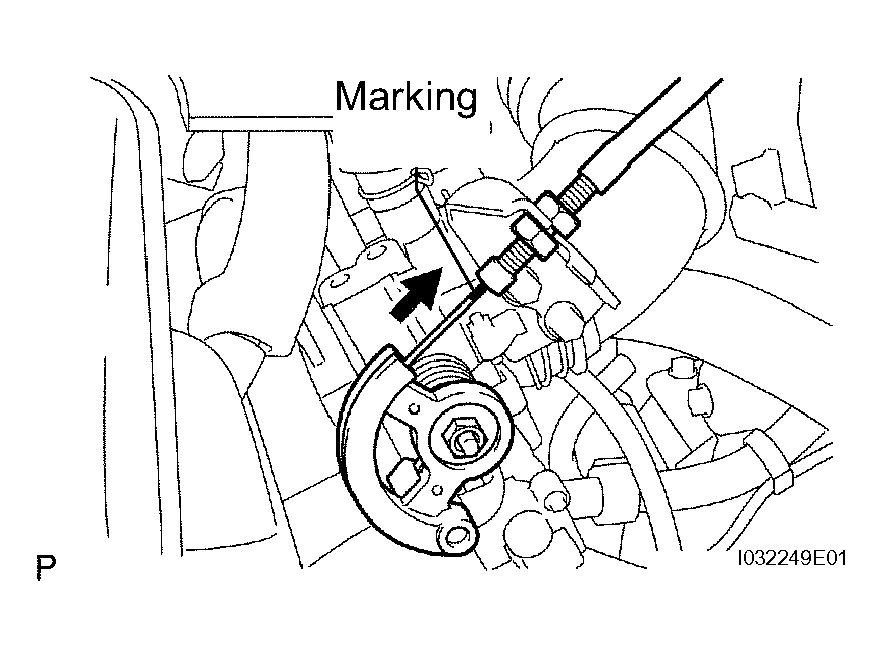

  Fig 4: Identifying Mark On Accelerator Auto Drive Cable Assembly (2ZZ-GE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the wire and check the moved distance of the mark.

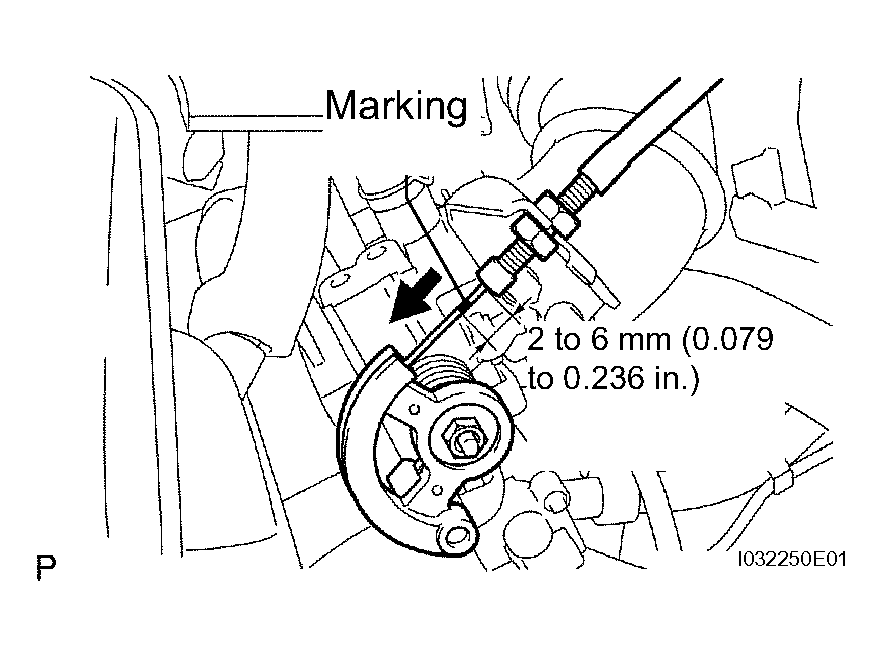

  Fig 5: Checking Moved Distance Of Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSEMBLY (for 2ZZ-GE)
1. Changing the double nut position shown by the arrows, adjust the play to the standard value.
  Standard:

  2 to 6 mm (0.079 to 0.236 in.)

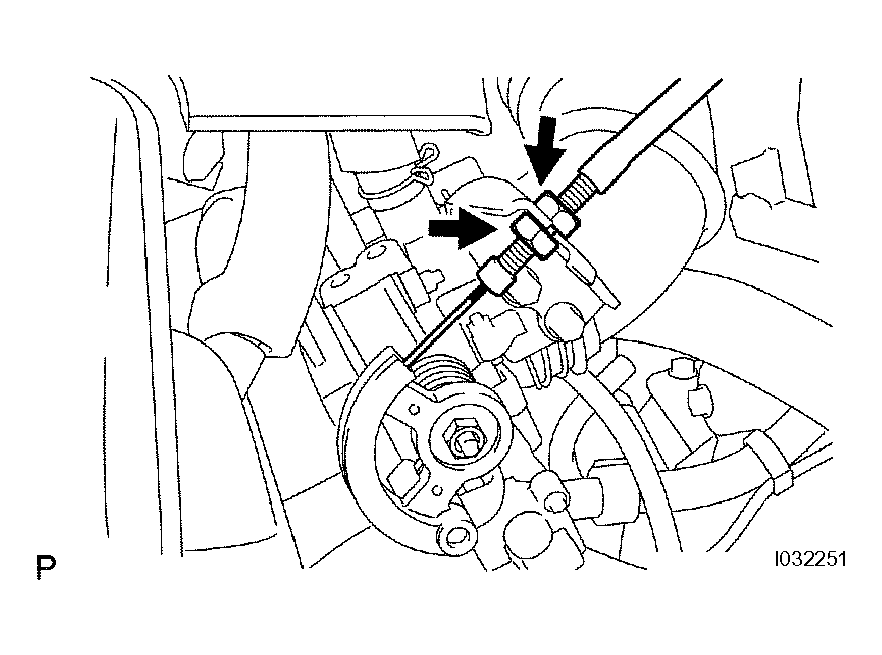

  Fig 6: Adjusting Play In Accelerator Auto Drive Cable Assembly (2ZZ-GE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR CONTROL CABLE ASSEMBLY
1. Remove the cruise control actuator cover and adjust the play in the accelerator control cable assembly by changing the double nut position.

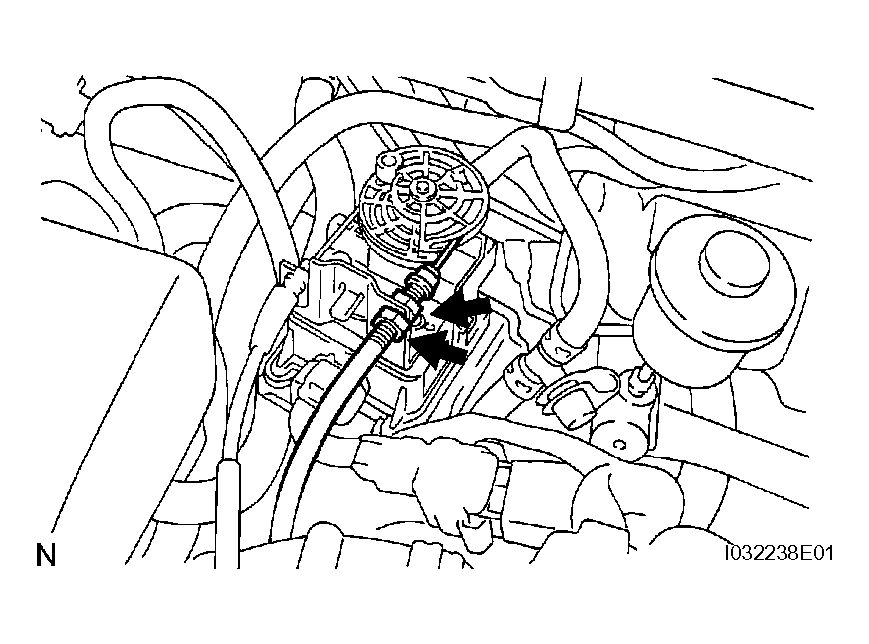

  Fig 7: Adjusting Play In Accelerator Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
