COMPRESSOR AND MAGNETIC CLUTCH (for 1ZZ-FE): Disassembly

  1. REMOVE MAGNETIC CLUTCH ASSEMBLY
    1. Place the compressor and magnetic clutch in vise.
    2. Using vise pliers, hold the magnetic clutch hub.
    3. Remove the bolt, magnetic clutch hub and magnetic clutch washer.

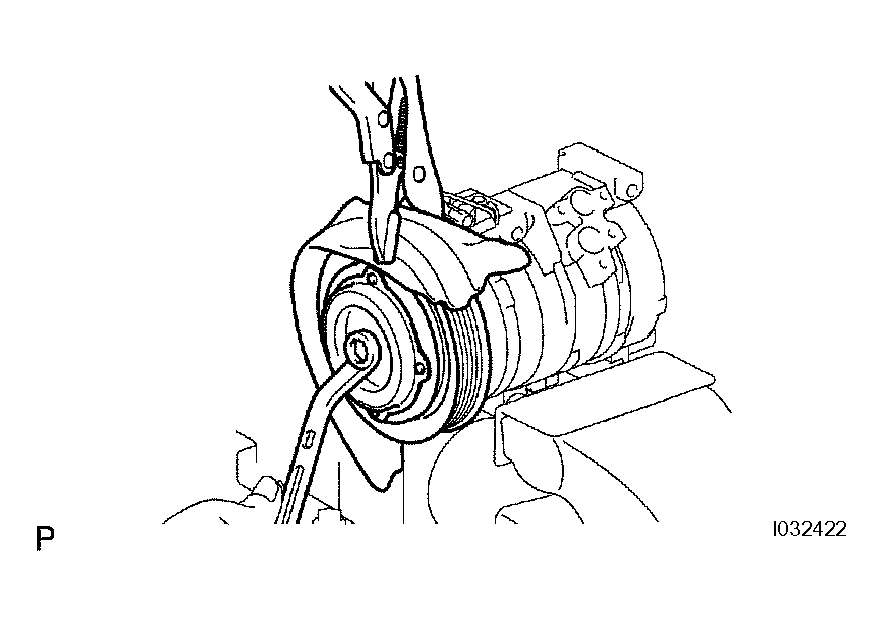

      Fig 1: Removing Magnetic Clutch Hub And Magnetic Clutch Washer
      G04465787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a snap ring expander, remove the snap ring and magnetic clutch rotor.
    5. Remove the screw and disconnect the connector.

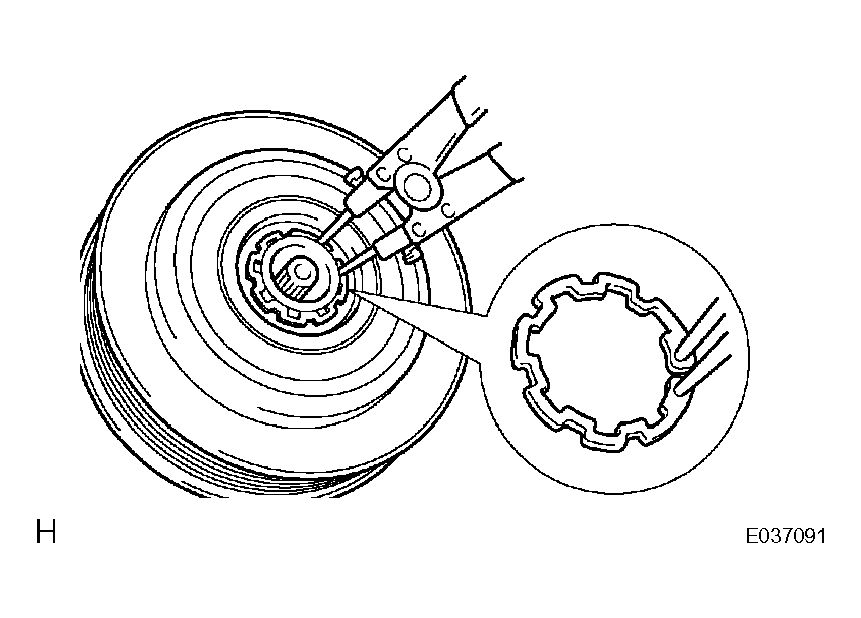

      Fig 2: Removing Snap Ring And Magnetic Clutch Rotor
      G04465788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a snap ring expander, remove the snap ring and magnetic clutch stator.

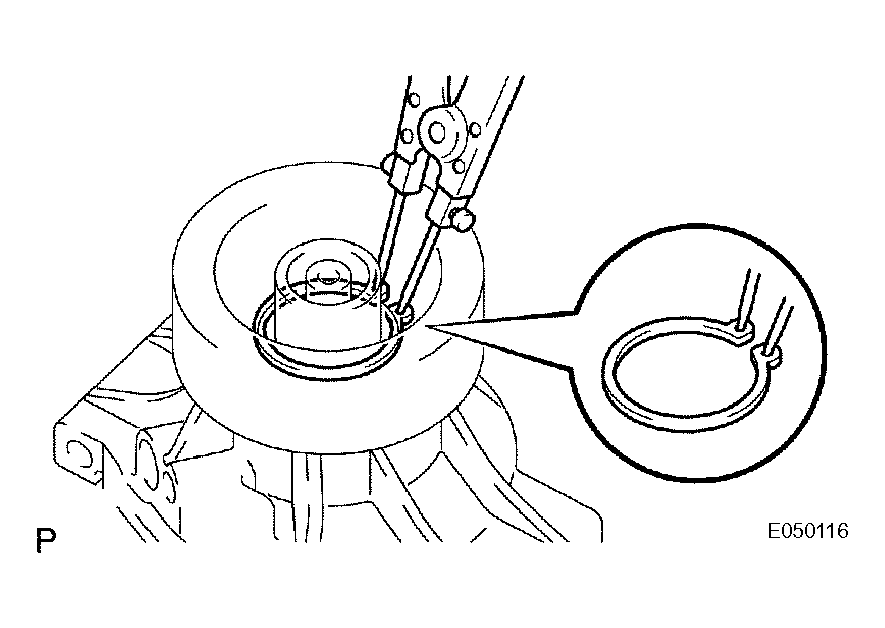

      Fig 3: Removing Snap Ring And Magnetic Clutch Stator
      G04465789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
