COMPRESSOR AND MAGNETIC CLUTCH (for 1ZZ-FE): Reassembly

INSTALL MAGNETIC CLUTCH ASSEMBLY

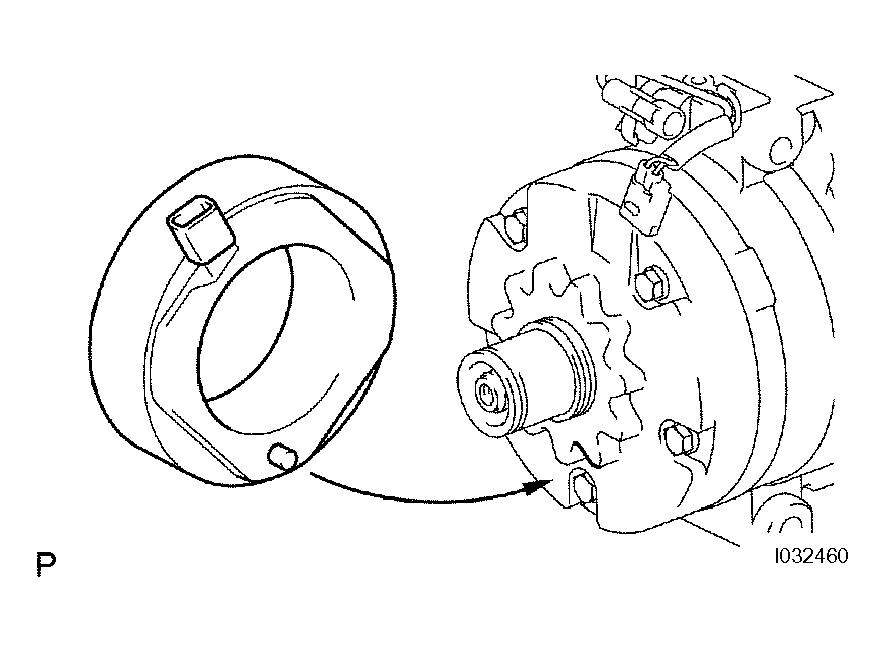

1. Matching the parts shown in the illustration, install the magnetic clutch stator.

  Fig 1: Installing Magnetic Clutch Stator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

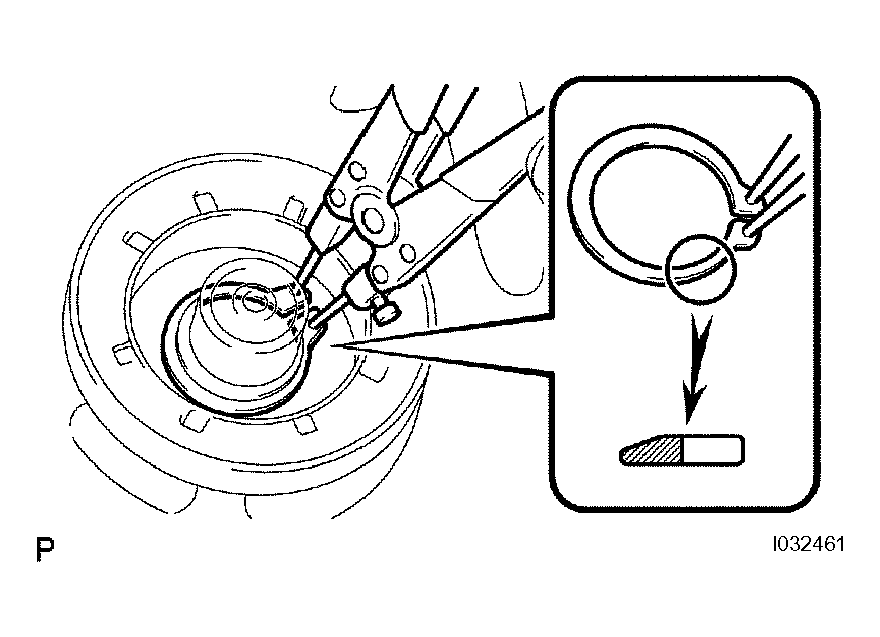

2. Using a snap ring expander, install a new snap ring with the chamfered side facing up.
3. Install the screw and connect the connector.

  Fig 2: Installing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

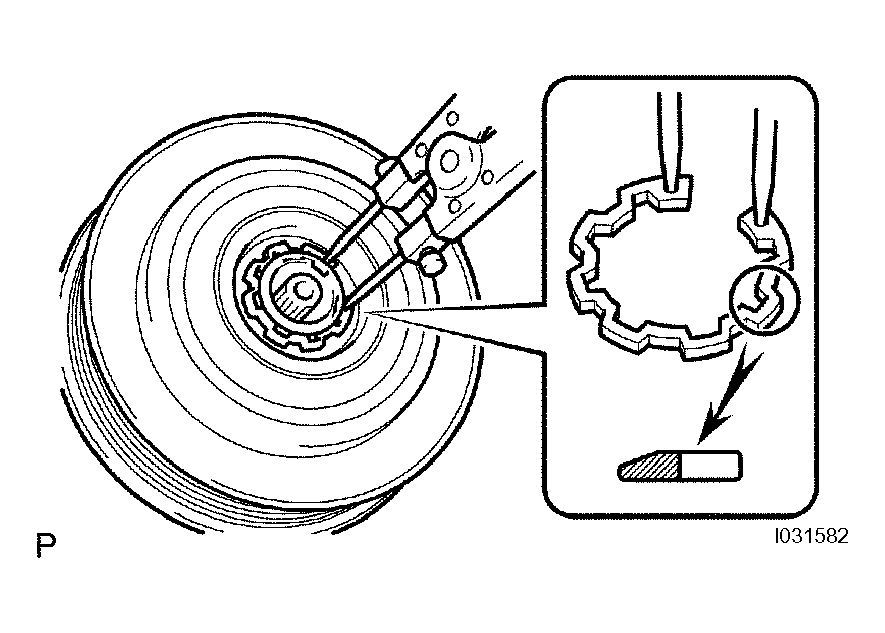

4. Using a snap ring expander, install the magnetic clutch rotor and a new snap ring with the chamfered side facing up.
5. Install the magnetic clutch washer and magnetic clutch hub.
  NOTE: Do not change the combination of the magnetic clutch washers used before disassembly.

  Fig 3: Installing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using vise pliers, hold the magnetic clutch hub and install the bolt.
  Torque: 18 N*m (183 kgf*cm, 13 ft.*lbf)

  Fig 4: Installing Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
