Manual Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)
G04464250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

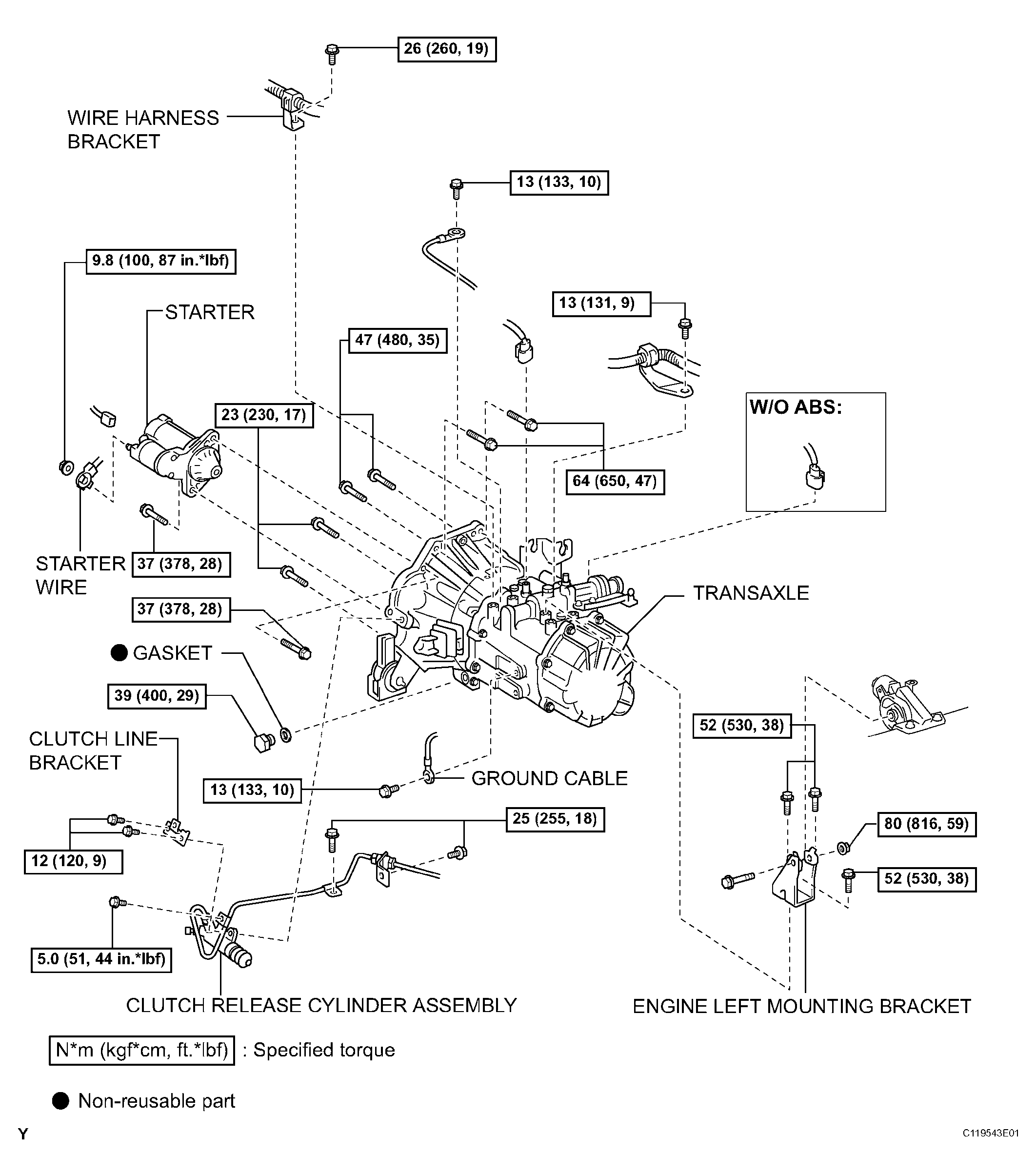

Fig 2: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 3)
G04464251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

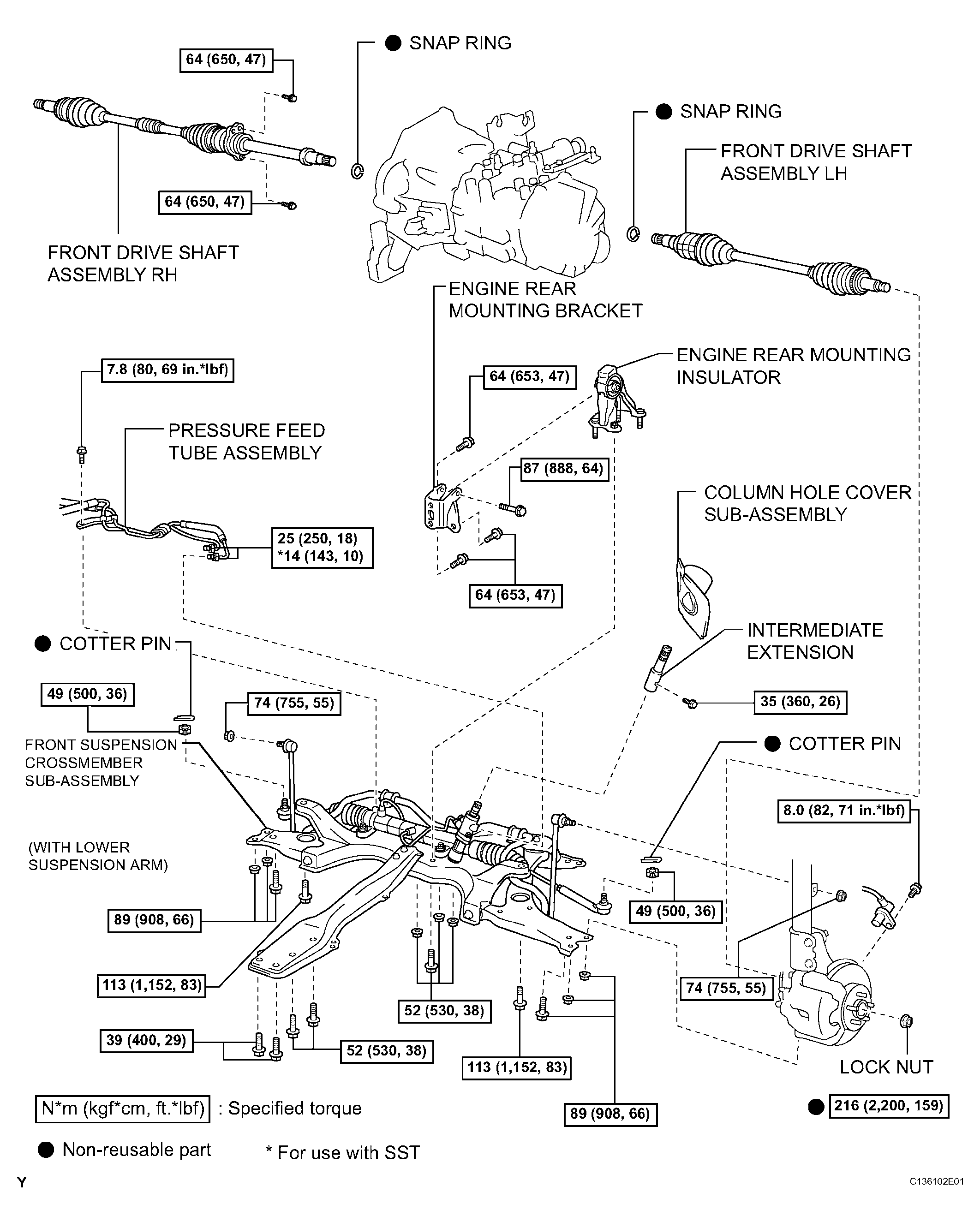

Fig 3: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)
G04464252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
