Pump Attenuator: Components

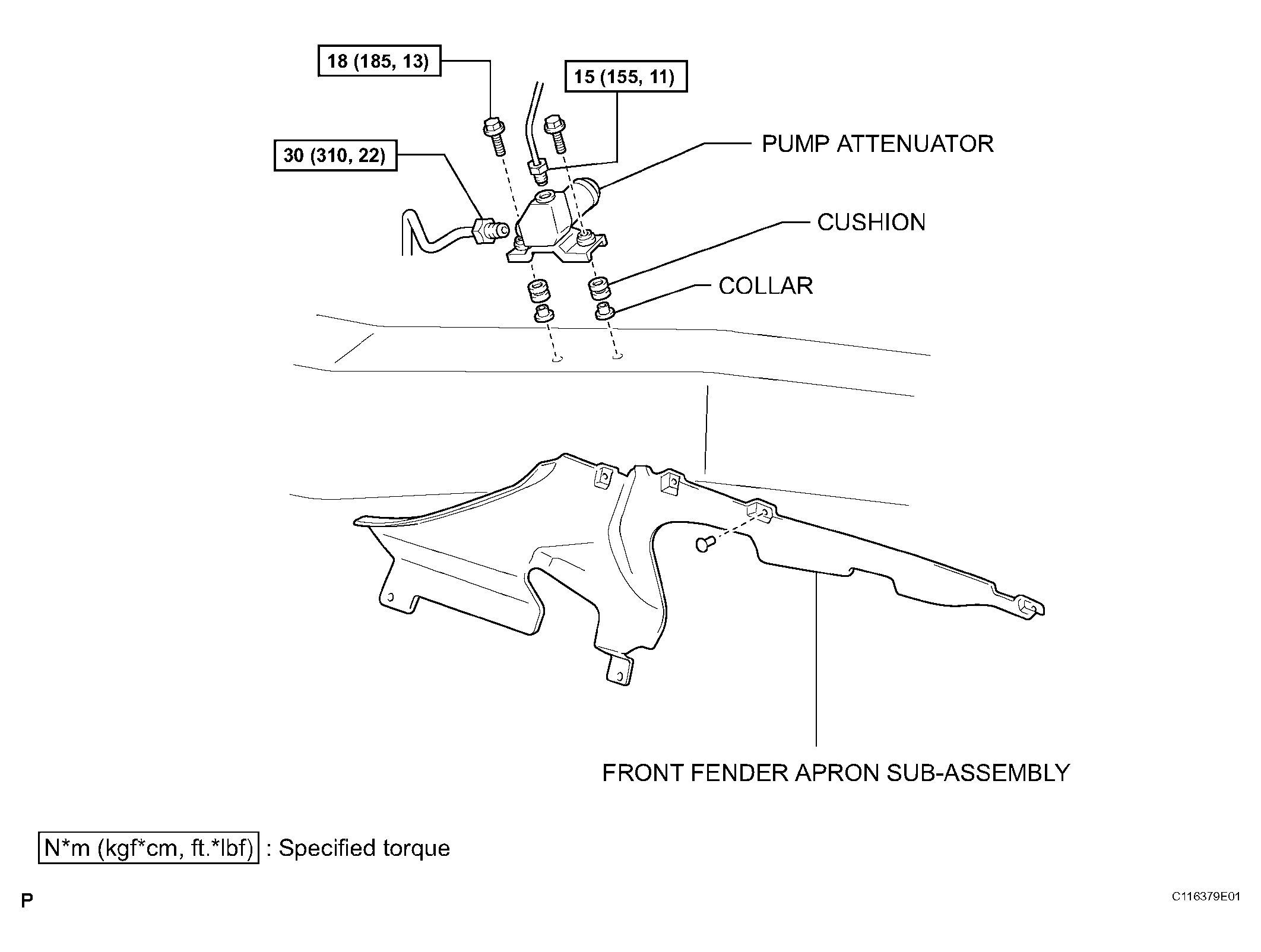

Fig 1: Pump Attenuator Replacement Components With Torque Specifications

G04437514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
