Height Control Indicator Light Circuit: Wiring Diagram

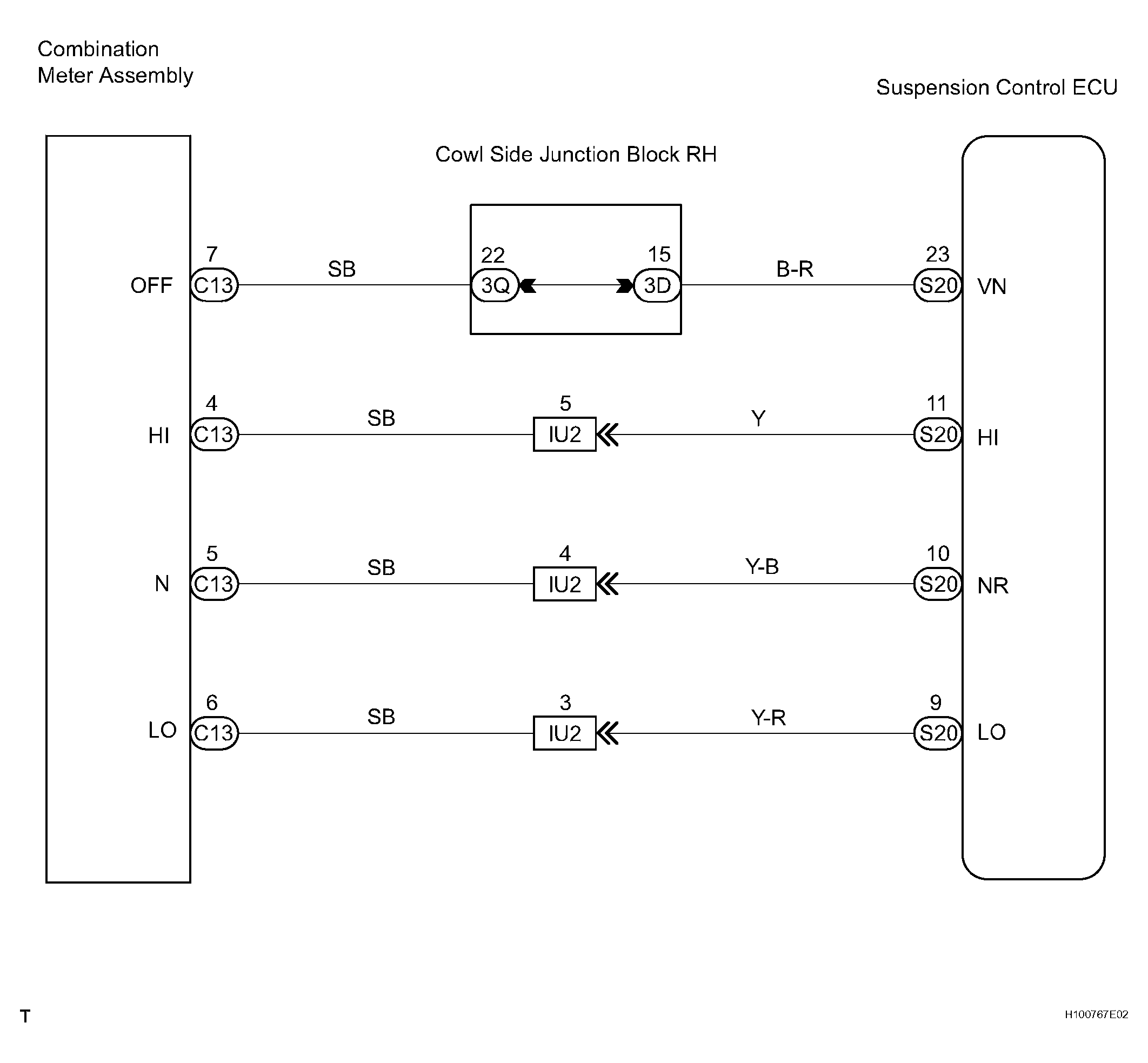

Fig 1: Height Control Indicator Light Wiring Diagram

G04437483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
