Active Control Engine Mount System: Wiring Diagram

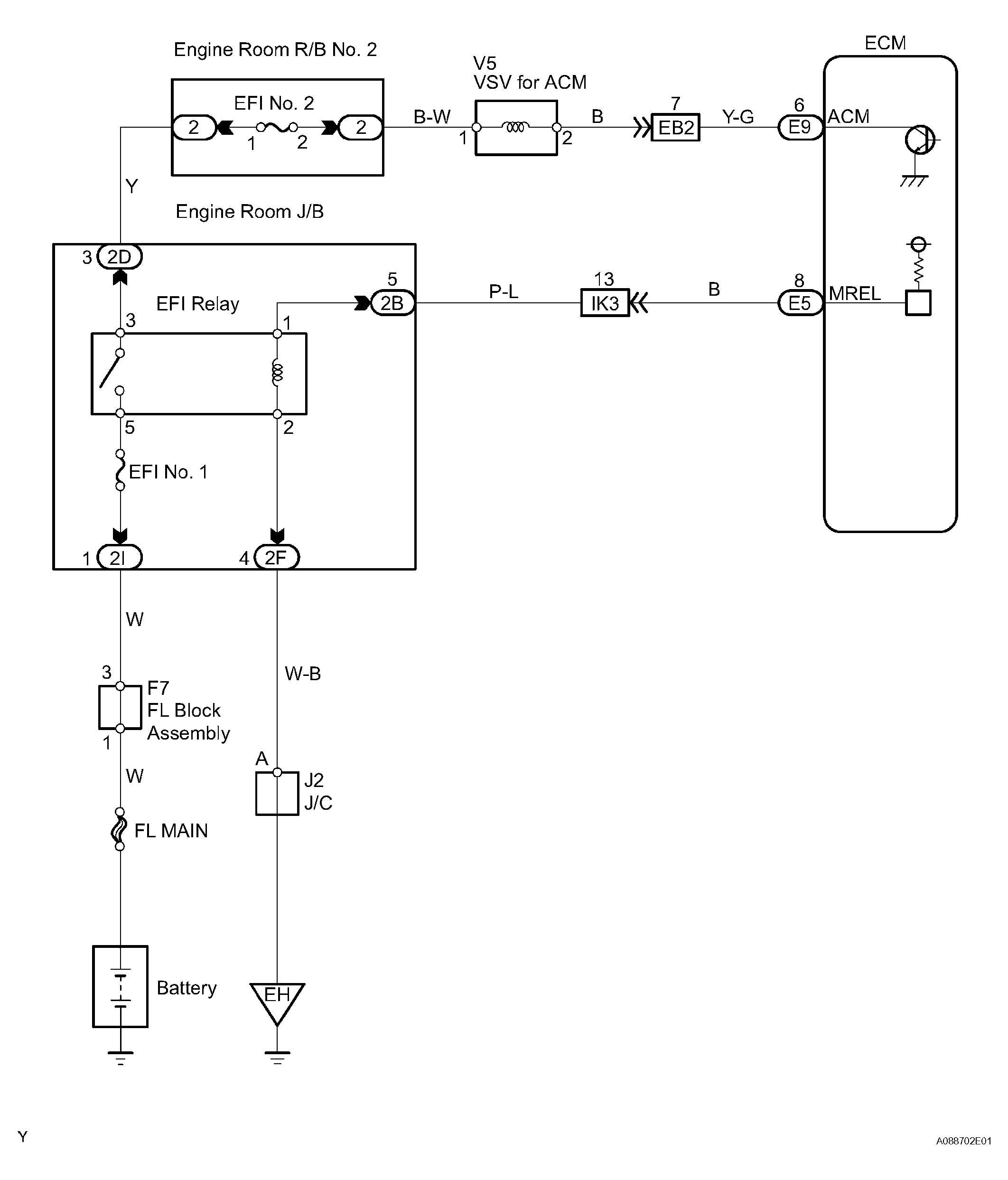

Fig 1: Engine Room J/B - Wiring Diagram

G04427298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
