Inspection Procedure

  1. INSPECT FUSE (PWR, ECU-IG, P/W NO. 2, AM1)
    1. Remove the PWR M-fuse, ECU-IG, P/W NO. 2 and AM1 fuses from the instrument panel J/B.
    2. Measure the resistance of the fuses.

      Resistance: Below 1

    NG: REPLACE FUSE

    OK: GO TO NEXT STEP

  2. INSPECT RELAY (MARKING: IG1, PWR)
    1. Remove the IG1 and PWR relays from the instrument panel J/B.
    2. Measure the resistance of the relays.

      Resistance

      RELAY (MARKING: IG1, PWR)

      Terminal No. Specified Condition
      3 - 5 10 k or higher
      3 - 5 Below 1
      (when battery voltage is applied to terminals 1 and 2)

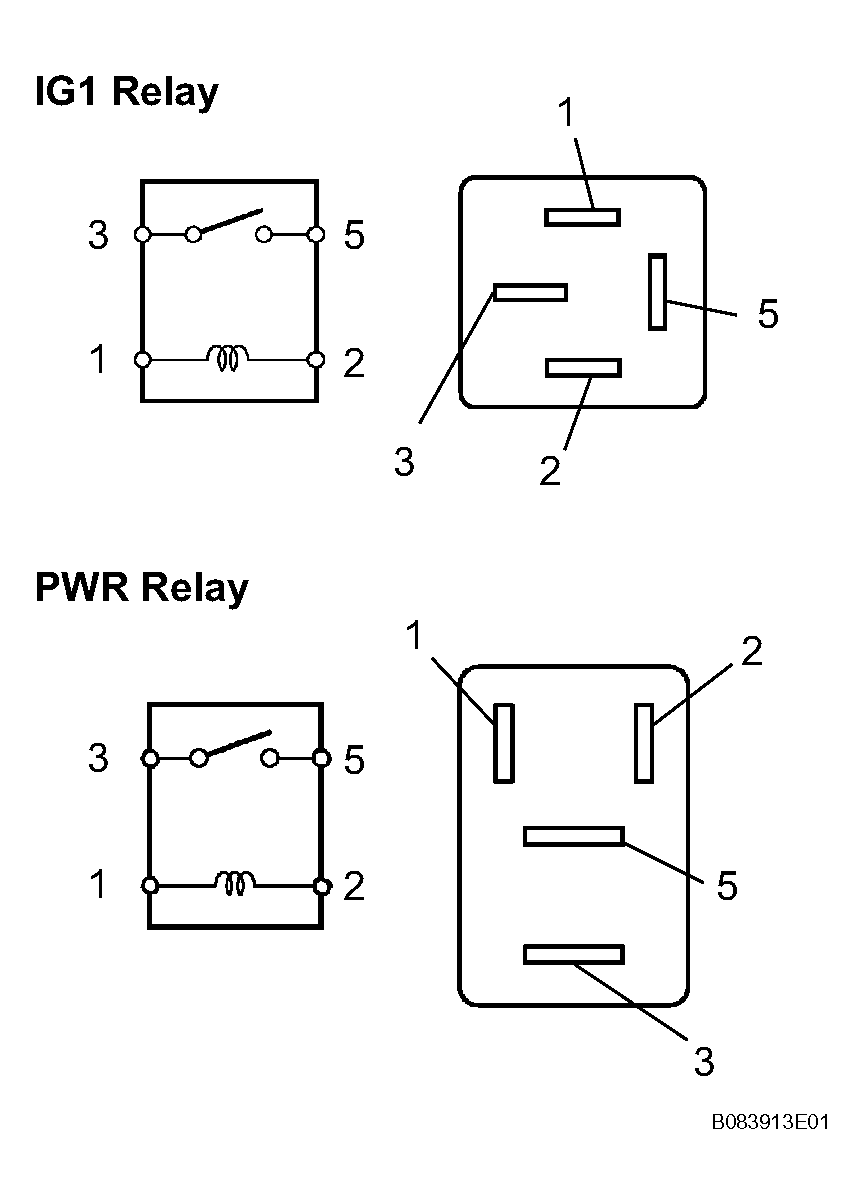

      Fig 1: Inspecting Relay
      G04387856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE RELAY

    OK: GO TO NEXT STEP

  3. CHECK HARNESS AND CONNECTOR (FOR POWER SOURCE OF INSTRUMENT PANEL J/B)
    1. Disconnect the 2A, 2F and 2I J/B connectors.
    2. Measure the voltage and resistance of the wire harness side connectors.

      Voltage and Resistance

      FOR POWER SOURCE OF INSTRUMENT PANEL J/B

      Tester Connection Condition Specified Condition
      2A-1 - Body ground Always 10 to 14 V
      2F-10 - Body ground Always 10 to 14 V
      2I-4 - 2I-9 Ignition switch ON Below 1

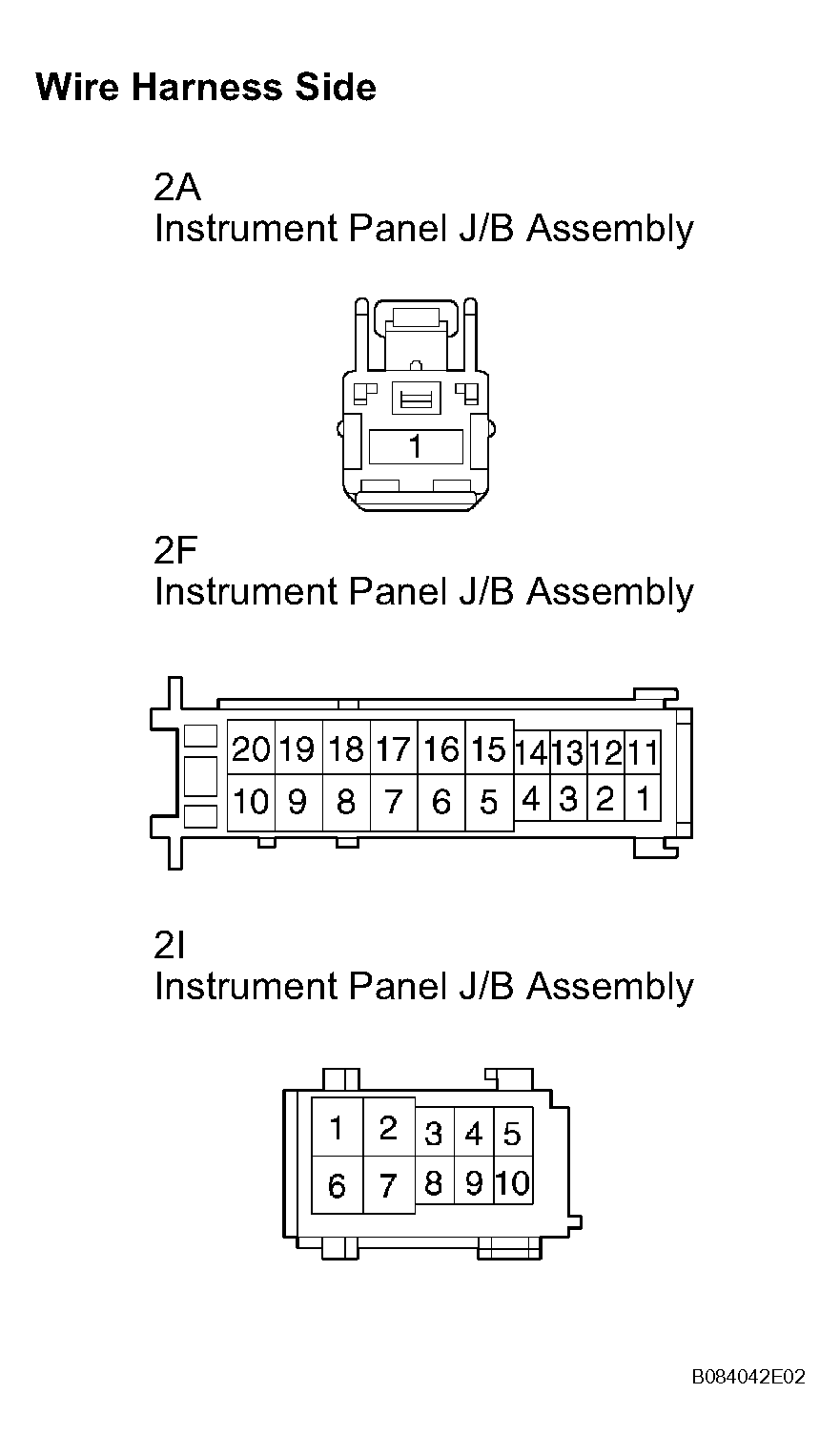

      Fig 2: Checking Harness And Connector (For Power Source Of Instrument Panel J/B)
      G04387857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (POWER WINDOW MASTER SWITCH - BATTERY AND BODY GROUND)
    1. Disconnect the D8 master switch connector.
    2. Measure the voltage and resistance of the wire harness side connector.

      Voltage and resistance

      POWER WINDOW MASTER SWITCH - BATTERY AND BODY GROUND

      Tester Connection Condition Specified Condition
      D8-6 (BW) - Body ground Ignition switch ON 10 to 14 V
      D8-7 (IG) - Body ground Ignition switch ON 10 to 14 V
      D8-1 (E) - Body ground Always Below 1
      Fig 3: Checking Harness And Connector (Power Window Master Switch - Battery And Body Ground)
      G04387858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step 5

    OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

  5. CHECK HARNESS AND CONNECTOR (POWER WINDOW MASTER SWITCH - INSTRUMENT PANEL J/B)
    1. Disconnect the D8 master switch connector.
    2. Disconnect the 2F and 2K J/B connectors.
    3. Measure the resistance of the wire harness side connectors.

      Resistance

      POWER WINDOW MASTER SWITCH - INSTRUMENT PANEL J/B

      Tester Connection Specified Condition
      D8-6 (BW) - 2K-10 Below 1
      D8-7 (IG) - 2F-17 Below 1
      D8-6 (BW) or 2K-10 - Body ground 10 k or higher
      D8-7 (IG) or 2F-17 - Body ground 10 k or higher

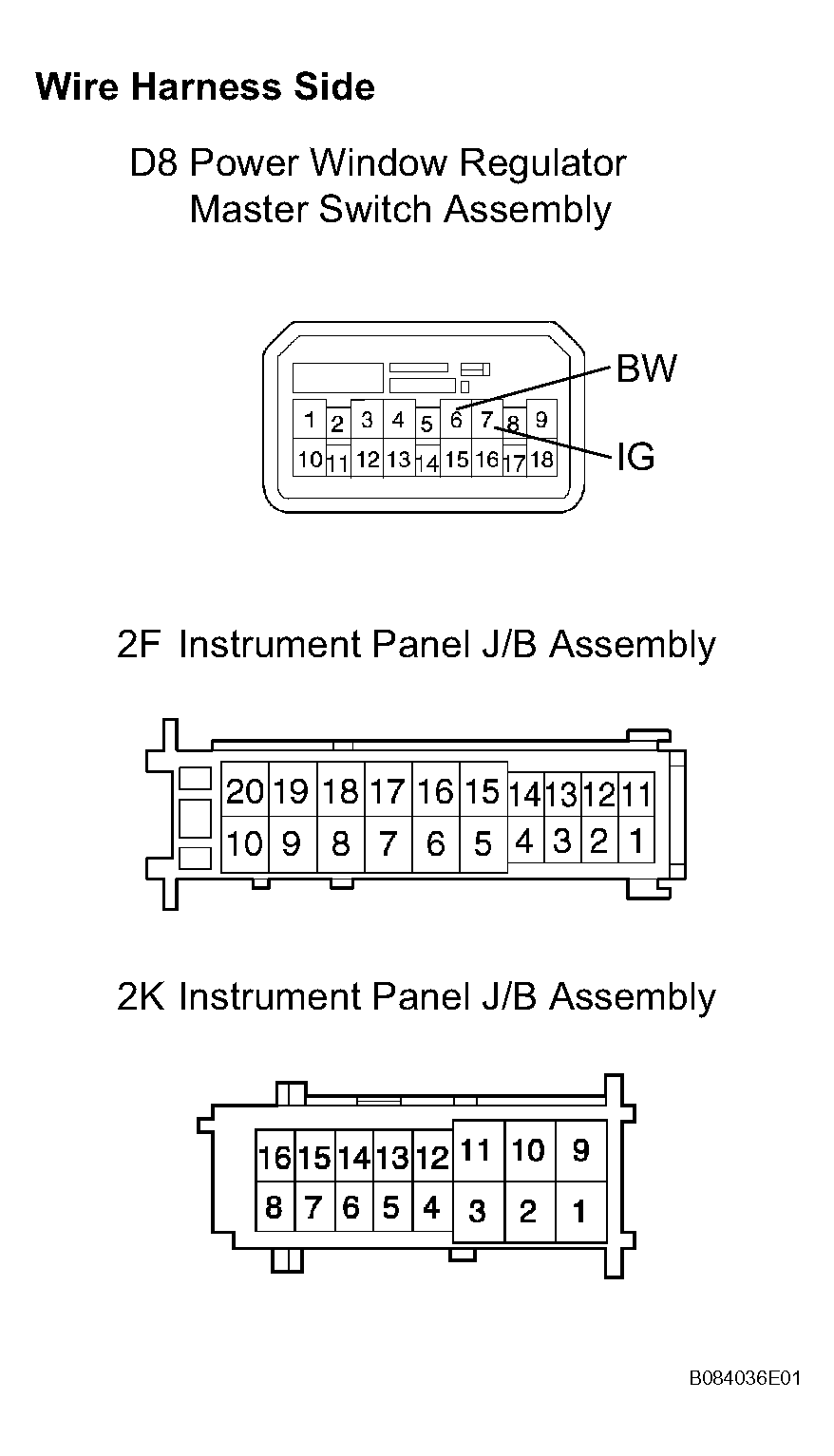

      Fig 4: Checking Harness And Connector (Power Window Master Switch - Instrument Panel J/B)
      G04387859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE INSTRUMENT PANEL J/B
