Power Outlet and Cigarette Lighter: Notes

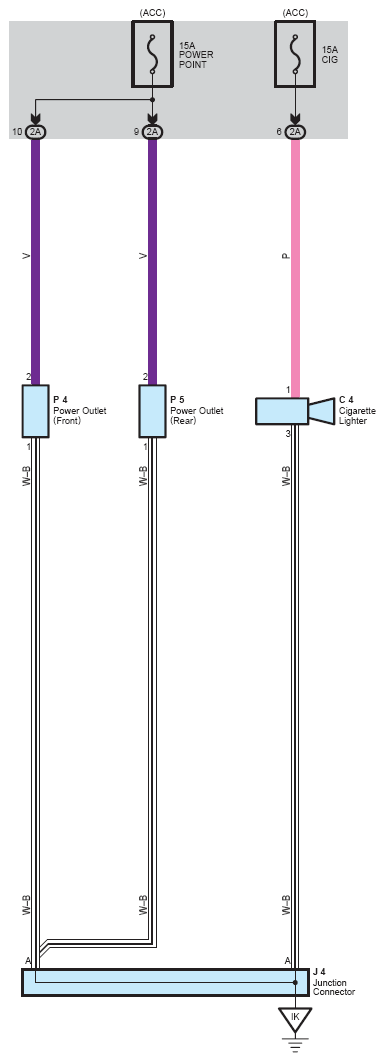

Fig 1: Power Outlet And Cigarette Lighter System Wiring Diagram

G08775649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
