Power Adjustable Pedals: Notes

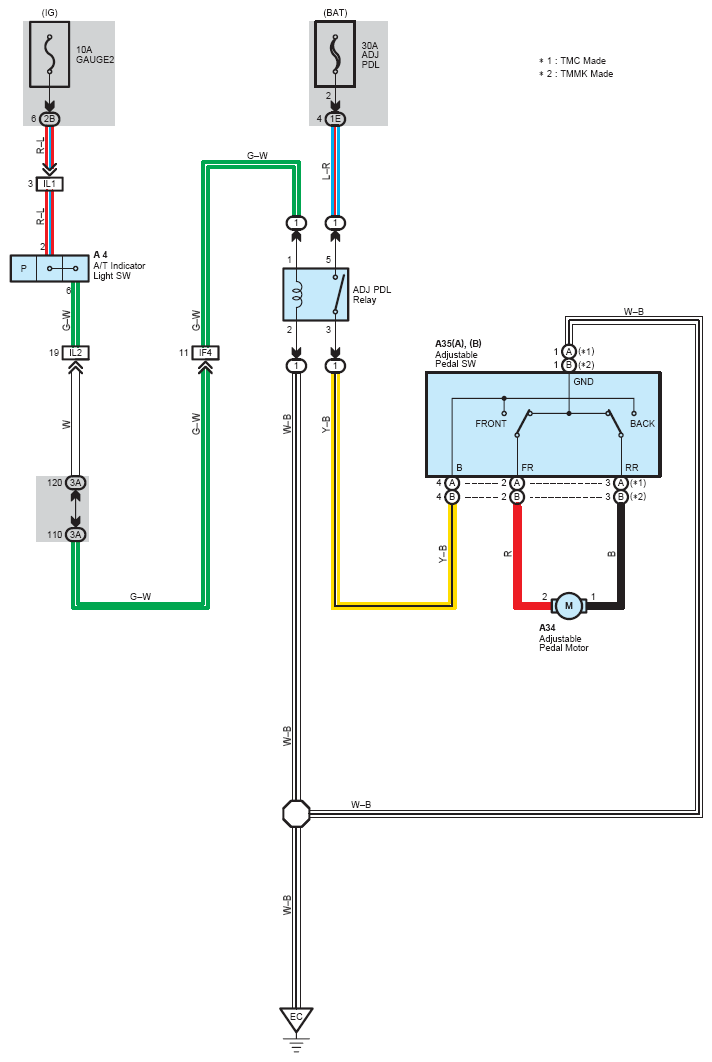

Fig 1: Power Adjustable Pedals System Wiring Diagram
G08775653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
