Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Interlocked With Key Are Active): Wiring Diagram

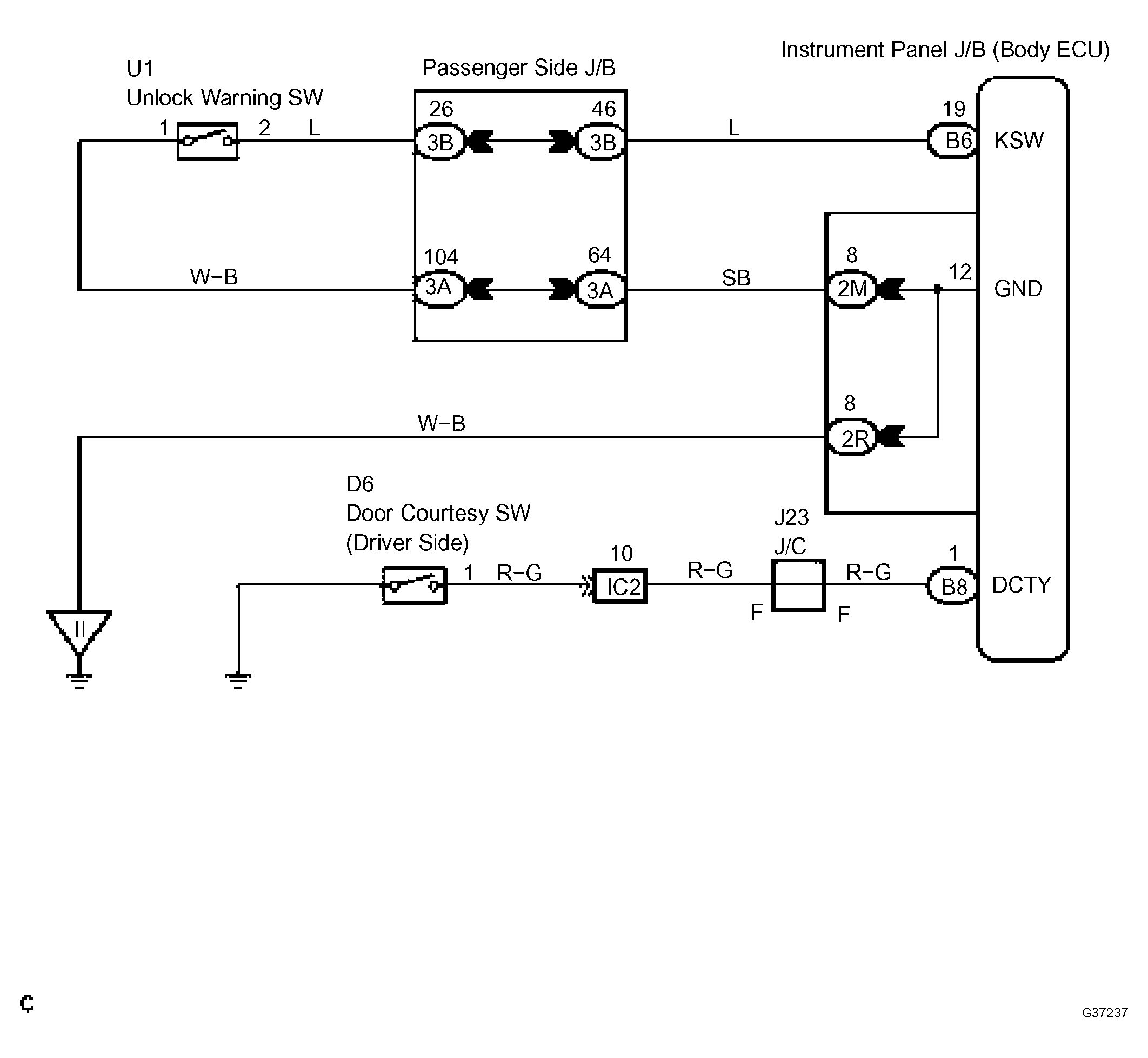

Fig 1: Wiring Diagram - Unlock Warning Switch
G04391087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
