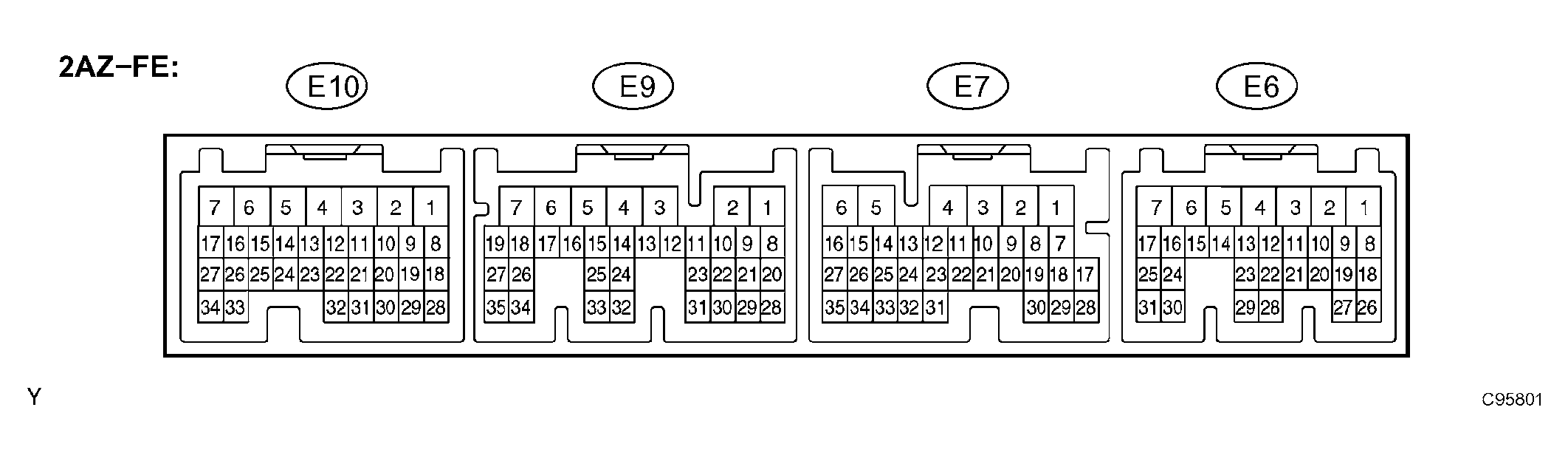

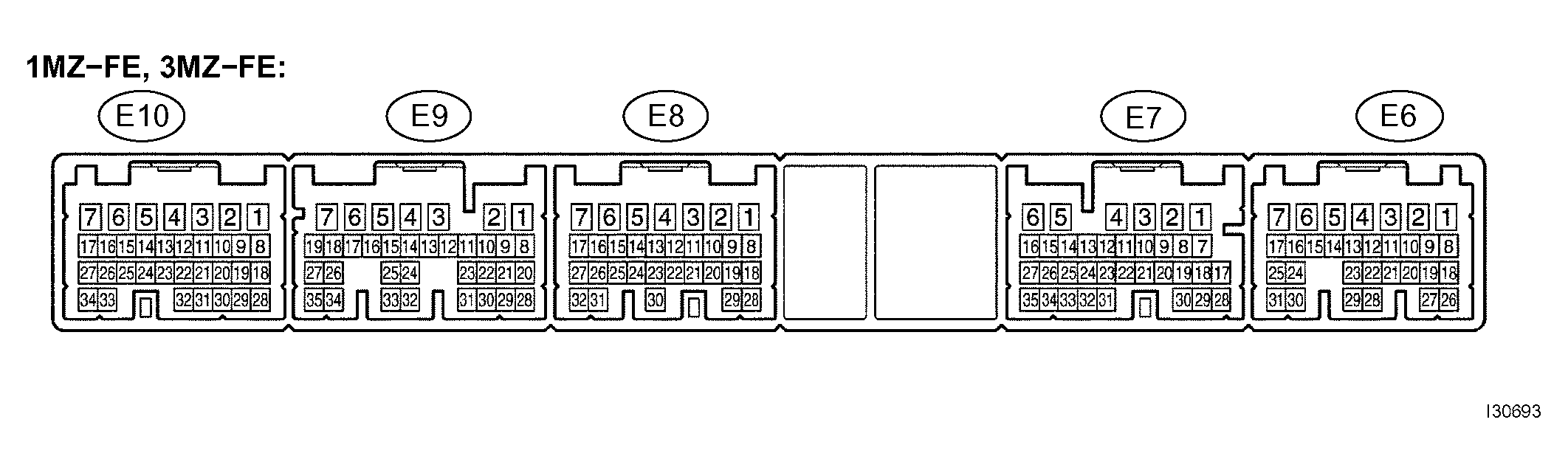

| E8-1 <--> Body ground () E10-3 <--> Body ground () (E1 <--> Body ground) |
BR <--> Body ground |
Always |
Below 1 Ω |
| E8-7 <--> Body ground () E9-4 <--> Body ground () (E03 <--> Body ground) |
W-B <--> Body ground |
Always |
Below 1 Ω |
| E7-10 <--> E8-1 () E7-21 <--> E10-3 () (D <--> E1) |
W-L <--> BR |
Shift to except D position (), Depress the clutch pedal () |
Below 1 V |
| Shift to D position (), Not depress the clutch pedal () |
10 - 16 V |
| E7-12 <--> E8-1 () E7-16 <--> E10-3 () (ST1- <--> E1) |
R-B <--> BR |
Brake pedal pushed (Stop lamp switch ON) |
Below 1 V |
| Brake pedal released (Stop lamp switch OFF) |
1.0 - 14 V |
| E7-13 <--> E8-1 () E7-18 <--> E10-3 () (PI <--> E1) |
P-L <--> BR |
Ignition switch ON Cruise control main switch ON |
Below 1 V |
| Ignition switch ON Cruise control main switch OFF |
10 - 16 V |
| E7-17 <--> E8-1 () E7-8 <--> E10-3 () (SPD <--> E1) |
V-W <--> BR |
Engine start <--> Car stoppage |
Below 1.5 V <--> 4.7 - 16 V |
| During driving (Pulse generated) |
3 - 7 V |
| E7-19 <--> E8-1 () E7-4 <--> E10-3 () (STP <--> E1) |
G-W <--> BR |
Brake pedal released (Stop lamp switch OFF) |
Below 1 V |
| Brake pedal pushed (Stop lamp switch ON) |
1.0 - 14 V |
| E7-24 <--> E8-1 () E7-31 <--> E10-3 () (CCS <--> E1) |
W <--> BR |
Ignition switch ON CANCEL switch ON SET/ COAST switch ON RES/ ACC switch ON |
10 - 16 V 6.6 - 11.4 V 4.5 - 8.1 V 2.3 - 4.5 V |
