Engine Immbiliser System: Notes

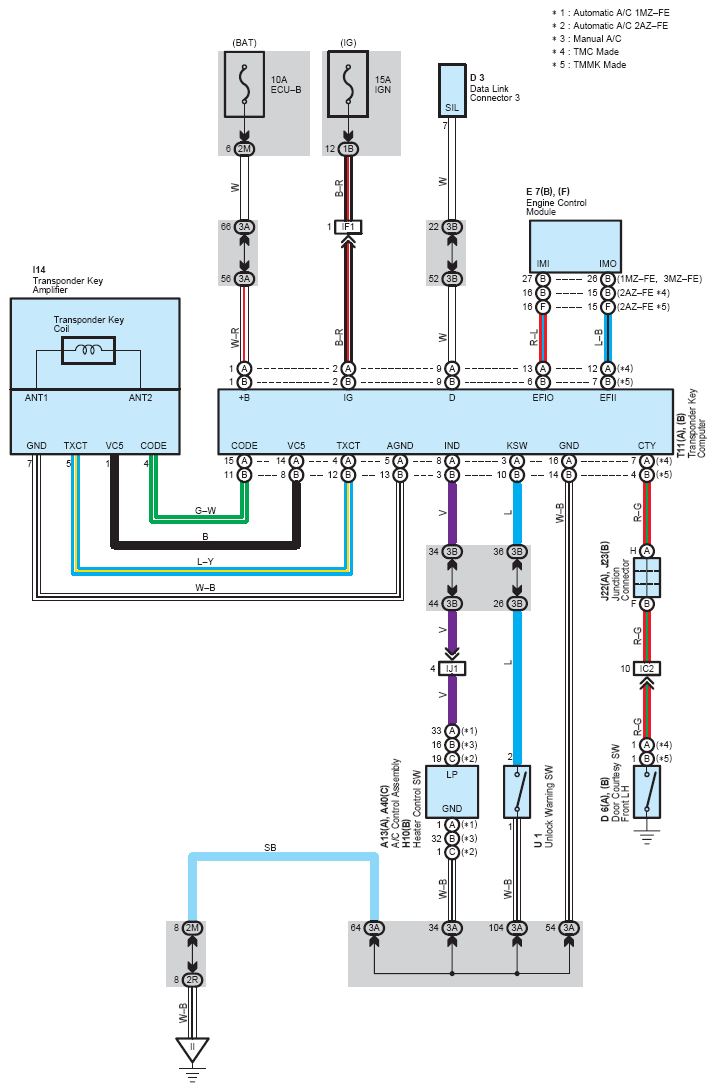

Fig 1: Engine Immbiliser System Wiring Diagram

G08775572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
