Cursor or MAP Rotates when Vehicle Stopped

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONDITION
    1. Check with the customer if the vehicle has been turned by a turntable.

      OK: Vehicle has not been turned by turntable.

      HINT:

      If the vehicle is rotated on a turntable with the ignition switch ON, the system may store the angular velocity. As a result, the vehicle position cursor may deviate.

    NG: TURN IGNITION SWITCH TO ON POSITION WHEN VEHICLE IS COMPLETELY STOPPED

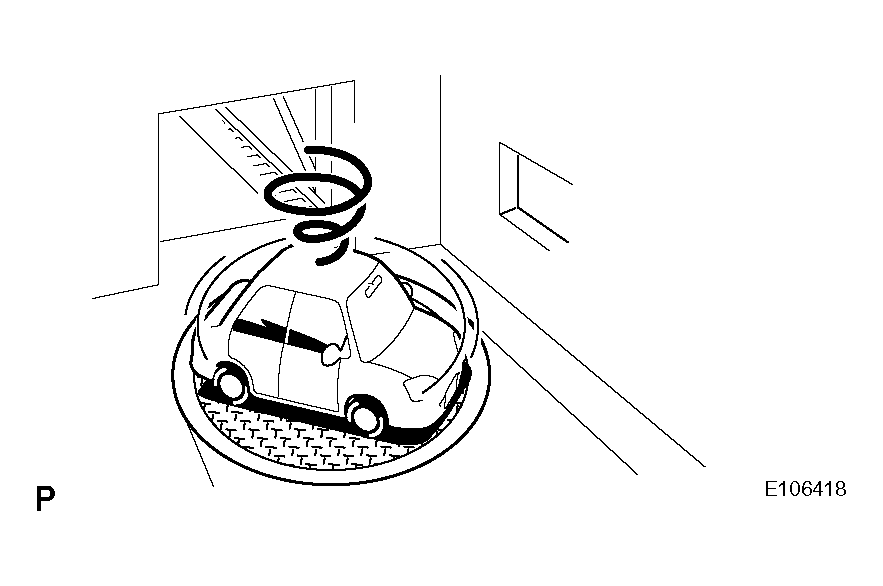

    Fig 1: Checking Vehicle Turned By Turntable
    G04387683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
