Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR
    1. Disconnect the connectors shown in the illustration on the left from the stereo component amplifier assembly or the radio receiver assembly and speakers.

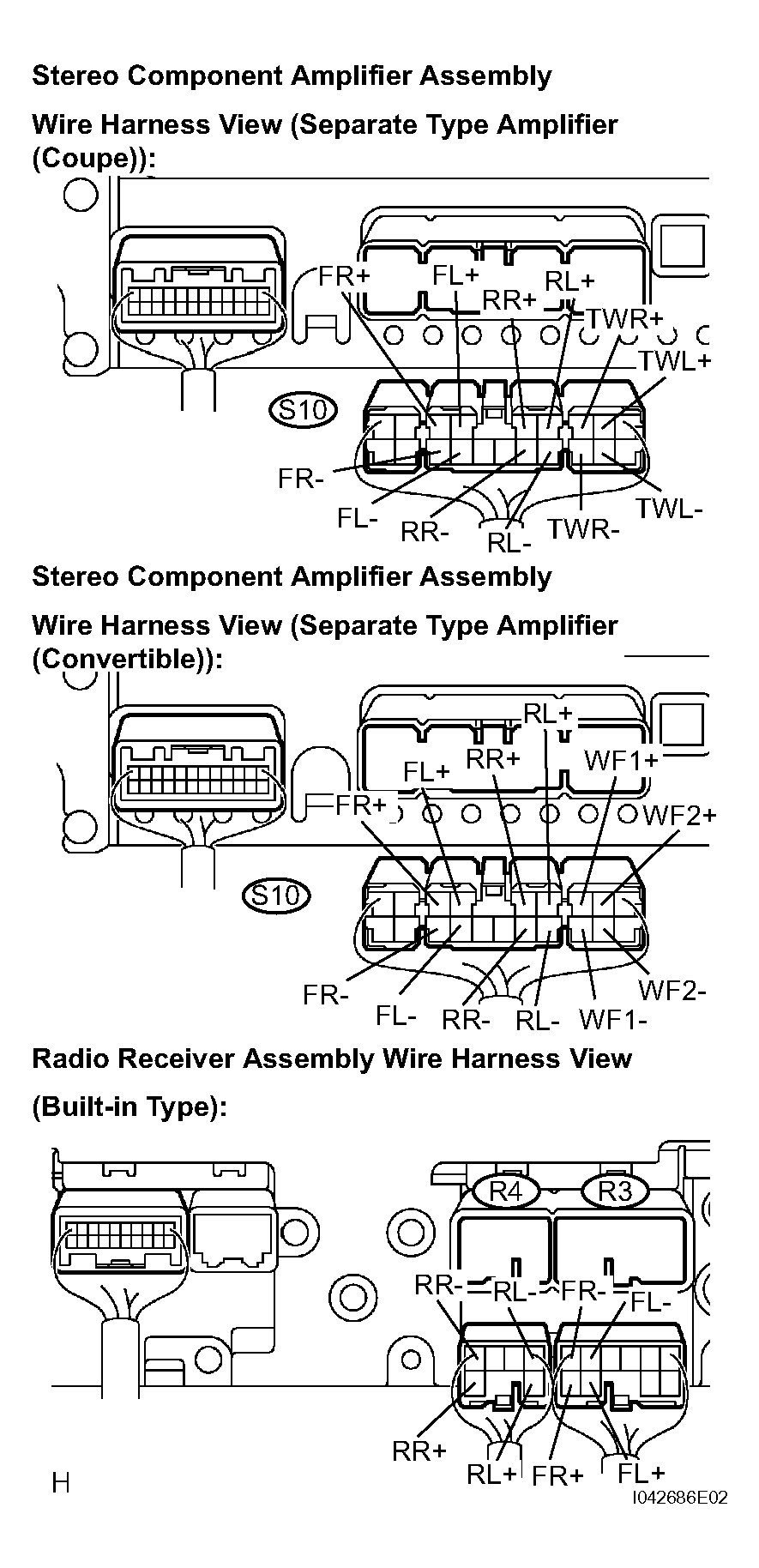

      Fig 1: Identifying Stereo Component Amplifier And Radio Receiver Assembly Connector Terminals
      G04387538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance between the speaker and the stereo component amplifier assembly or the radio receiver assembly to check for an open circuit in the wire harness.

      Resistance: Below 1 Ω

    3. Measure the resistance between the speaker and body ground to check for a short circuit in the wire harness.

      Resistance: 10 kΩ or higher

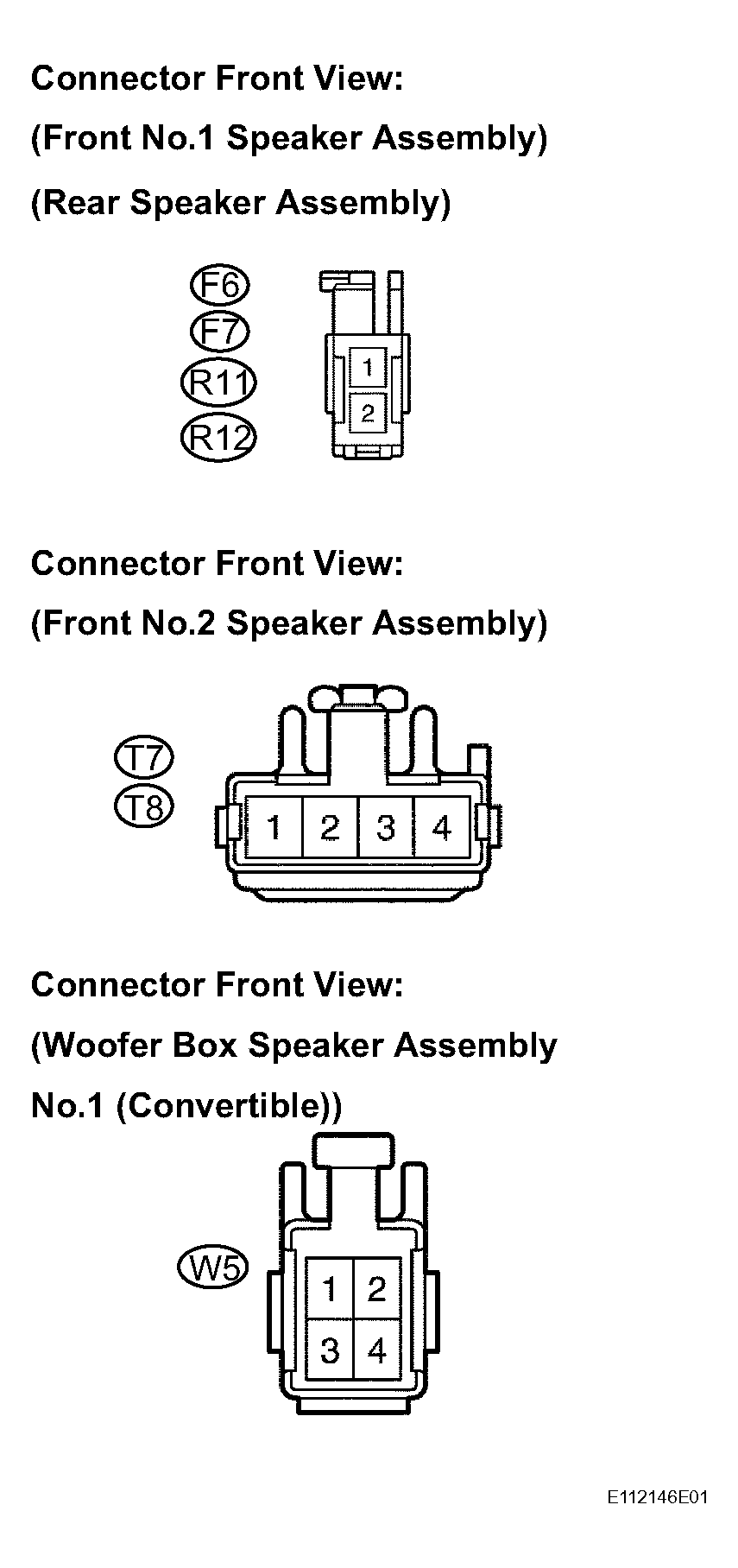

    4. Fig 2: Identifying Speaker Connector Front View
      G04387539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  2. CHECK VEHICLE TYPE
    1. Choose type to be inspected.
      VOLTAGE SPECIFICATIONS VOLTAGE SPECIFICATIONS

      Type Proceed to
      w/Woofer Box Speaker Assembly No.1 A
      w/o Woofer Box Speaker Assembly No.1 B

    B: Go to step   4

    A: Go to next step

  3. INSPECT WOOFER BOX SPEAKER ASSEMBLY NO.1
    1. Resistance check.
    2. Measure the resistance according to the value(s) in the table below.
      NOTE: The speaker should not be removed for checking.

      Resistance

      RESISTANCE SPECIFIED CONDITION RESISTANCE SPECIFIED CONDITION

      Tester connection Condition Specified condition
      1 - 3 Always 0.81 to 1.61 Ω
      2 - 4 Always 0.81 to 1.61 Ω
      Fig 3: Identifying Woofer Box Speaker Assembly No.1 Connector Terminals
      G04387540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE WOOFER BOX SPEAKER ASSEMBLY NO.1

    OK: GO TO NEXT STEP

  4. INSPECT FRONT NO.1 SPEAKER ASSEMBLY
    1. Resistance check.
      1. Measure the resistance between the terminals of the speaker.

        Resistance:

        Separate Type Amplifier (Coupe): 3 to 4 Ω

        Separate Type Amplifier (Convertible): 3.5 to 4.5 Ω

        Built-in Type Amplifier: Approximately 4 Ω

    NG: REPLACE FRONT NO.1 SPEAKER ASSEMBLY

    OK: GO TO NEXT STEP

  5. INSPECT FRONT NO.2 SPEAKER ASSEMBLY
    1. Check that malfunction disappears when another speaker in good condition is installed.

      OK: Malfunction disappears.

      HINT:

      • Connect all the connectors to the speakers.
      • When there is a possibility that either right or left front speaker is detective, inspect by interchanging the right one and the left one.

    NG: REPLACE FRONT NO.2 SPEAKER ASSEMBLY

    OK: GO TO NEXT STEP

  6. INSPECT REAR SPEAKER ASSEMBLY
    1. Resistance check.
      1. Measure the resistance between the terminals of the speaker.

        Resistance:

        Separate Type Amplifier (Coupe): 1.75 to 2.75 Ω

        Separate Type Amplifier (Convertible): Approximately 2.4 Ω

        Built-in Type Amplifier: 5.1 to 6.9 Ω

    NG: REPLACE REAR SPEAKER ASSEMBLY

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON  PROBLEM SYMPTOMS TABLE
