Radio Receiver Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

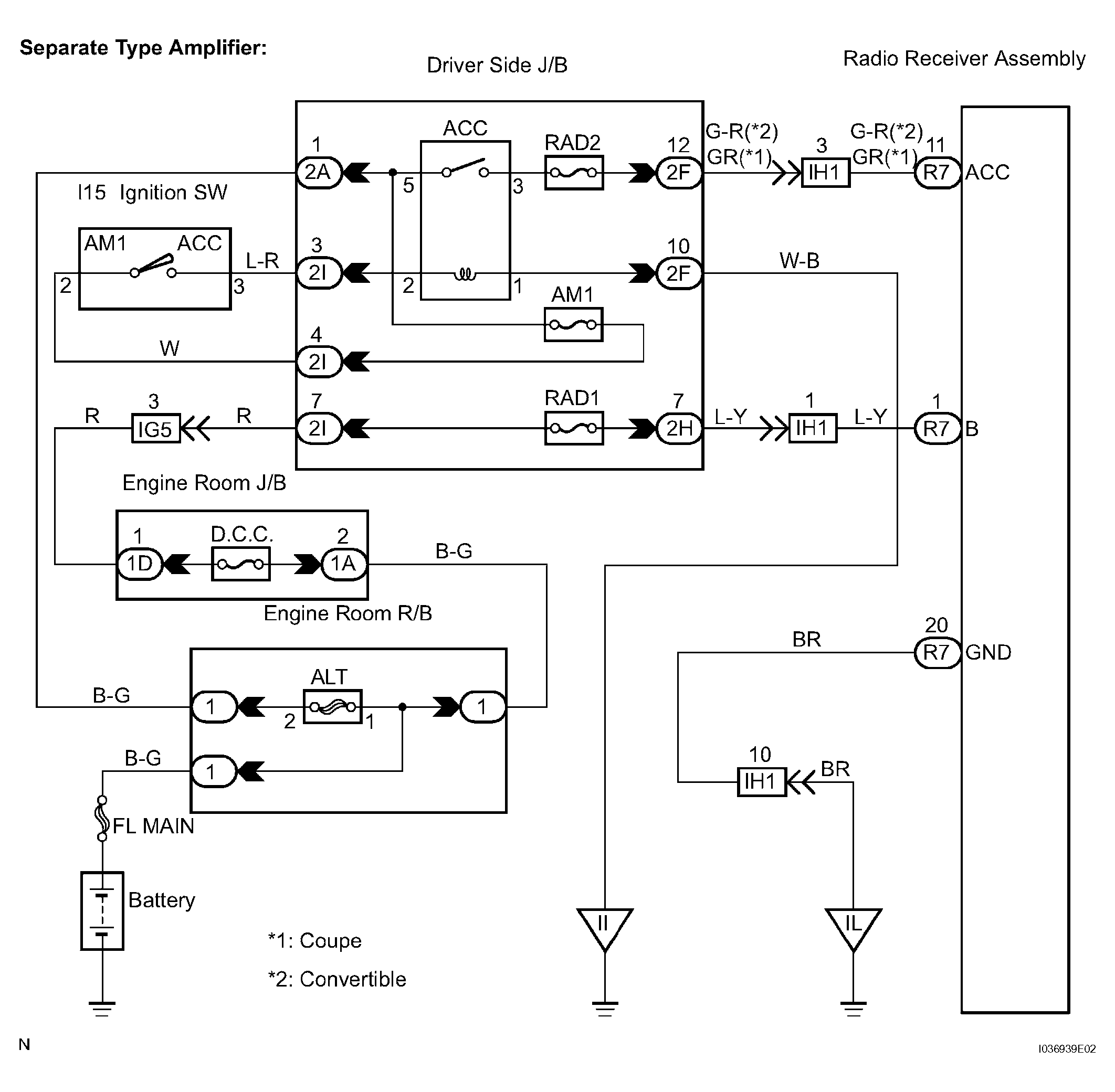

Fig 1: Radio Receiver Power Source Wiring Diagram (1 Of 2)
G04387554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

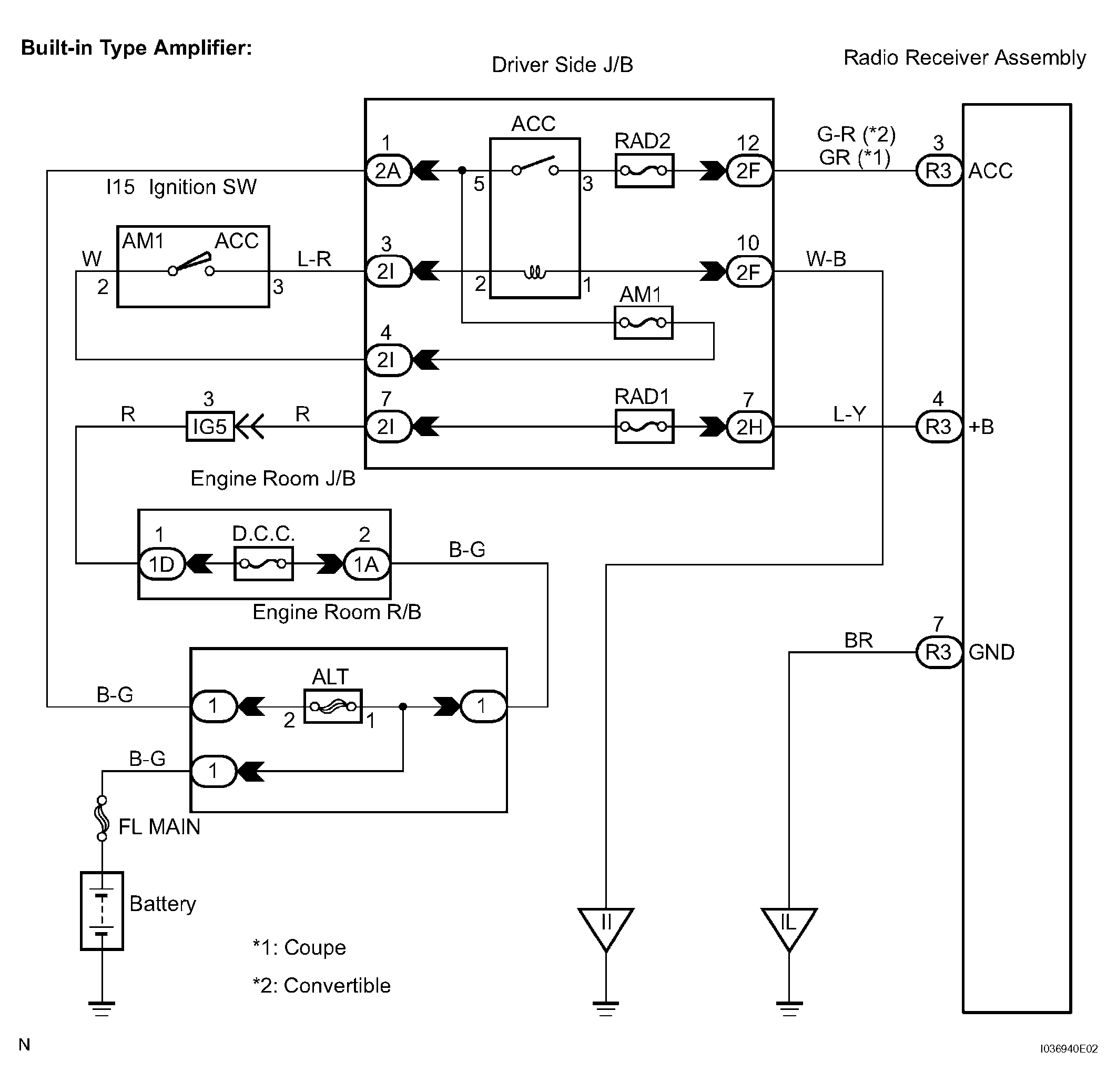

Fig 2: Radio Receiver Power Source Wiring Diagram (2 Of 2)
G04387555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
