Section 43 (Audio/Visual)
>>
Audio And Visual System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

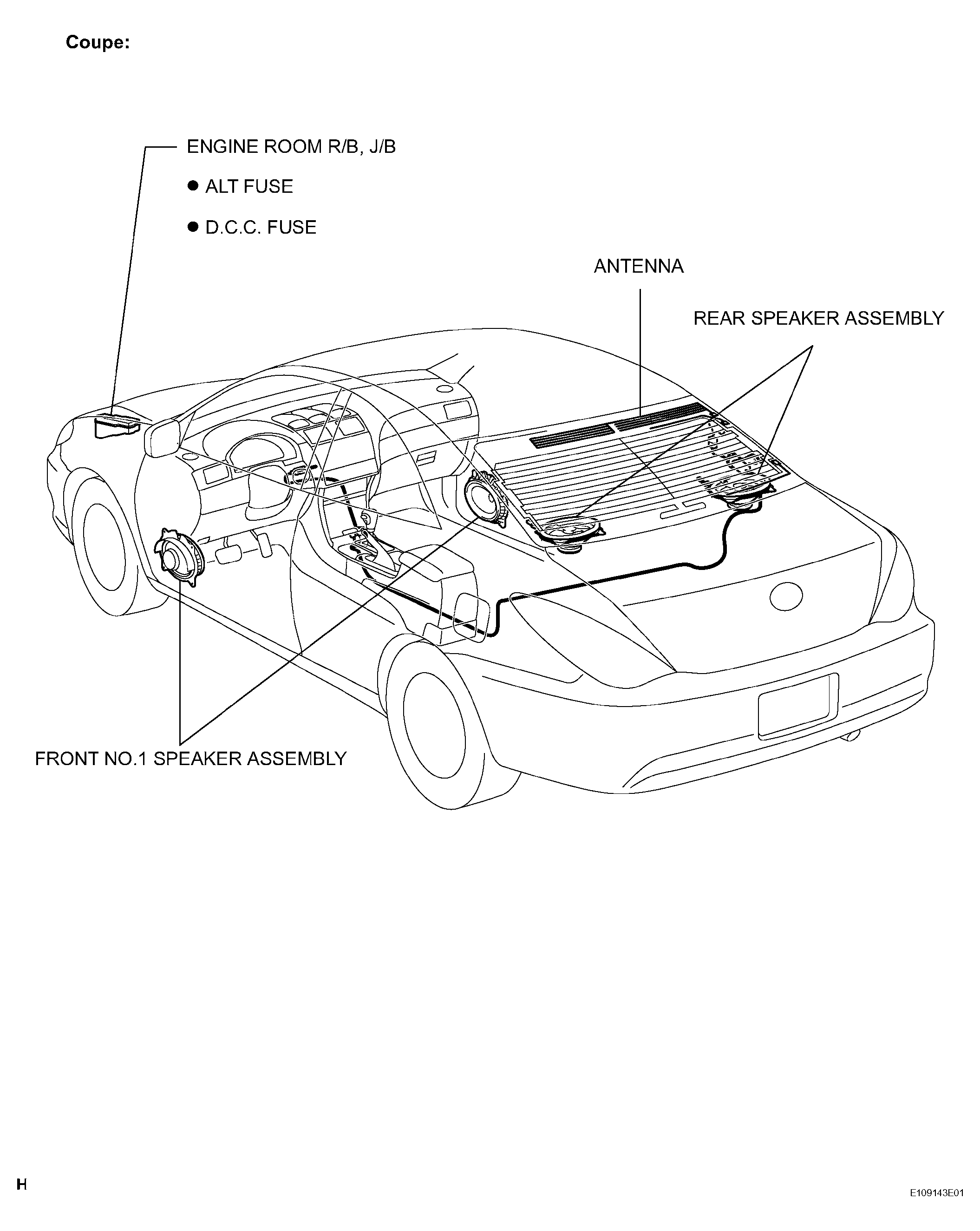

Fig 1: Locating Audio And Visual System Parts (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

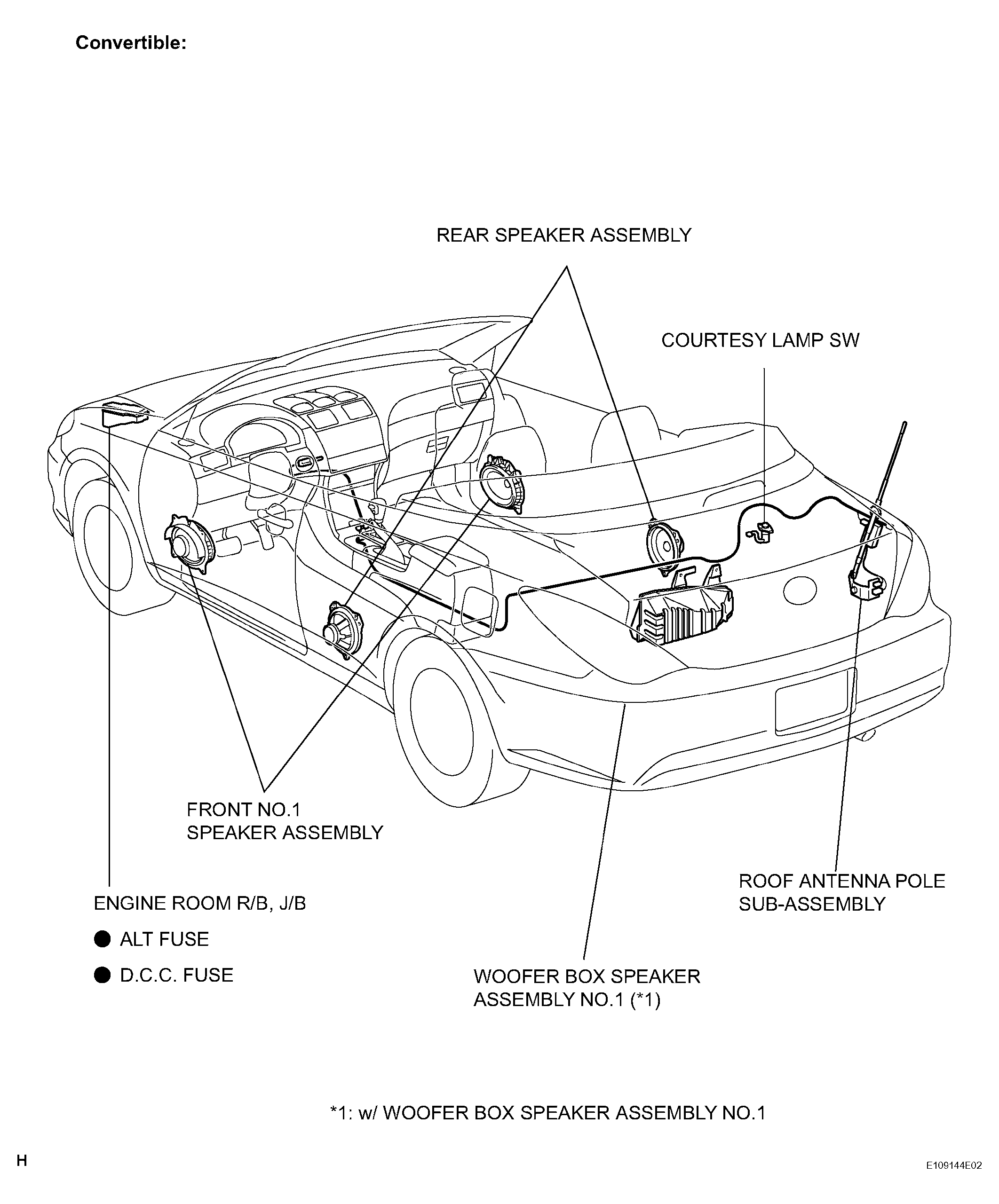

Fig 2: Locating Audio And Visual System Parts (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

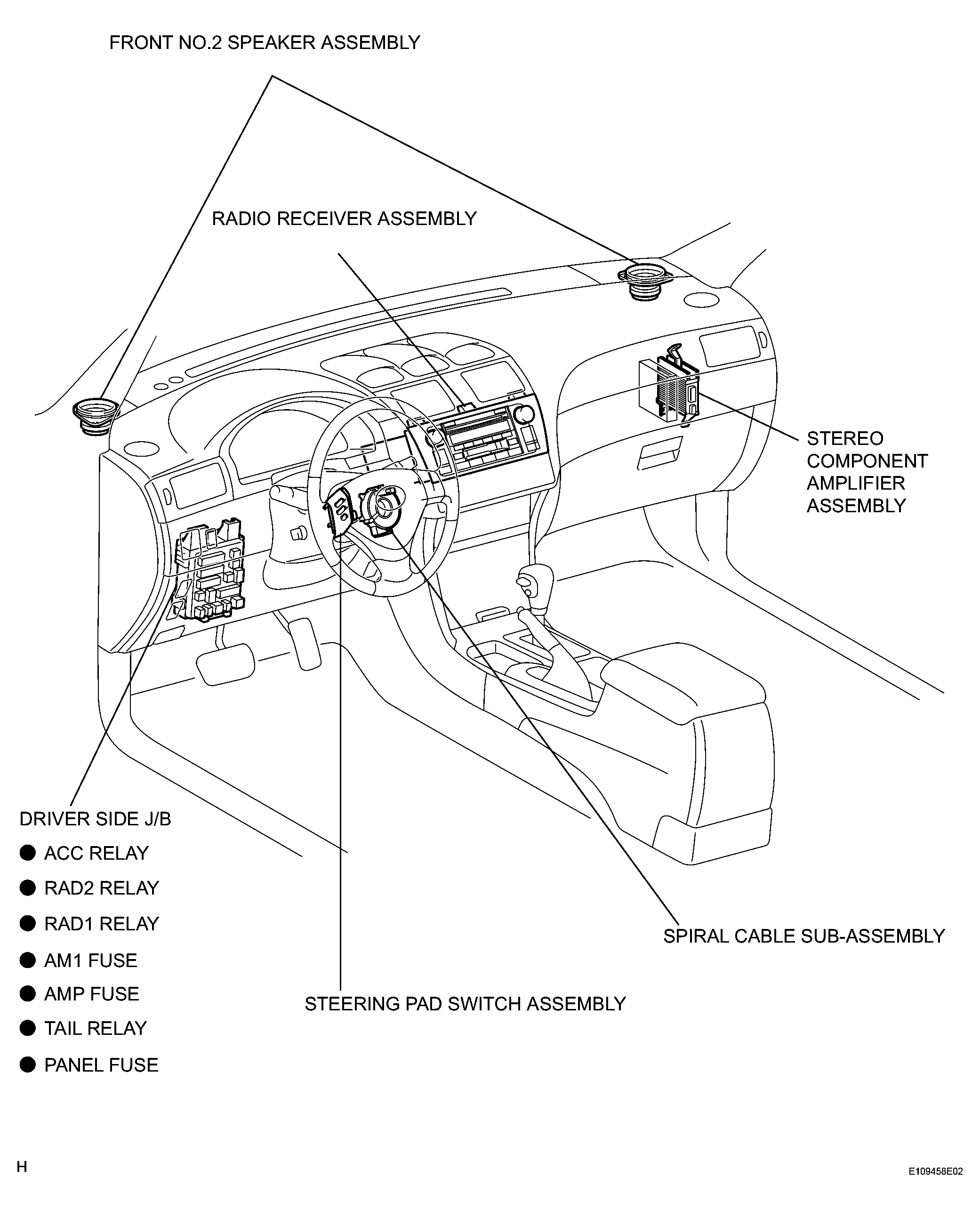

Fig 3: Locating Audio And Visual System Parts (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
