Monitor Result
Refer to CHECKING MONITOR STATUS for detailed information.
The test value and test limit information are described as shown in MID AND TID TEST VALUE DESCRIPTION . Check the monitor result and test values after performing the monitor drive pattern (Refer to "Confirmation Monitor").
- MID (Monitor Identification Data) is assigned to each emissions-related component.
- TID (Test Identification Data) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.

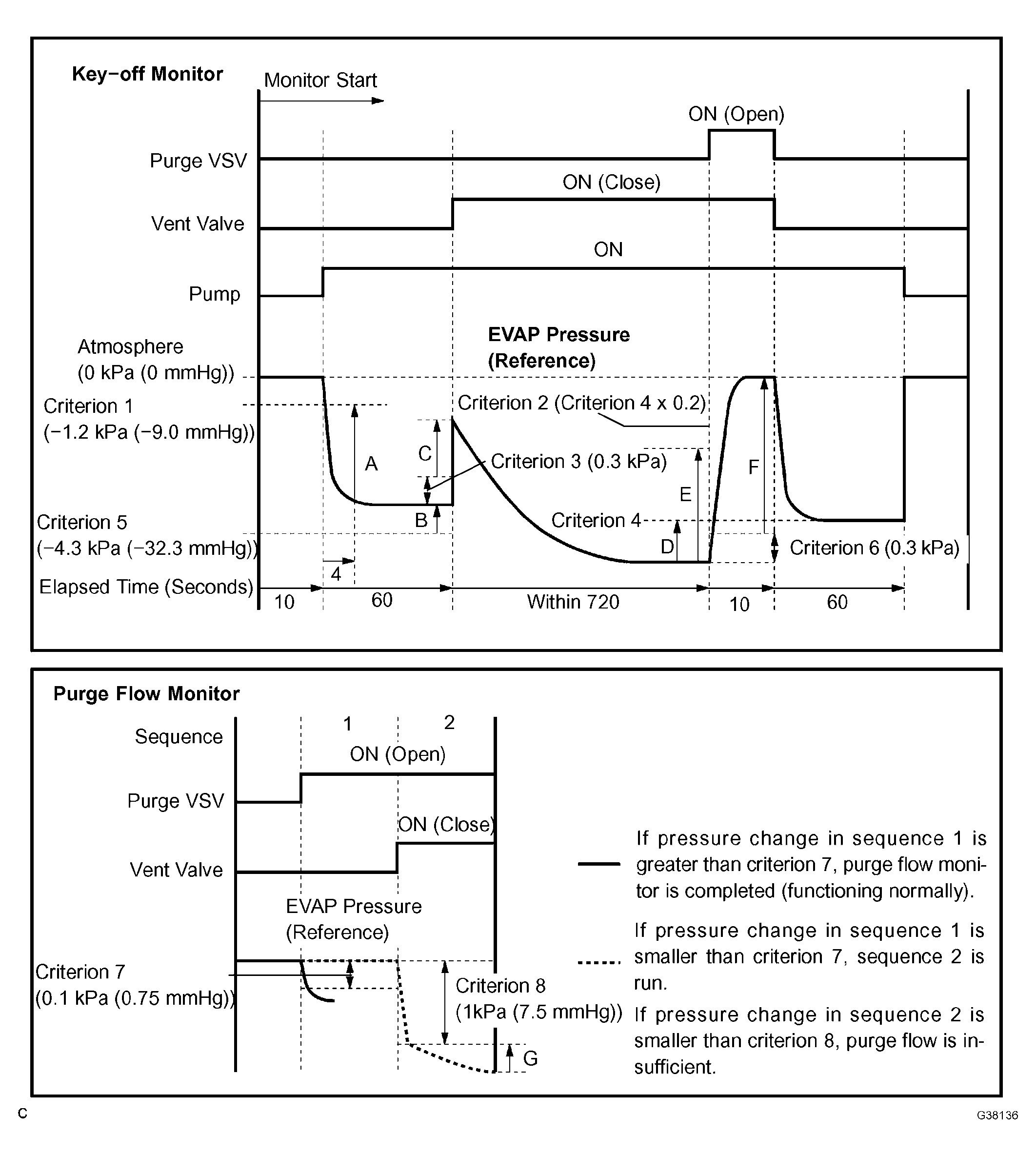

EVAP-Key-off monitor
MID AND TID TEST VALUE DESCRIPTION
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit | ||
|---|---|---|---|---|---|---|---|
| $3D | $C9 | Multiply by 0.01 (kPa) | Test value for small leak (P0456): Refer to pressure D(1). |
Minimum test limit for small leak | Maximum test limit for small leak | ||
| $3D | $CA | Multiply by 0.01 (kPa) | Test value for gross leak (P0455): Refer to pressure E(1). |
Minimum test limit for gross leak | Maximum test limit for gross leak | ||
| $3D | $CB | Multiply by 0.01 (kPa) | Test value for vacuum pump stuck OFF (P2401): Refer to pressure A(1). |
Minimum test limit for vacuum pump stuck OFF | Maximum test limit for vacuum pump stuck OFF | ||
| $3D | $CD | Multiply by 0.01 (kPa) | Test value for vacuum pump stuck ON (P2402): Refer to pressure A(1). |
Minimum test limit for vacuum pump stuck ON | Maximum test limit for vacuum pump stuck ON | ||
| $3D | $CE | Multiply by 0.01 (kPa) | Test value for vent valve stuck OFF (vent) (P2420): Refer to pressure C(1). |
Minimum test limit for vent valve stuck ON | Maximum test limit for vent valve stuck ON | ||
| $3D | $CF | Multiply by 0.01 (kPa) | Test value for vent valve stuck ON (closed) (P2419): Refer to pressure A(1). |
Minimum test limit for vent valve stuck OFF | Maximum test limit for vent valve stuck OFF | ||
| $3D | $D0 | Multiply by 0.01 (kPa) | Test value for 0.02 inch orifice low flow (P043E): Refer to pressure B(1). |
Minimum test limit for 0.02 inch orifice low flow | Maximum test limit for 0.02 inch orifice low flow | ||
| $3D | $D1 | Multiply by 0.01 (kPa) | Test value for 0.02 inch orifice high flow (P043F): Refer to pressure A(1). |
Minimum test limit for 0.02 inch orifice high flow | Maximum test limit for 0.02 inch orifice high flow | ||
| $3D | $D4 | Multiply by 0.01 (kPa) | Test value for purge VSV stuck close (P0441): Refer to pressure F(1). |
Minimum test limit for purge VSV stuck close | Maximum test limit for purge VSV stuck close | ||
| $3D | $D5 | Multiply by 0.01 (kPa) | Test value for purge VSV stuck open (P0441): Refer to pressure E(1). |
Minimum test limit for purge VSV stuck open | Maximum test limit for purge VSV stuck open | ||
| $3D | $D7 | Multiply by 0.01 (kPa) | Test value for purge flow (P0441): Refer to pressure G(1). |
Minimum test limit for purge flow | Maximum test limit for purge flow | ||
|
|||||||
Refer to CHECKING MONITOR STATUS for detailed information.
The test value and test limit information are described as shown in MID AND TID TEST VALUE DESCRIPTION . Check the monitor result and test values after performing the monitor drive pattern (refer to "Confirmation Monitor").
- MID (Monitor Identification Data) is assigned to each emissions-related component.
- TID (Test Identification Data) is assigned to each test value.
- Scaling is used to calculate the test value indicated on generic OBD II scan tools.

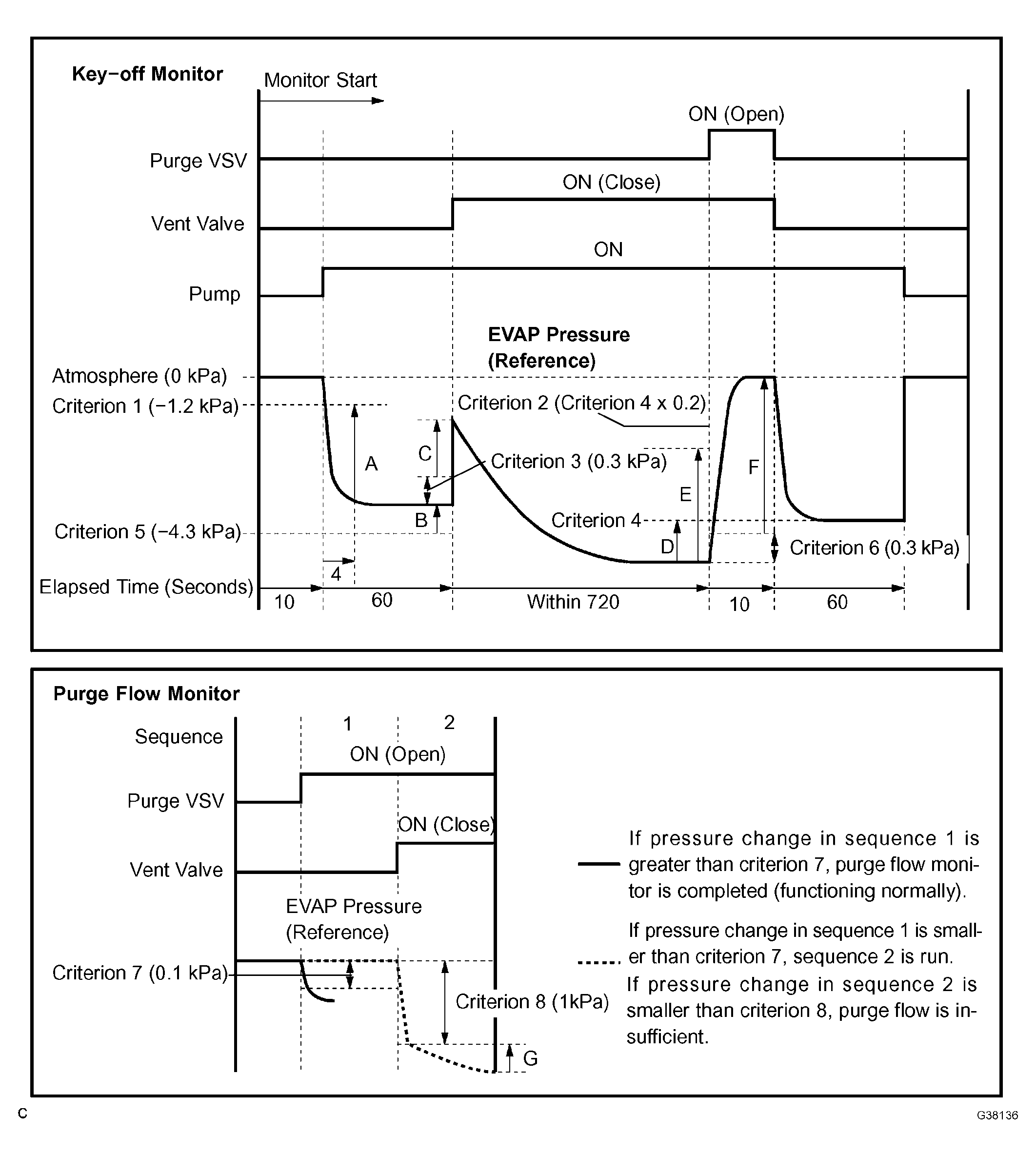

EVAP-Key-off monitor
MID AND TID TEST VALUE DESCRIPTION
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit | ||
|---|---|---|---|---|---|---|---|
| $3D | $C9 | Multiply by 0.01 (kPa) | Test value for small leak (P0456): Refer to pressure D(1). |
Minimum test limit for small leak | Maximum test limit for small leak | ||
| $3D | $CA | Multiply by 0.01 (kPa) | Test value for gross leak (P0455): Refer to pressure E(1). |
Minimum test limit for gross leak | Maximum test limit for gross leak | ||
| $3D | $CB | Multiply by 0.01 (kPa) | Test value for vacuum pump stuck OFF (P2401): Refer to pressure A(1). |
Minimum test limit for vacuum pump stuck OFF | Maximum test limit for vacuum pump stuck OFF | ||
| $3D | $CD | Multiply by 0.01 (kPa) | Test value for vacuum pump stuck ON (P2402): Refer to pressure A(1). |
Minimum test limit for vacuum pump stuck ON | Maximum test limit for vacuum pump stuck ON | ||
| $3D | $CE | Multiply by 0.01 (kPa) | Test value for vent valve stuck OFF (vent) (P2420): Refer to pressure C(1). |
Minimum test limit for vent valve stuck ON | Maximum test limit for vent valve stuck ON | ||
| $3D | $CF | Multiply by 0.01 (kPa) | Test value for vent valve stuck ON (closed) (P2419): Refer to pressure A(1). |
Minimum test limit for vent valve stuck OFF | Maximum test limit for vent valve stuck OFF | ||
| $3D | $D0 | Multiply by 0.01 (kPa) | Test value for 0.02 inch orifice low flow (P043E): Refer to pressure B(1). |
Minimum test limit for 0.02 inch orifice low flow | Maximum test limit for 0.02 inch orifice low flow | ||
| $3D | $D1 | Multiply by 0.01 (kPa) | Test value for 0.02 inch orifice high flow (P043F): Refer to pressure A(1). |
Minimum test limit for 0.02 inch orifice high flow | Maximum test limit for 0.02 inch orifice high flow | ||
| $3D | $D4 | Multiply by 0.01 (kPa) | Test value for purge VSV stuck close (P0441): Refer to pressure F(1). |
Minimum test limit for purge VSV stuck close | Maximum test limit for purge VSV stuck close | ||
| $3D | $D5 | Multiply by 0.01 (kPa) | Test value for purge VSV stuck open (P0441): Refer to pressure E(1). |
Minimum test limit for purge VSV stuck open | Maximum test limit for purge VSV stuck open | ||
| $3D | $D7 | Multiply by 0.01 (kPa) | Test value for purge flow (P0441): Refer to pressure G(1). |
Minimum test limit for purge flow | Maximum test limit for purge flow | ||
|
|||||||
