SST (Special Service Tools)

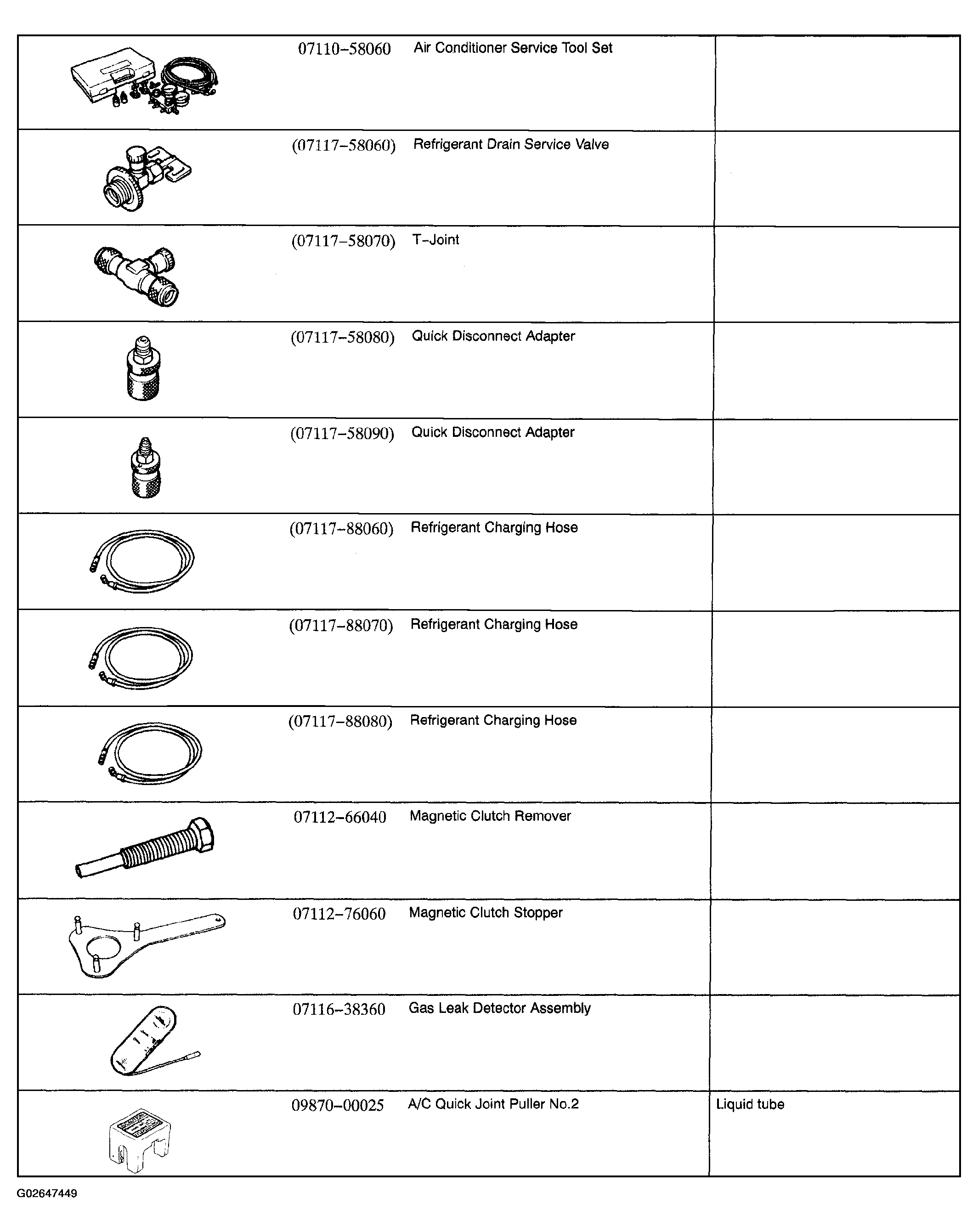

Fig 1: Special Service Tools Chart - Air Conditioning (1 Of 2)
G02647449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

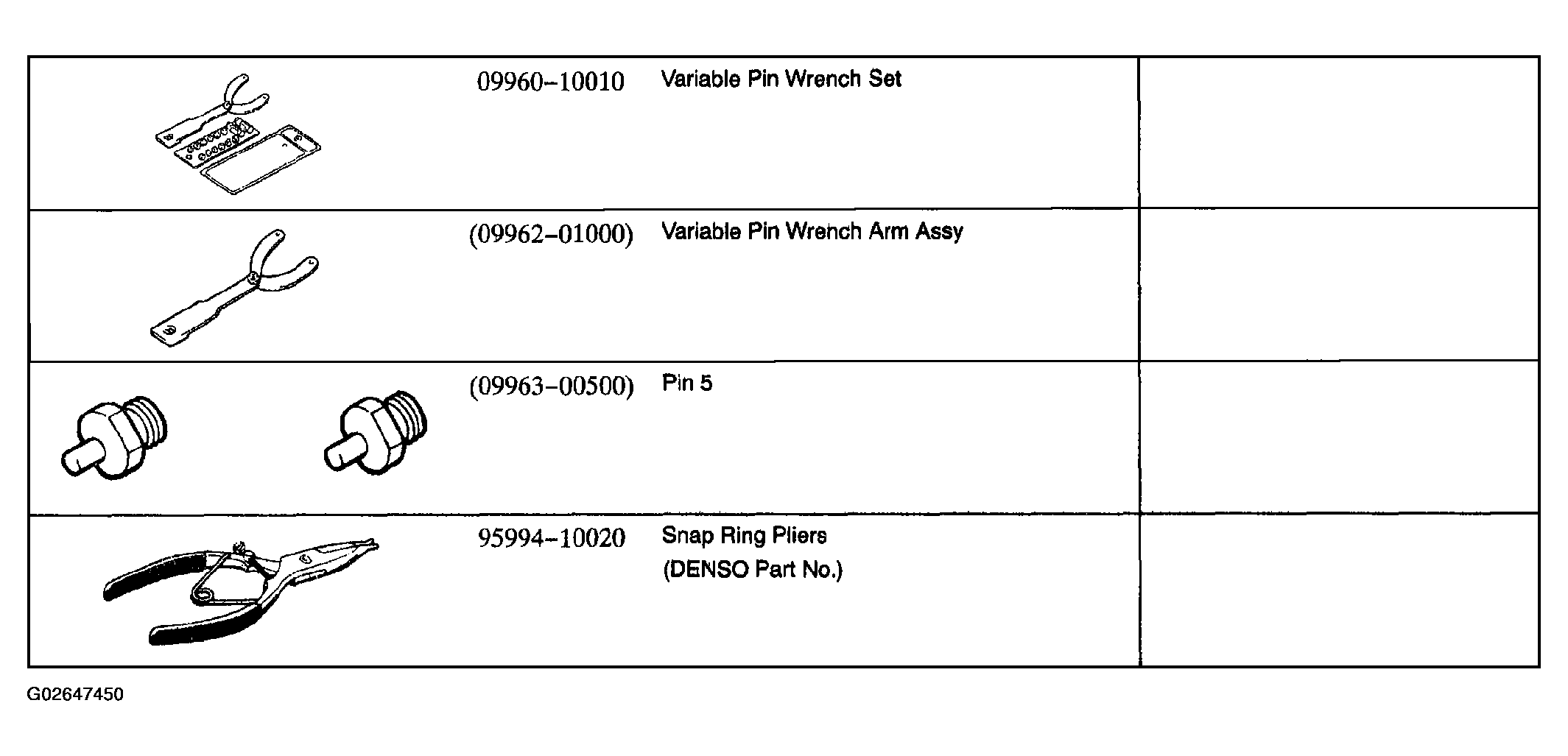

Fig 2: Special Service Tools Chart - Air Conditioning (2 Of 2)
G02647450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
