Home >> Toyota >> 2005 >> Tundra Base, 4.0 U, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System (Double Cab) >> Location

Power Window Control System (Double Cab): Location

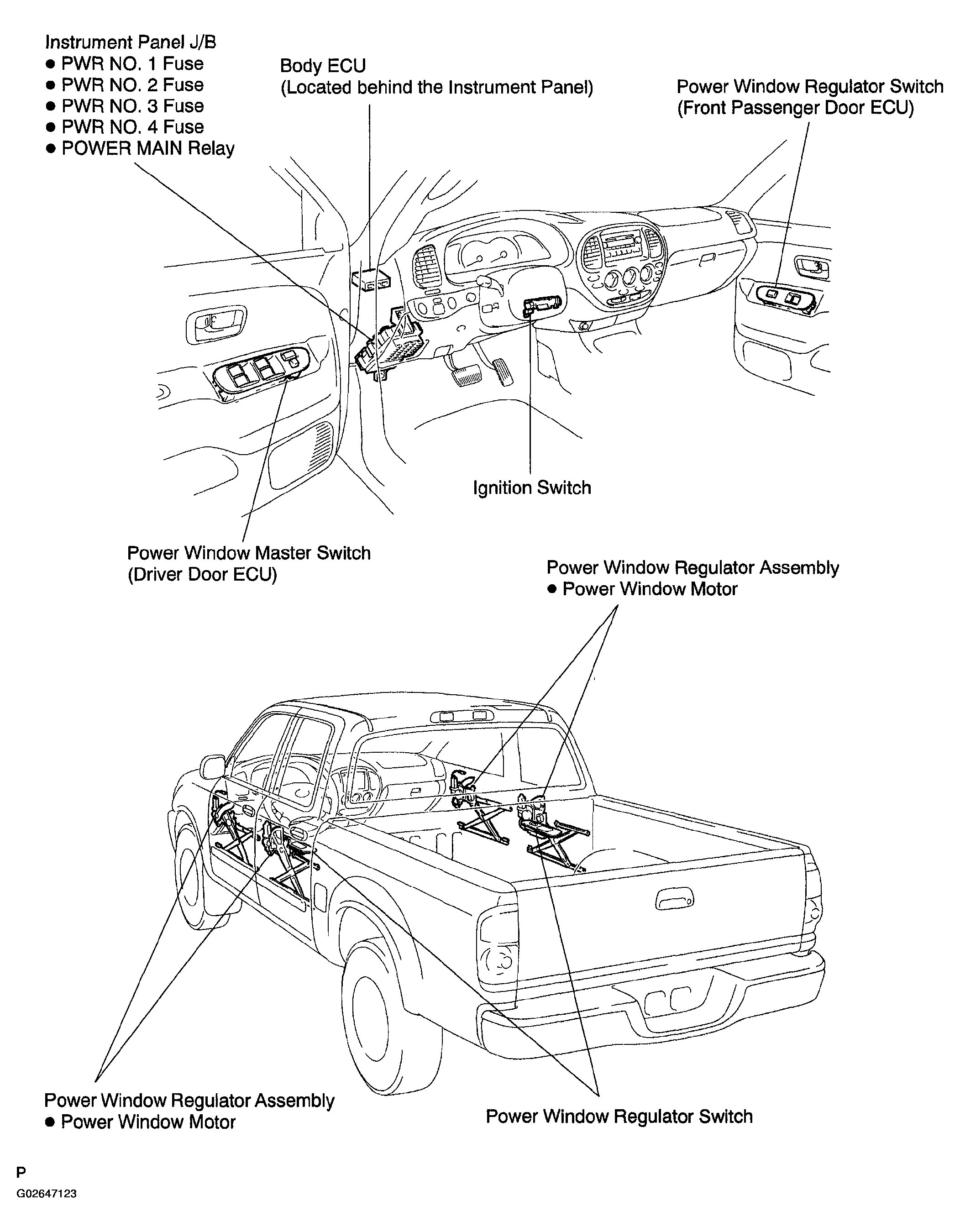

Fig 1: Locating Power Window Control System (Double Cab) Component

G02647123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
