System Diagram

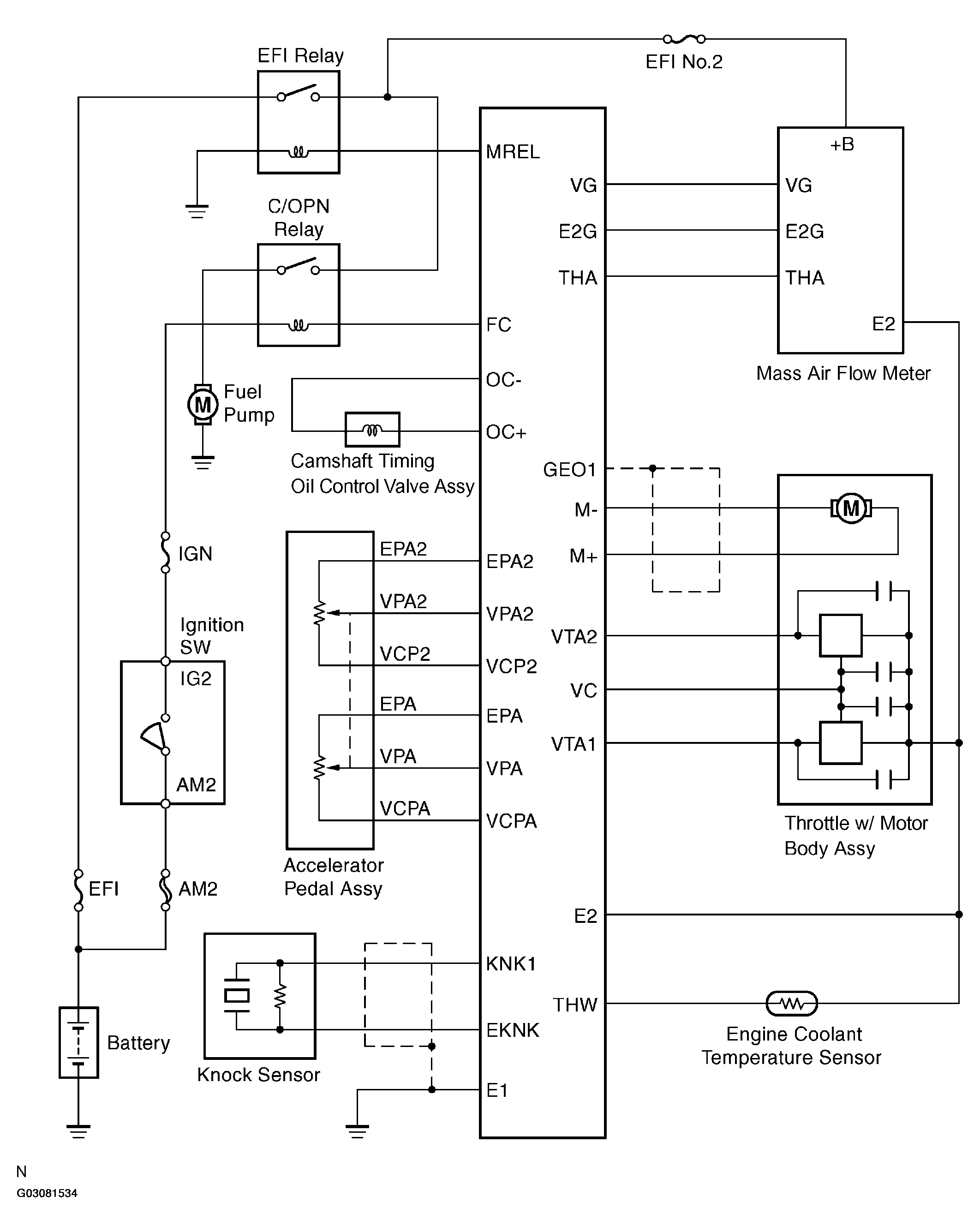

Fig 1: SFI System (2TR-FE) System Diagram (1 Of 2)
G03081534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

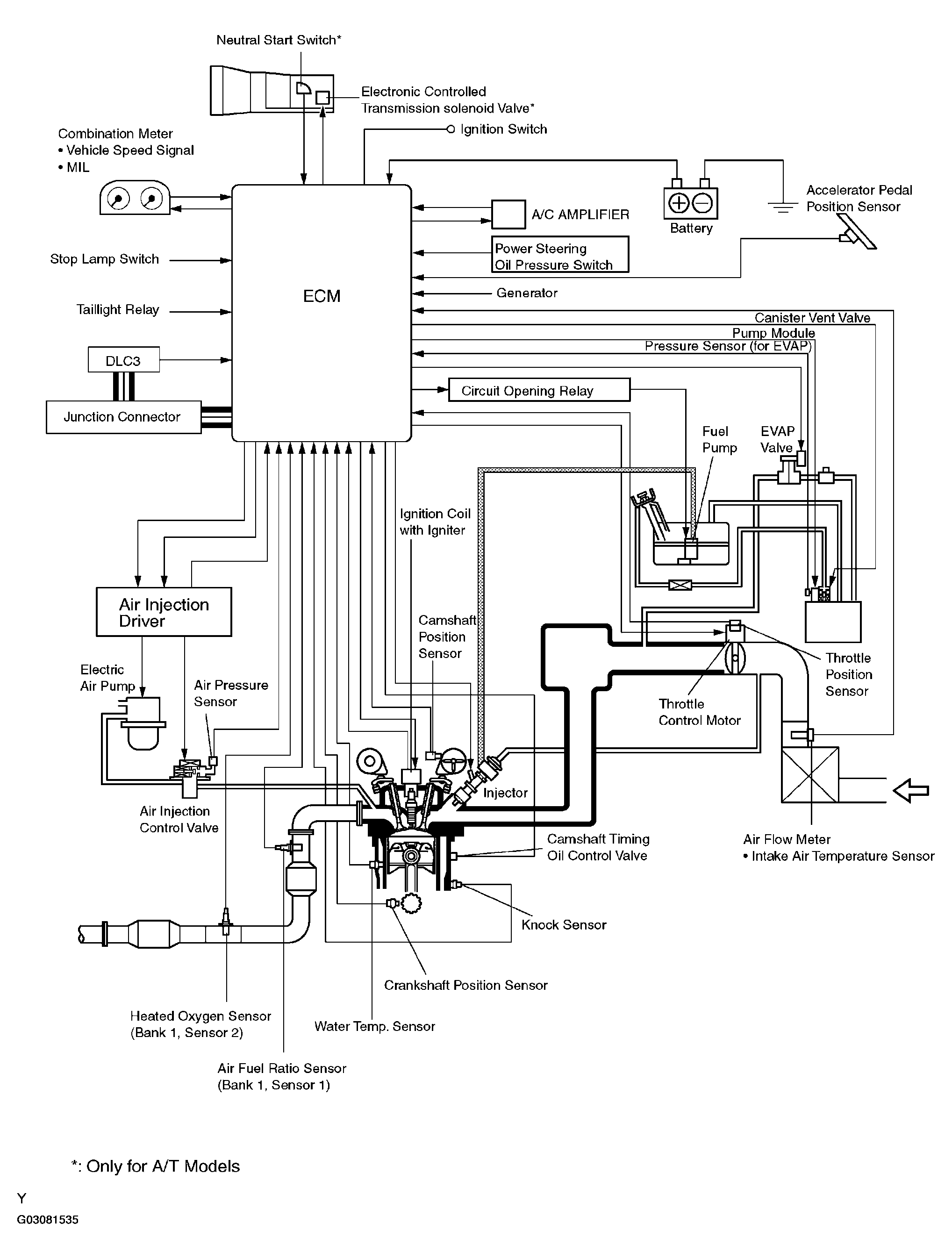

Fig 2: SFI System (2TR-FE) System Diagram (2 Of 2)
G03081535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
