Power Windows Do Not Operate At All: Wiring Diagram

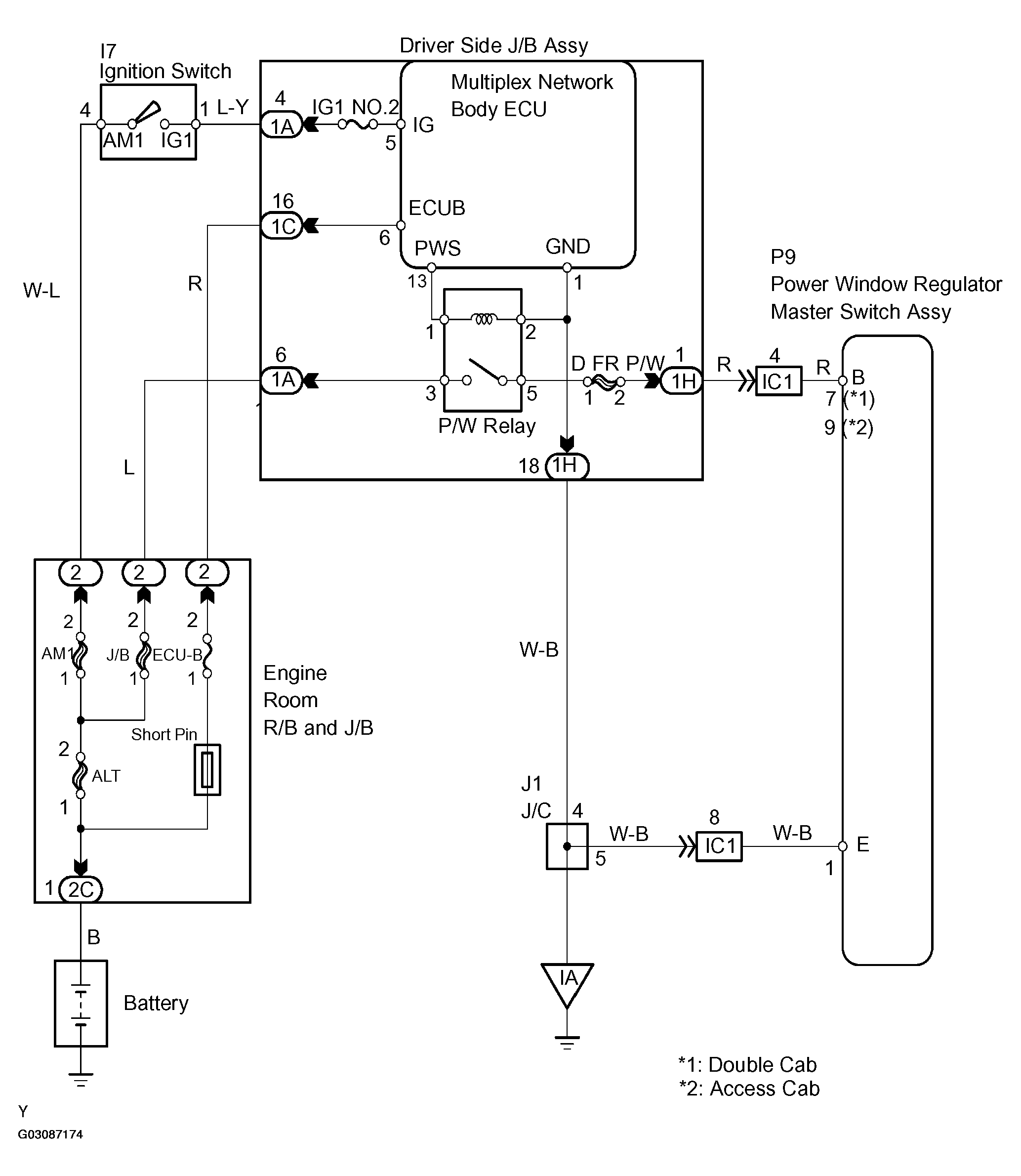

Fig 1: Power Windows Do Not Operate At All - Wiring Diagram

G03087174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
