Cruise Control Main Switch: Replacement

  1. PRECAUTION  (See PRECAUTION
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

  3. REMOVE STEERING WHEEL COVER LOWER NO. 2
  4. REMOVE STEERING WHEEL COVER LOWER NO. 3
  5. REMOVE HORN BUTTON ASSY  (See REPLACEMENT
  6. REMOVE CRUISE CONTROL MAIN SWITCH

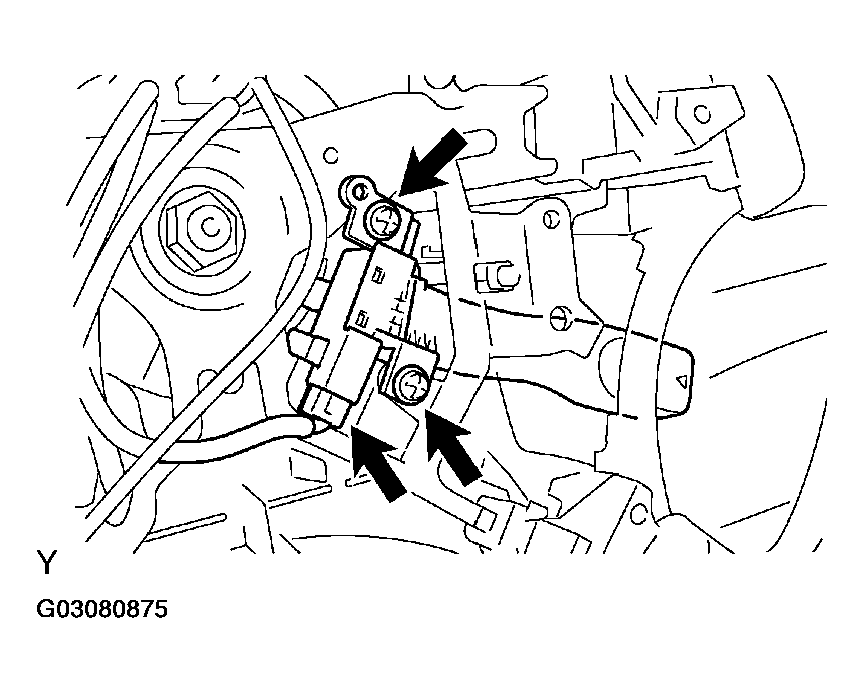

    Fig 1: Disconnecting Cruise Control Main Switch Connector
    G03080875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

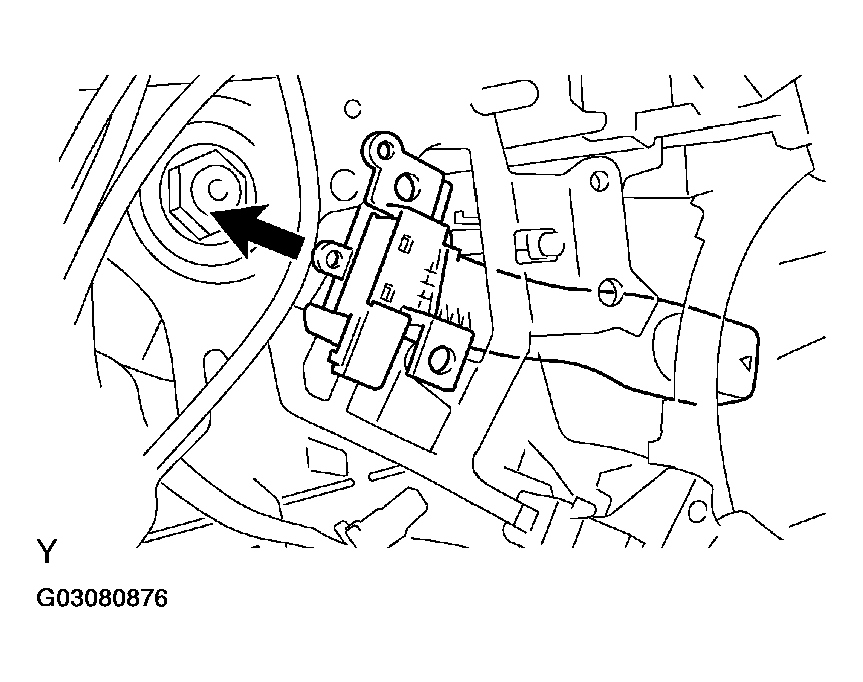

    Fig 2: Removing Cruise Control Main Switch From Steering Wheel
    G03080876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Installing Cruise Control Main Switch Connector
    G03080877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector and remove the 2 screws.
    2. Remove the cruise control main switch from the steering wheel.
  7. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Install the cruise control main switch with the 2 screws and connect the connector.
  8. INSTALL HORN BUTTON ASSY  (See HORN ASSY
  9. INSTALL STEERING WHEEL COVER LOWER NO. 3
  10. INSTALL STEERING WHEEL COVER LOWER NO. 2
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  (See PRECAUTION Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)
  12. INSPECT HORN BUTTON ASSY  (See REPLACEMENT
  13. INSPECT SRS WARNING LIGHT  (See DIAGNOSIS SYSTEM
