Cruise Control Main Switch: Components

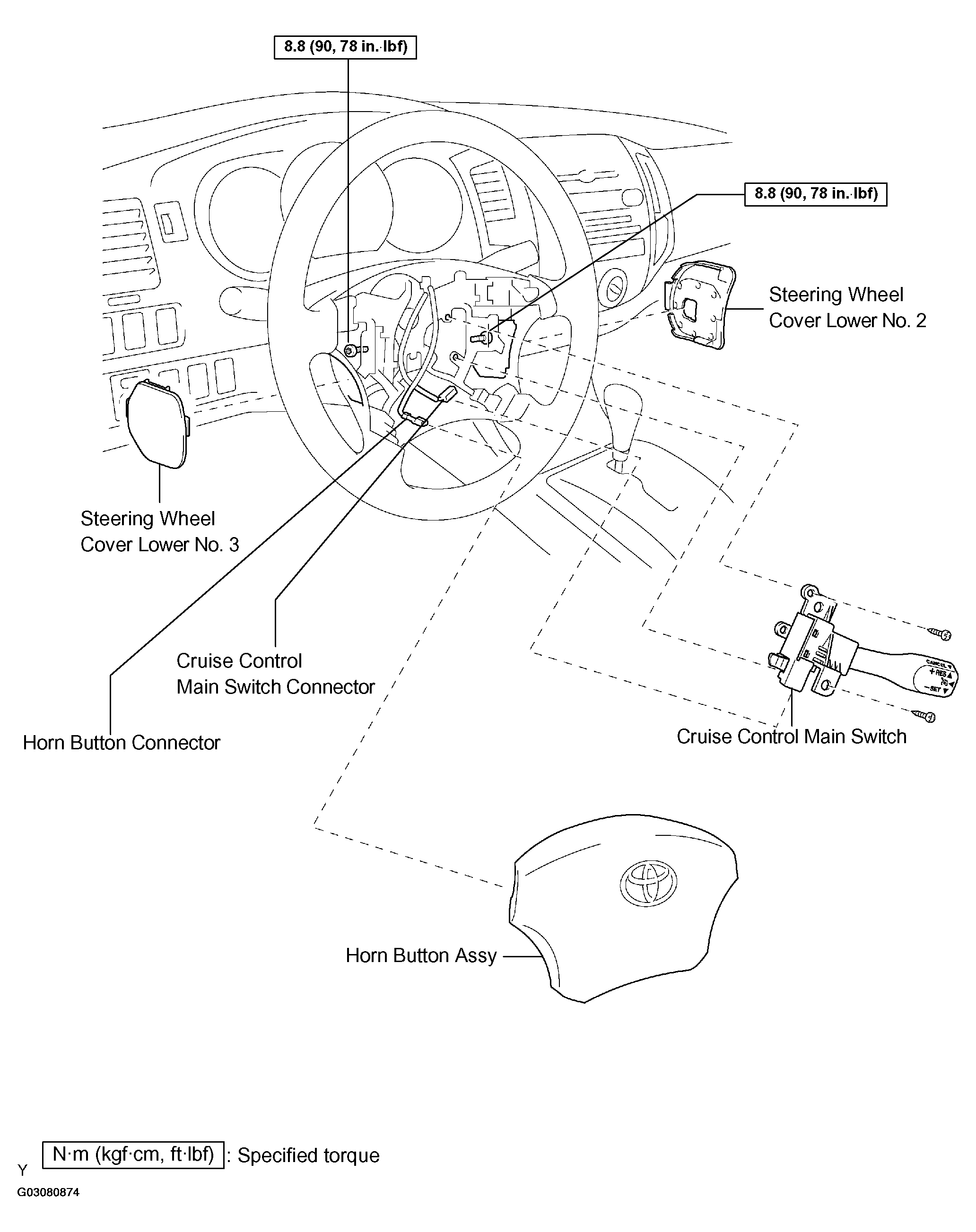

Fig 1: Identifying Cruise Control Main Switch Components

G03080874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
