Circuit Description

Refer to DTC P0115 .

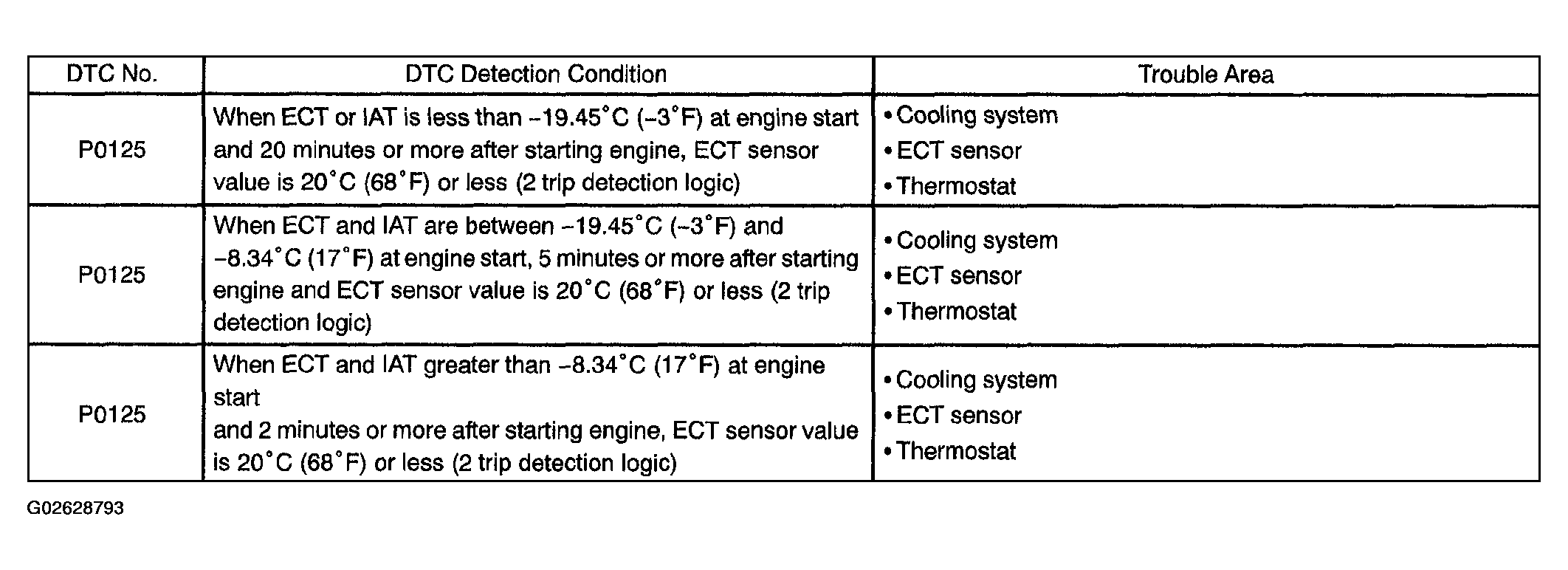

Fig 1: DTC Detecting Condition Table

G02628793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
