Problem Symptoms Table

HINT:

Use Fig 1 , with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps on the following (DTC No.).

1. FRONT POWER SEAT CONTROL SYSTEM

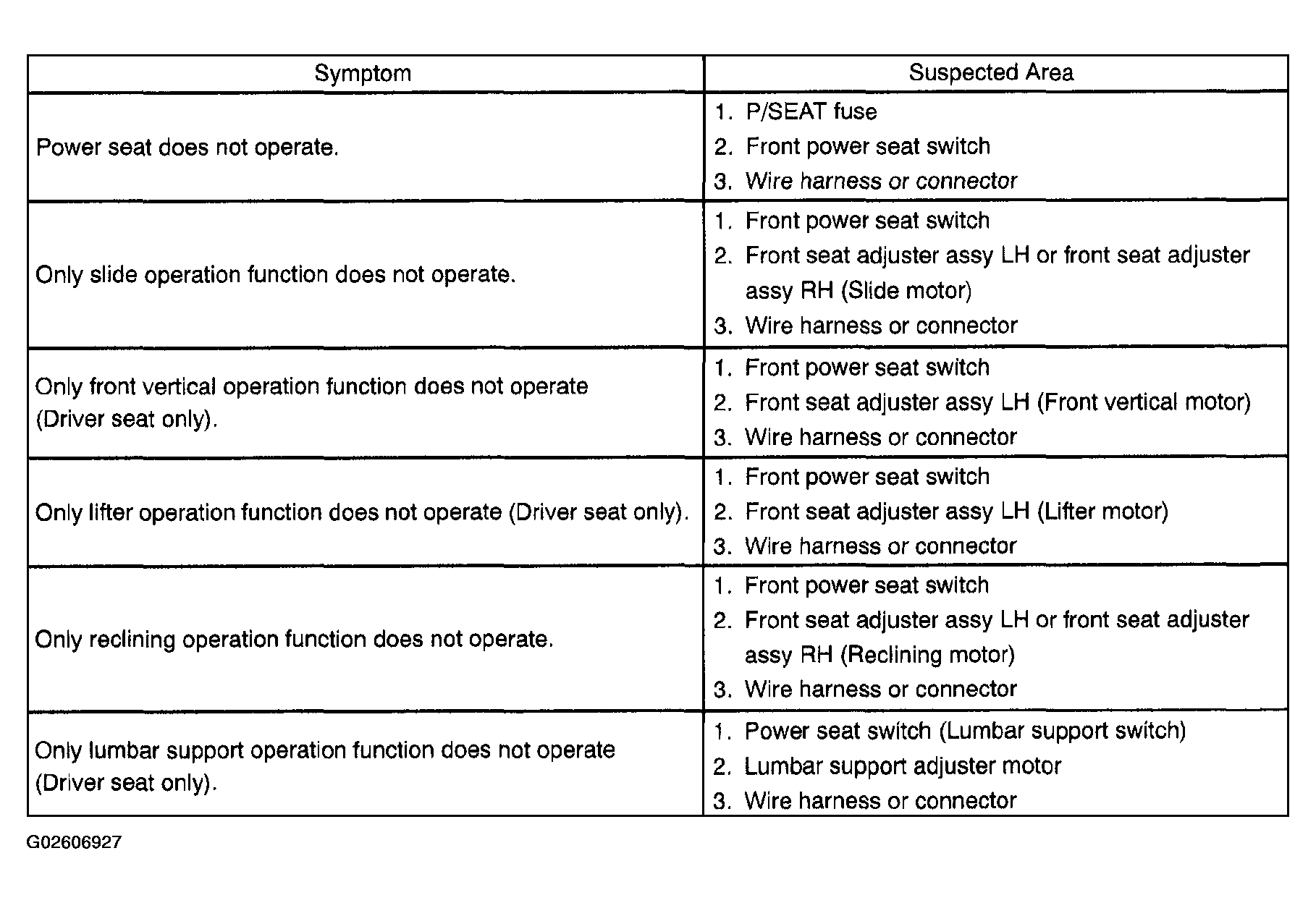

Fig 1: Front Power Seat Control Problem Systems Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
